- Page 1 取扱説明書 Magic Stove...
- Page 2 Please Read First Thank you for purchasing S'more products. To ensure safe use of the product, please read this instruction manual carefully before use. Please keep this manual in a safe place after reading it. Although every effort has been made to ensure the safety of the product, please check the assembly, handling method and accessories in a safe place before using the product in the field. If you do not understand the instructions or if the product is defective, stop using it immediately and contact us. Part Names & Contents Main body x 1 Chimney x 8 Carry bag×1 Doors & Handles×1 Top board×2 Side plate×2 20×12cm Ash board×1 Air intake×1 Top×1 Rig×1 Connecting Parts×2 frame×1...
- Page 3 Before use warning Serious life-threatening accidents may occur warning It may lead to injury or damage to the product. Handling Precautions warning Serious life-threatening accidents may occur This product is designed for outdoor use and must be used with ventilation inside the tent. Allow sufficient distance between the stove and the tent floor. Wear heat-resistant gloves when using the product. Please refrain from using the product in strong winds. Keep away from flammable and explosive materials. The heat resistant glass of the window is not impact resistant due to its properties.When storing, gloves or towels should be provided and kept away from the chimney to prevent damage. prevent damage. When using the top panel, do not cover the surface completely. Failure to do so may result in melting of the top panel. The melting point is 660°C. When using a pan larger than the baking pan, please remove it. Parents should not speak eye to eye when using with small children. If any abnormality is found in the product, discontinue use immediately. Use of the product as it is may result in unexpected injury or accident. Handling Precautions Notes It may lead to injury or damage to the product. Wear gloves for safety when assembling and storing. Applying excessive force to this product may cause damage. When used for the first time, there may be some deformation or burn marks, but this is a normal reaction. Aluminum alloy is used for the top plate, and distortion may occur due to its characteristics. Distortion due to heat will disappear after 3-4 uses Do not flush the inside of the furnace with water. Remove the ash before pouring, keep it ventilated and dry when storing it, and do not store it tightly when there is water droplets, etc.
-
Page 4: Assembly Method

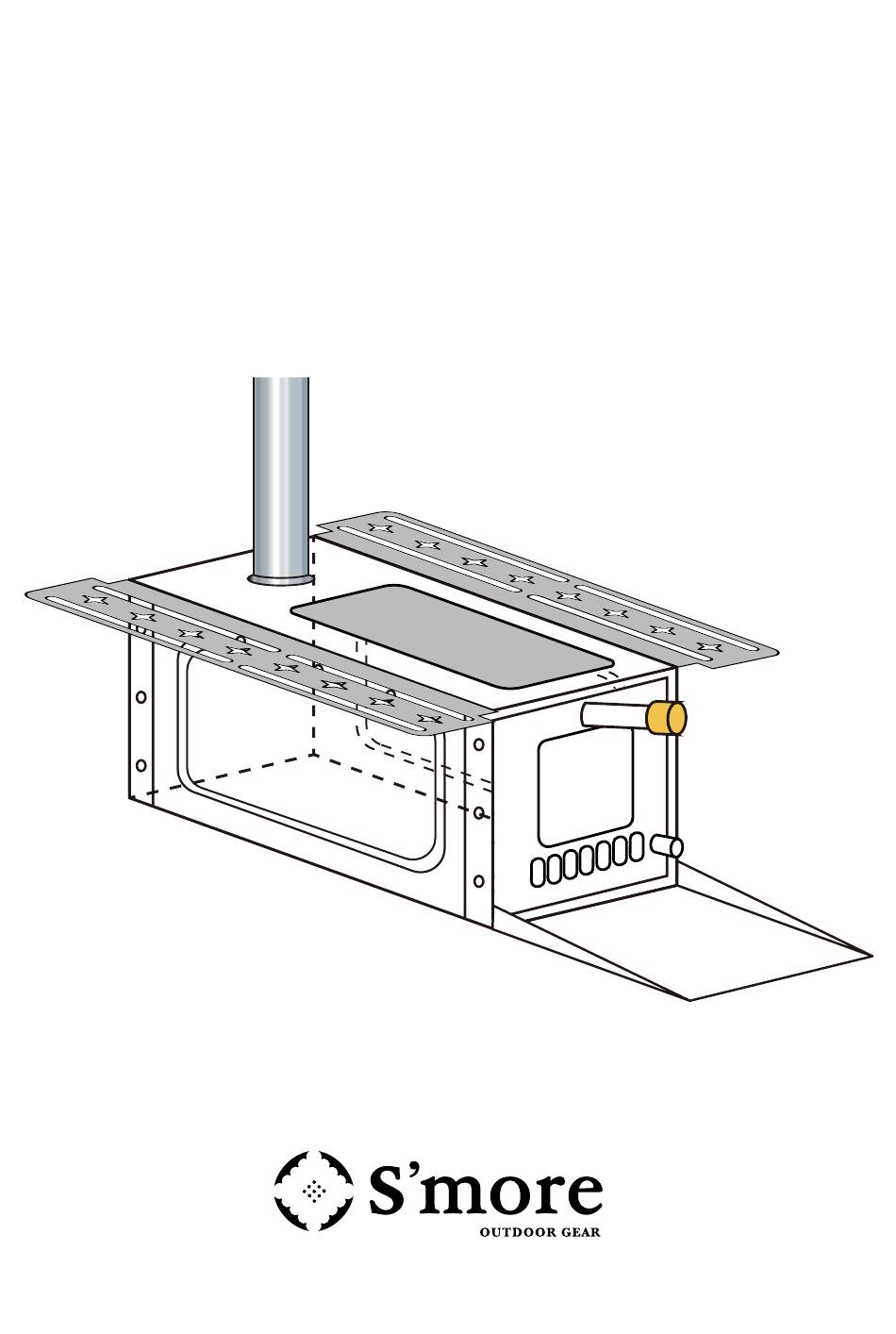

Assembly method spread your legs Spread the legs stored under the main unit install the air intake Fit the concave of the intake port into the convex of the main body install the door After attaching the handle, hang the door on the main body from above. Attach the side plate and ash removal plate Install the side plate on the left and right recesses and the ash removal plate on the bottom of the main unit. - Page 5 Assembly method install a tall chimney Fit in order from the chimney with thick protrusions Install a narrow chimney After installing the thick chimney, attach the connection parts Install the thin chimney in the same way attach the top After installing the chimney, connect parts at the tip and attach the top Attach the top panel Set either top plate according to the purpose You can also check how to assemble the chimney on YouTube. You can access it from this QR code.
- Page 6 Instructions how to put firewood Open the door and enter from the side air conditioning Let's adjust the air conditioning knob on the door Frame removal Remove the screws from the frame with a screwdriver and install the frame and glass plate together so that the frame is in front of the glass. The glass plate is designed to come off when the screws are removed, so be careful not to drop the glass plate and break it.
-
Page 7: Maintenance And Storage
Instructions Fall prevention ring ring Prevent the chimney from tipping over in the wind. Attach attach here to chimney and peg down with wire or other means. *If flammable guy ropes are directly attached to the ring, guy rope hole there is a possibility that the guy ropes will burn out. Be sure to use nonflammable wire or use nonflammable carabillas to connect the guy ropes. peg down Maintenance & Storage Storing the product in wet or dirty conditions may cause rusting, so please clean off any dirt and dry the product thoroughly before storing it. Please maintain and inspect the main unit and accessories before the next use. Spec Size： L39×W17.5×H15.9 Material: 304 stainless steel, 6031 aluminum alloy, 1200° C heat-resistant glass chimney size： Thick chimney diameter 6cm L30cm up to 157cm Thin chimney diameter 5cm L30cm weight: 6.2kg Contents: Main body x 1, chimney x 8, door & handle x 1, top plate x 2, side plate x 2, ash plate x 1, intake port x 1, top x 1, ring x 1, connection part x 2, frame x 1, bag x 1 お問い合わせ＆保証について Please check the QR code destination for details. S'more USA CVS Center 8620 Thornton Avenue, Newark, CA 94560 Mail : smorecvs@smorecamp.com Brand Site : www.smorecamp.com Follow us on instagram : @smore̲camp...
