Drok 200119 Manual

Highlights:
Wide voltage power supply (6~30V), supports micro USB 5.0V
power supply, easy to use
The interface is clear, simple, powerful and easy to understand,
can meet almost all your needs
With emergency stop function ("STOP" button) and reverse polarity
protection which can avoid burning by reverse connection
Adding sleeping mode, when the mode is enabled, if there is no
operation within 5 minutes, the display will be turned off
automatically, press any button will wake it up
You can set different parameters of OP, CL, LOP, which are
independent to each other and are stored separately
All the parameter settings will be stored automatically when power
is off
Operating Mode:
P1: Trigger signal, the relay is on "OP" time, and then disconnect
Within the "OP" time, proceed as follows:
P1.1: signal is triggered again, invalid
P1.2: signal is triggered again, re-clocking
P1.3: signal is triggered again, relay is disconnected, stop the clock
P-2: Trigger signal, after the "CL" time is off , the "OP" time is on.
When the timing is completed, the replay will be disconnected
P3.1: Trigger signal, after the "OP" time is on, the "CL" time is off,
then cycle the above actions. If trigger signal within the loop, the
relay will be disconnected and stop the clock. The number of cycles
("LOP") can be set
P3.2: No need to trigger the signal after powering up, the "OP" time
is on, the "CL" time is off, then cycle the above actions; The number
of cycles ("LOP") can be set
P-4: Signal holding function. If the signal is triggered, timing is
cleared, the relay remains on; when the signal disappears, the relay
will be off when the "OP" time is over; if another signal is triggered
during timing, timing will be cleared
Product Parameters:
Operating Voltage: 6~30V, support micro USB 5.0V power supply
Trigger Source: Active-high (3.0V~24V), have optocoupler isolation,
can improve the system's anti-jamming capability (customers can
also shorting common ground).
Output Capability: Can control the device within DC 30V 5A or
AC 220V 5A
Quiescent Current: 20mA
Operating Current: 50mA
Service Life: more than 10 million times
Working Temperature: -40~85 ℃
Dimension: 62×38×17mm
With optocoupler isolation, enhanced anti-jamming capability,
industrial grade board. The parameter setting will be stored forever
when power is off
Special Note: The output of the replay is passive contact, without
voltage output, just for controlling the on or off of a single circuit
Timing Range:
0.1 seconds (min.) to 999 minutes (max.) continuously
adjustable
How to choose the time range?
After setting the parameter values in the mode selection interface,
you can choose the timing range by short pressing "STOP" button
XXX. decimal point is in the units digit, timing range: 1 second to
999 seconds
XX. X decimal point is in the tens digit, timing range: 0.1 seconds
to 99.9 seconds
X. X. X. decimal all light on, timing range: 1 minute to 999 minutes
For example, if you want to set the "OP" time to 3.2 seconds, you
can move the decimal point to the place of tens digit, the digital
display 03.2
Parameter instruction:
"OP": On- time "CL": Off-time
"LOP": The number of cycles (1~999 times, "---" represents infinite
cycles)
These parameters are independent, but are shared by each mode.
For example, in P1.1 mode, the on-time "OP" is set 5 seconds. If
you switch to P1.2 mode, the "OP" time of P1.2 mode will be 5
seconds too
In the main interface (display 000), short press "SET" button, it will
display "OP" ("CL", "LOP") and the corresponding time XXX
If there is only "OP" time in some modes (such as the mode P1.1,
P1.2, P1.3), short press the "SET' button to display the "OP" and
the corresponding time only
There are "OP", "CL", "LOP" in some modes (such as the mode
P3.1, P3.2), short press "SET" button will display "OP" and the
corresponding time, "CL" and the corresponding time, "LOP" and
the corresponding number of times
After setting the mode, short press "SET" button can check all the
set parameters of the mode at present in the main interface , easy
and convenient
How to set parameters?
Determine the operating mode of the relay
The current operating mode (P1.1 mode in default) will flash when
the module is powered up. Then enter into main interface. In the
main interface, long press "SET" button for 2 seconds then release
to enter mode selection interface, short press "UP" or "DOWN"
button to select the mode (P1.1 ~ P-4) you need
After selecting the operating mode (e.g. P3.2), short press the
"SET" button to select the parameter to be set. The selected
parameter will flash ("OP" on-time, "CL" off-time, "LOP" cycle times
( "---" represents infinite cycles)), then you can adjust the values by
"UP", "DOWN" button to adjust the parameter value, support long
press (rapid increase or decrease) and short press (increase or
decrease one unit). After finishing adjusting, short press the
"STOP" button to select the position of the decimal point, select the
timing range (0.1 seconds to 999 minutes). Then short press the
"SET" button to enter to set the value of next parameters. Setting
procedure is the same as above
After setting the parameters, long press "SET" button for 2 seconds
then release, the name of the current mode will flash, and then
return to the main interface. Parameters setting is completed
The main interface: In the status that the relay is not working, the
main interface will display "000" (no decimal point); in the status
that the relay is working, there will be a decimal point
Mode selection interface: Long press "SET" button to enter into
the mode selection interface, after the setting is completed, long
press "SET" button to exit and return to the main screen
"STOP" button extensions:
Relays enable mode:
ON: Relay allows conduction in "OP" on-time
OFF: relay prohibits conduction and is always closed
In the main interface, short press the "STOP" button to switch
between ON and OFF, the current status will flash, and then return
to the main interface. (This is emergency stop function, turn off the
relay by one button)
Sleeping mode:
"C-P" sleeping mode: If there is no operation in 5 minutes, the
digital display will turn off automatically but the program will run as
usual
"O-d" normal mode: digital display always opens
Long press the "STOP" button for two seconds and then release to
switch the mode of "C-P" and "O-d", in which the current state of
flashes and then return to the main interface

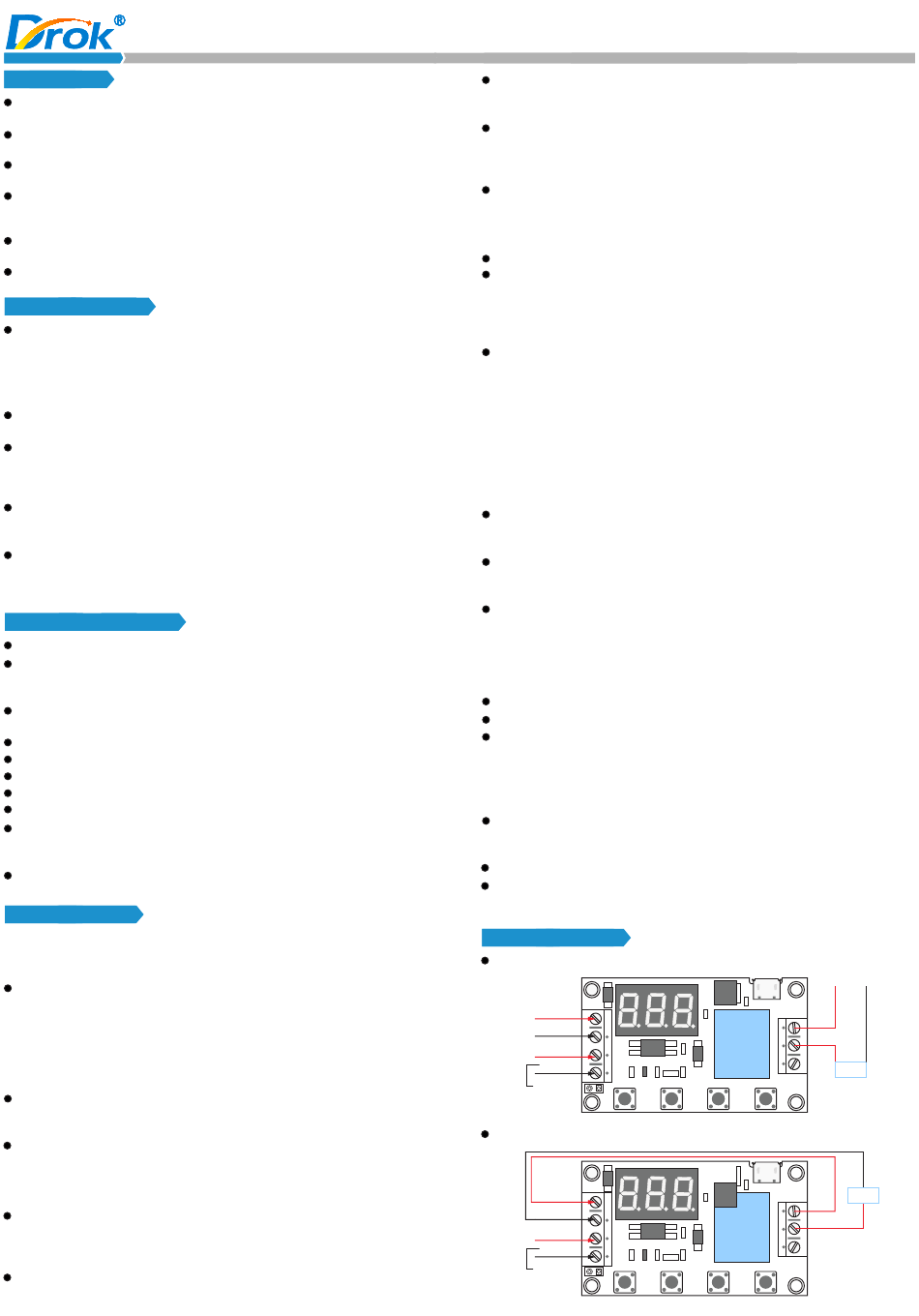

Wiring Diagram:
Weak control the strong electic wiring diagram
Input +
6.0-30V
Input -
Trigger
signal
30-24V
Share a power supply wiring diagram
Input +
6.0-30V
Input -
Trigger
signal
30-24V
SKU:200119
220V AC
Fire Zero
wire line
Load
Load
