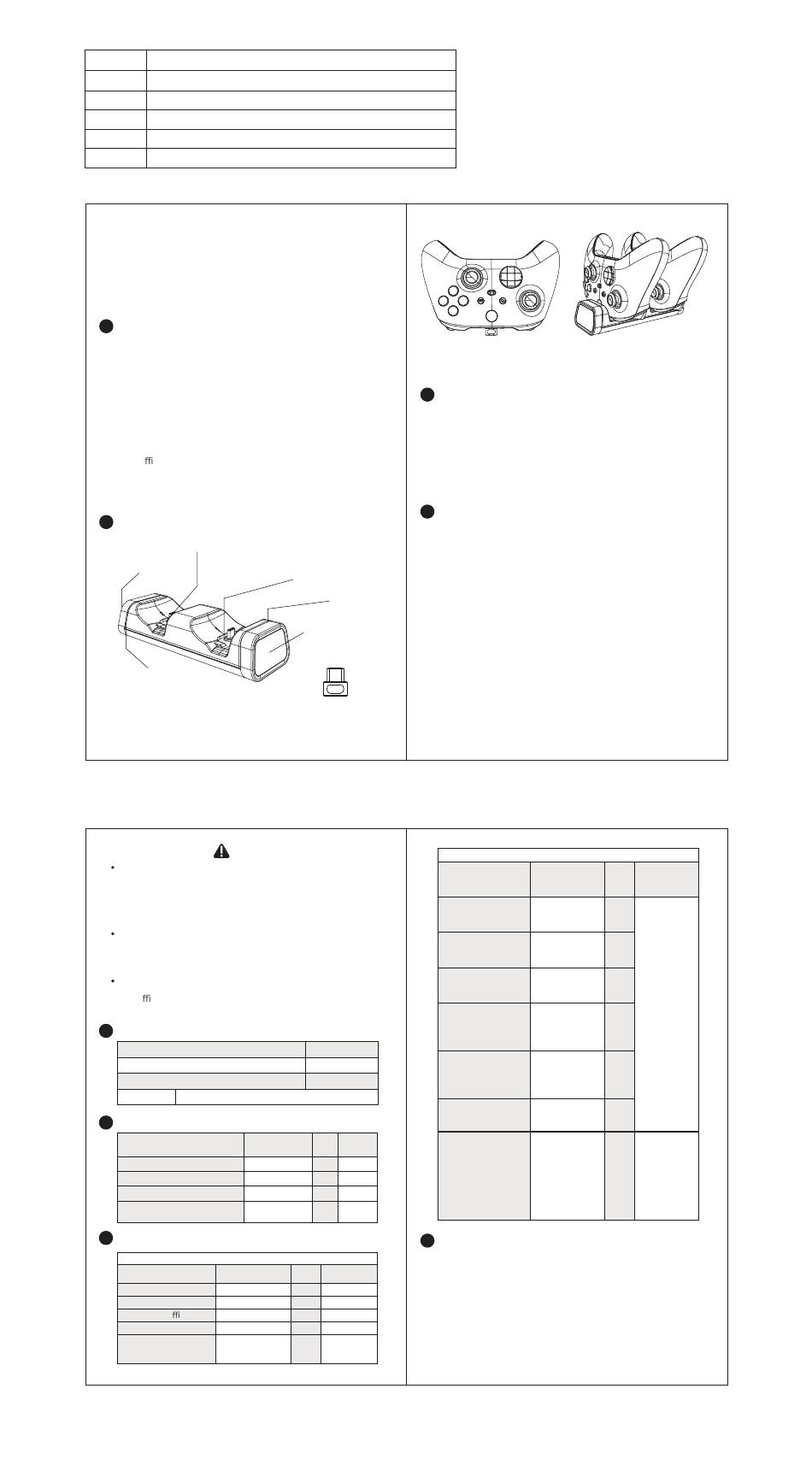

HEATFun TYX-0613 User Manual

名称： TYX-0613 说明书
材质： 100g书写纸
尺寸： 展开尺寸：150x130mm 成品尺寸：75x130mm
颜色： 单黑双面印刷，对折
设计师： 温宇姣 2020.10.09
版本号： KC TYX-0613 2010 V1
User Manual
Product No.: TYX-0613
Product Introduction:
1
The charging dock is compatible with controllers with Type-C
interface, such as PRO controller, Google cloud controller, X-B
ELITE 2 controller, X-series S/X controller, and P-5 controller. It can
charge two controllers simultaneously. The product is indicated
with red and green LED indicators. The controller pattern and the
two front and rear light-emitting rings at the front end turns red
during charging. When the controller is fully charged or no
controller is charged, the controller pattern and rings display
green. The product uses smart chip circuit design to achieve
high-e ciency conversion charging. It is of unique decorations,
beautiful appearance and simple to use, which is the must-have
for game players.
Product Function Diagram and Usage Diagram:
2
2# Controller charging slot
Micro input port
1# Controller charging slot
End light-emitting ring
Appearance patent number: 202030476504.7
NOTICE
3
3
For controllers that use lithium batteries, the battery will be
completely discharged if they are not charged for a long time.
The low current activation is required for the first 10 to 20
minutes of charging to enter the high current charging.
1
Therefore, when such controllers are used, the red breathing
indicator may not on during the first charging activation time
(about 10-20 minutes) until it is activated.
When the charge level of the controller reaches about 80% or
more, if you remove the controller and then plug it in, the
controller may not be charged due to the battery protection
function; you can continue to charge only after the battery level
of the controller is below 80%.
The 5V power adapter with current over 2A shall be used for
power supply. If the power supply power of the power adapter
is insu cient, the charging indicator may flash without charging,
in which case the power supply with larger power shall be used.
5 Electrical Specifications of the Product:
Rated input current of power supply
Rated input voltage of power supply
Charging current of controllers
Remarks The power input is MICRO USB interface
6 Environment Conditions:
Item
Working temperature
Storage temperature
Relative temperature
Heat-dissipating method
7 Electrical Property:
Input property
Technical
Item
parameters
Input voltage 5
Scope of input voltage 5.0-5.25
Conversion e ciency ≥80%
Rated input current ≤2
Maximum power
consumption of ≤0.1
standby
Version Number: A.3
Front light-emitting ring
Charging status
display window of left
& right controllers
Type-C Connector
2A
5V
Max. 700mA
Technical
Unit
Remarks
indicators
-10~45 °C
-40~70 °C
5%~90%
Natural air
cooling
Unit Remarks
Vdc MICRO USB
Vdc
A
W
Insert the Type-C connector
into the controller
3 3 Product Features:
1. The intelligent micro control technology is adopted n output
imanagement;
2. It can charge two controllers with Type-C interface simultaneously.
3. Two charging status indicators of red breathing indicator and
green lasting indicator are simple and easy to be understood;
4. Aesthetic appearance and convenient to be used;
5. Low power consumption in standby, energy saving
and environmental friendly.
4 Charging Process Instruction:
1. Use the USB to MICRO charging cable to connect the power
supply port. Supply power with a DC 5V 2A USB power supply
or a universal USB interface for charging. Connect the power
supply to charging cable before charging.
2. Switching on the power, the red and green indicators will flash
once respectively. If there is any controller on the charging dock
for charging, the controller pattern will display red. If not or the
controller is fully charged, it will display green.
3. As shown in the "Product Function Diagram and Usage Diagram"
above, if the controller being charged is a built-in battery controller.
Insert the Type-C connector into the Type-C interface of controller,
and then put the controller on the charging slot for charging;
if it is equipped with an external replaceable battery, first install
the battery into the controller, and then insert the Type-C
connector into the controller, and finally put the controller on
the charging slot for charging.
4. The front and rear light-emitting rings will also display red
breathing lamp and green lasting lamp during charging. When
the controller is charging, it is red; when the controller is fully
charged or no controller is charged, it is green.
Output property
Charging
Testing Item current of
controllers
400~450
Pro controller (built-in
battery)
400~450
Google cloud
(built-in
controller
battery)
400~450
XBOX ELITE 2
(built-in
controller
battery)
250~300
(original
Xbox s x controller
battery test
parameters)
250~300
(original
Xbox s s controller
battery test
parameters)
500~550
PS5 controller (built-in
battery)
Charging duration 4H~4.5H
8 Matters Needing Attention:
3
1. The power adapter should be unplugged when the controller is
fully charged or the product is not in use.
2. This product cannot be used and stored in humid environment.
3. This product should be kept out of dusts and heavy loads to
guarantee its service life.
4. Please do not use the product which is soaked, crashed or broken
and with electrical performance problems caused by improper use.
5. Do not use external heating equipment such as microwave ovens
for drying.
6. If it is damaged, please send it to the maintenance department
for repair. Do not disassembly it by yourself.
7. Keep this product away from children.
Put the controller on the
charging dock for charging
Unit Remarks
mA
The
charging
current of
mA
the built-in
battery
controller
is different,
mA
which is
determined
by the
controller
mA
itself; the
charging
current of
the external
battery
mA
controller is
determined
by the
battery itself.
mA
For
reference
only, the
charging
H
duration of
different
controllers
may vary.
