Summary of Contents for CableCreation CD0809
- Page 1 CableCreation CD0809 User Manual...
- Page 2 CableCreation CD0809 user manual Contents 1.0 INTRODUCTION ......... 1 2.0 FEATURES ..........1 3.0 SPECIFICATIONS ........1 4.0 PACKAGE CONTENTS ........3 5.0 CONNECTION DIAGRAM ......3 6.0 ADDITIONAL INFORMATION ......4...
-
Page 3: Specifications

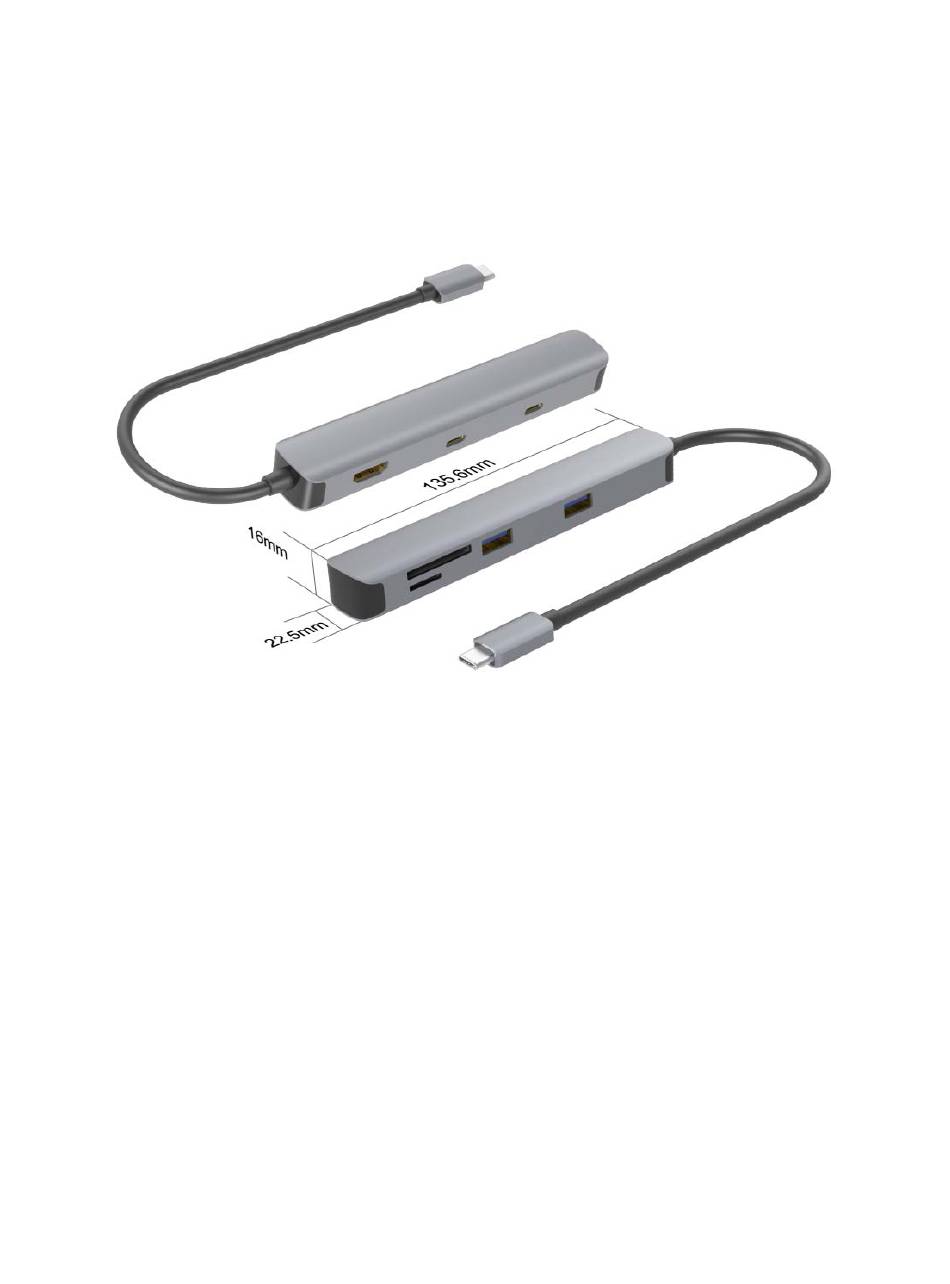

CableCreation CD0809 user manual DEAR CUSTOMER Thank you for purchasing this product. To ensure optical performance and safety, please carefully read these instructions before connecting, operating, or using this product. We recommend keeping this manual for future reference. 1.0 INTRODUCTION This is a USB C hub that can be plugged into a Type-C or Thunderbolt 3/4 port on your computer or phone, and it will give you access to a range of additional ports. - Page 4 CableCreation CD0809 user manual Support HDMI max 4k/60Hz Support High Dynamic Range(HDR) Support multiple color formats: RGB; YCbCr4:4:4; YCbCr4:2:2; YCbCr4:2:0；8/10/12/16 bpc; Support HPD Support HDCP2.3 , HDCP2.2 and HDCP1.4 Type-C Datax1(close to HDMI) Max 5Gbps data transmission ...
-
Page 5: Package Contents
CableCreation CD0809 user manual USB-C PD Charging Port 100W(20V/5A) Regulatory Approvals Certifications FCC,CE Accessory User Manual English Version 4.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure that the following items are contained in the shipping carton: ... - Page 6 CableCreation CD0809 user manual compatible with lower resolutions such as 4K at 30Hz, 2K at 60Hz, and 1080p at 60Hz. However, some monitor manufacturers may not support the 2K resolution option even though they support 4K resolution. In such cases, we recommend seeking technical support from the monitor manufacturer.
- Page 7 CableCreation CD0809 user manual 6.3 Charging Issues.: 6.3.1. While it is possible to charge an iPhone or Android phone using the USB 3.0 interface, please note that the USB ports are primarily intended for data transmission and may not support charging high‐power phones. 6.3.2. We highly recommend using a 100W PD (Power Delivery) charger to ensure optimal performance of the hub, with 90W being used to charge the connected laptop and 10W to power the hub. If you plan to use the charging function for other devices such as iPads or Samsung cell phones, we suggest using a PD charger with a power output of more than 30W for best results. 6.4 USB‐A issues: 6.4.1. Portable drive Please note that due to power output limitations of certain laptops, we advise that you connect only one hard drive or SSD at a time to ensure optimal performance 6.4.2. Wireless mouse, keyboard, wifi issues Please be aware that the use of USB 3.0 devices may cause interference with 2.4GHz WiFi and other wireless devices due to similar frequencies. Intel has stated that this issue only affects the 2.4GHz wireless band and not the 5GHz band. To avoid this ...
- Page 8 CableCreation CD0809 user manual It's important to note that you cannot connect a USB‐C to HDMI adapter to the Type‐C data port on this product in order to connect an additional external display. The Type‐C data port is designed for data transfer only and does not support video output. 6.7 HDR issues. This product supports HDR function, but please keep in mind that in order to use ...
