Summary of Contents for pasapair ZHQ2566-RM-S

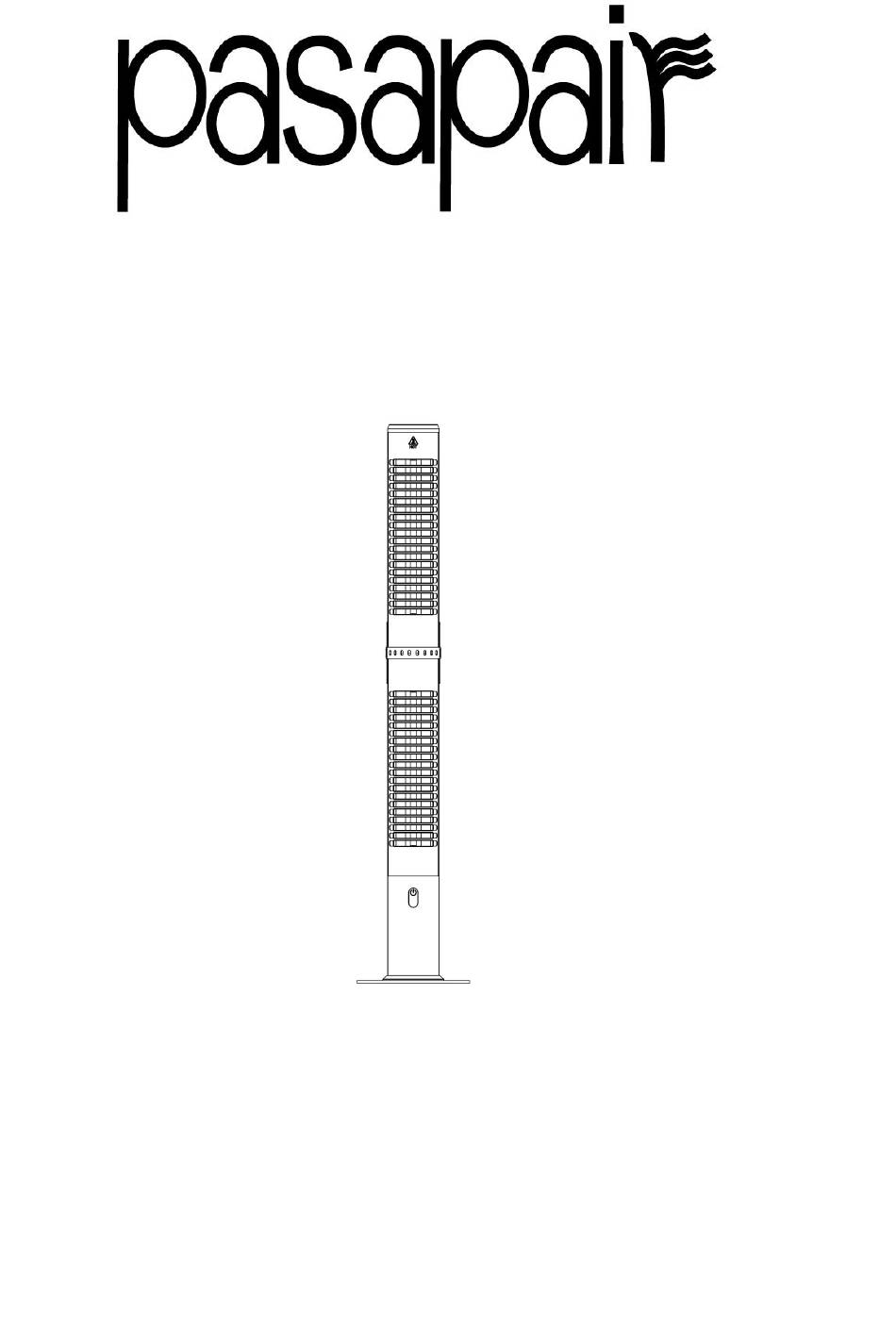

- Page 1 Instruction Manual Electric Patio Heater Brand:pasapair Model No.: ZHQ2566-RM-S Power Supply: AC 120V/60Hz 1500W PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THE APPLIANCE...
-
Page 2: Table Of Contents
CONTENTS WARNING ......................2 IMPORTANT INSTRUCTIONS................3 ACCESSORIES....................6 INSTALLATION INSTRUCTIONS...............7 OPERATING INSTRUCTIONS................9 MAINTENANCE....................11 TROUBLE SHOOTING..................11 TECHNICAL SPECIFICATION................12 GROUNDING......................12 WARRANTY......................13... -
Page 3: Warning
WARNING This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Children of less than 3 years should be kept away unless continuously supervised Children should be supervised to ensure that they do not play with... -
Page 4: Important Instructions
CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. IMPORTANT INSTRUCTIONS When using this electric unit, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. - Page 5 repair the heater yourself. 8. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. 9. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear.
- Page 6 a bed, where openings may become blocked. 17. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames. 18.
-
Page 7: Accessories
28. The fireguard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use. 29. The fireguard does not give full protection for young children and for infirm persons 30. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Heater must be installed by a qualified electrician. Minimum required distances: a) 50cm from the side wall b) At least 50cm from the ceiling... - Page 9 Follow the below steps to install the heater Step 1: Fix the Heater Pole on the base by using the provided 3PCS of M4 *14mm screws. Step 2: Please fixed the product on a suitable ground, place the 3 fixing pieces on the chassis and draw the drilling position. Remove the product, drill 3 holes for the explosion screws, fasten the explosion screws and fix the product with the explosion screws.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS WANRING: The heater must be properly installed before it is used This unit is equipped with one heat setting On I Off. Plug the Patio Heater into a grounded 120V 60Hz power outlet. Press on the On/Off switch to the "I" position to activate the heater. - Page 11 The remote control Warning! Please remove the PE bag before using! Please take down the insulation sheet before use the Remote Control. The battery model of Remote Control is Lithium Cell CR2450. 1) Press the upper button, it’s 750W for the upper heating element upper;...
-
Page 12: Maintenance
MAINTENANCE Unplug the unit and let it cool completely. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. ... -
Page 13: Technical Specification
TECHNICAL SPECIFICATION Power supply 120V~ 60Hz Wattage 1500W Insulation class Gross product weight 4.7kg/10.4lb Product size 22*22*110 cm Protection class IP55 GROUNDING This product is for use on a nominal 120V circuit with a grounding plug that looks like the plug illustrated below. Make sure that the product is connected to an outlet having the same configuration as the plug. -
Page 14: Warranty
WARRANTY Thank you for choosing PASAPAIR product. We sincerely hope that you are satisfied with it. The manufacturer's warranty covers the product for a period of 12 months from the date of purchase against manufacturing faults. All warranties are automatically kept track of in our system, so there is no need to register your product.
