Summary of Contents for TOPSKY TV01.01

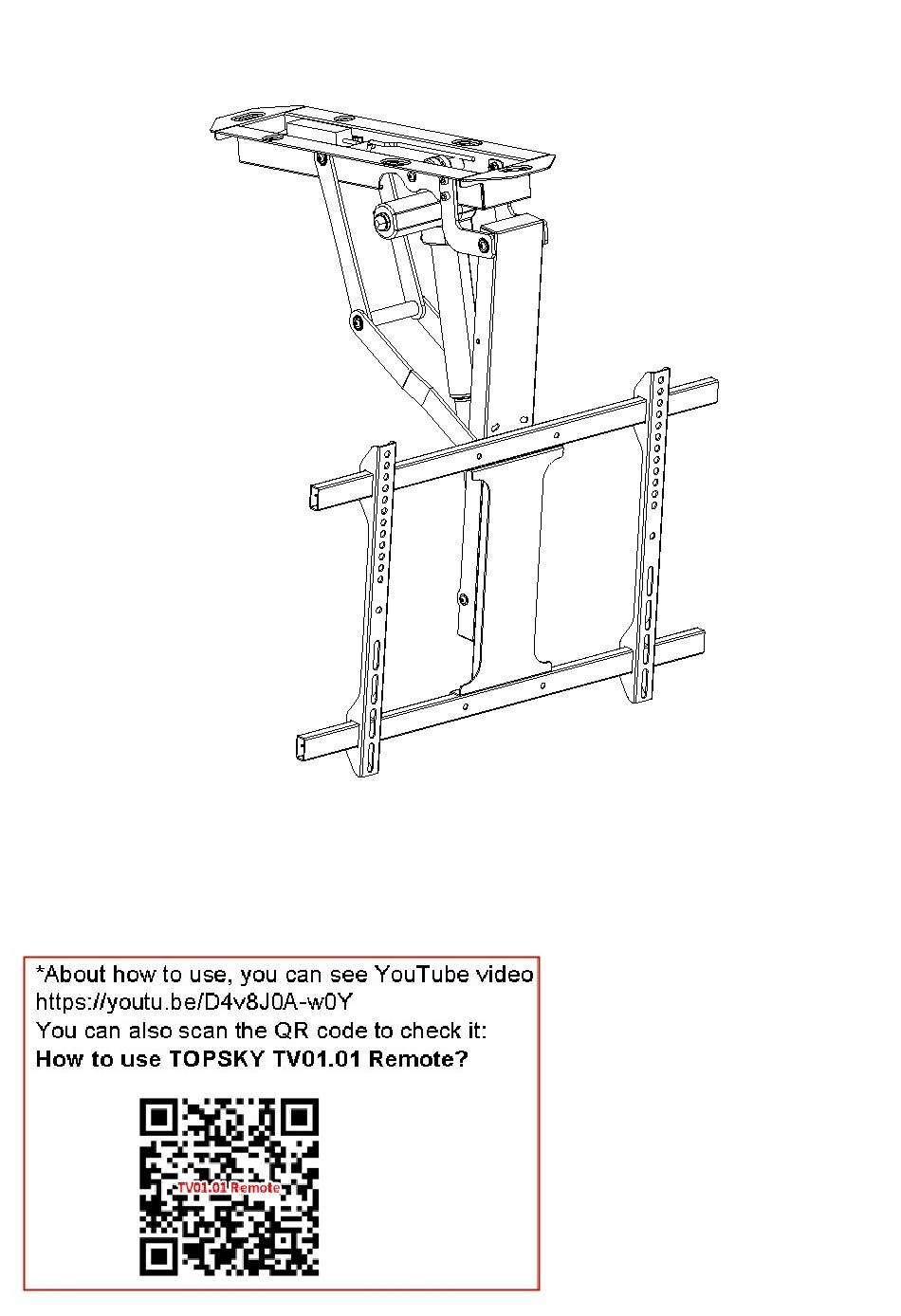

- Page 1 ※Please complete the code paring between receiver and remote control before assembling the TV mount to the ceiling. TOPSKY TV01.01 Electric Height Adjustable TV Stand...
-
Page 3: Warranty
If you ever have any inquiry's regarding whether or not your product is still under warranty/ how to buy extra part, paid service Just search and contact TOPSKY service team or call us. - Page 4 Caution Keep children and pets away from the electric height-adjustable desk during the operation. Unplug the power cord during a thunderstorm or if you do not intend to use the desk for a long time. Ensure no obstacles in the desk’s path and no object above and 20” under the desk. Working environment temperature 0-40 , keep products away from corrosive gas, ℃...
-
Page 5: Parts List
Parts List A (x1) B (x1) C (x1) D (x2) Mount Center Plate Ceiling Template VESA Bracket G (x1) E (x2) F (x1) Receiver H (x4) (Receiver may be pre-installed Bracket Rail AC Adapter Cable Tie on A due to factory test.) K (x4) I (x4) J (x4) - Page 6 Assembly STEP 1:Installing the Mount OPTION B: Concrete Ceiling OPTION A: Wood Ceiling Using Ceiling Template (C), mark exact location of Using Ceiling Template (C), mark exact location mounting holes. Drill pilot holes 2.4” deep, using a of mounting holes. Drill pilot holes 2.2” deep 10mm drill bit.
- Page 7 Assembly STEP 2:Assembling VESA Components Assemble Bracket Rails (E) to Center Plate (C) using M6x30mm Screws (J), M6×16 Black Washer (K) and M6 Nuts (L). While holding M6 Nuts (L) with a wrench, use a Phillips screwdriver to tighten M6x30mm Screws (J). Slide VESA Brackets (D) onto Bracket Rails (E) and secure using M4x6mm Screws (M) and 5×80 Allen Wrench(P) .
- Page 8 Assembly STEP 3:Mounting VESA Assembly OPTION A: Flat Back TV Align the VESA bracket assembly with the mounting holes in the back of the TV screen. Install assembly to TV using appropriate screws (N1, N2) and Square Washers (N6) according to your screen’s requirements. OPTION B: Curved/Recessed Back TV Align the VESA bracket assembly with the mounting holes in the back of the TV screen.
- Page 9 Assembly STEP 4:Place TV on Mount Place the TV with VESA bracket assembly on Mount (A) by inserting the center screw on Center Plate (B) into the keyhole on Mount (A) at the desired height. Secure using other four M6×10 Screws(R) and tighten them. Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in the fully lowered position.
- Page 10 CONTROL SYSTEM INSTRUCTION Remote Operating Voltage 3V（Two AAA battery） Operating Current 13mA Quiescent Current Less than 5μA Operating 2.4G Frequency Operating Distance 30 meters of open space (Receiver on the ground or on a metal surface will affect the reception distance.) Coding Intelligent micro controller coding is utilized to Methodology...
- Page 11 Receiver Input DC29V Control direct current (DC) （Motor Forward and Output Reverse Rotation） Operating voltage DC12~30V Quiescent current 15mA Operating Current Less than 40mA Rated Current Less than 5A Rated Power Less than 150W Operating 2.4G frequency Code Pairing After powering on the TV mount, use a ball pen or any similar item (to be prepared by yourself) to press the Function Key.
