BBQ Multi-Function Grill MODEL YSNVT-301CGA
GB
CSA/ANSI Z21.72 • CSA 11.2(2019)
Camp Stove
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage. Refer to this manual. For assistance or additional information,
consult a qualified installer, service agency or the gas supplier.
Manufactured for:
FLAME KING
8616 Slauson Ave.,
Pico Rivera, CA 90660
Tel:+1-310-715-1122
Fax:+1-310-715-1199
www.flameking.com
Advertisement
Summary of Contents for Flame King YSNVT-301CGA

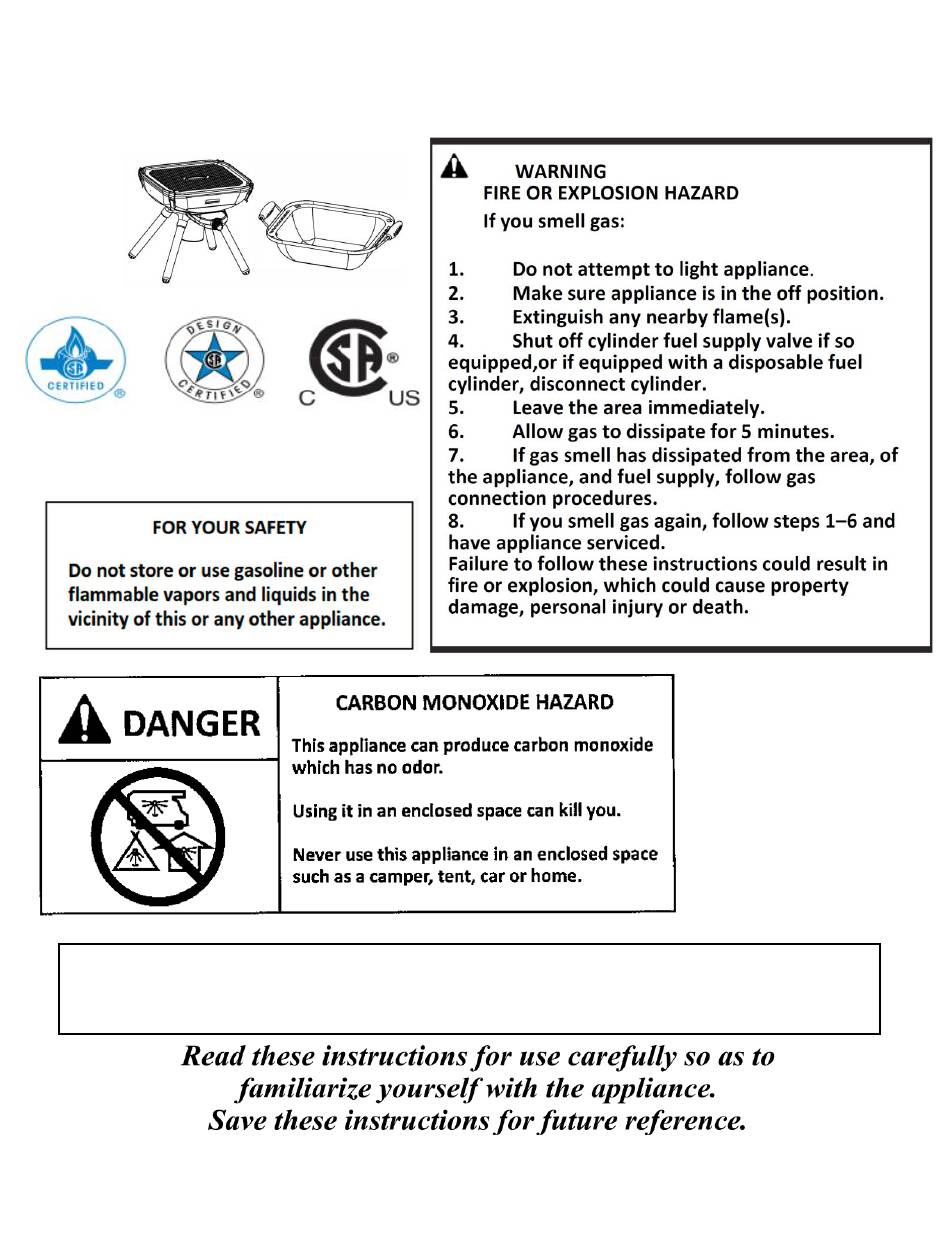

- Page 1 BBQ Multi-Function Grill MODEL YSNVT-301CGA CSA/ANSI Z21.72 • CSA 11.2(2019) Camp Stove Manufactured for: FLAME KING 8616 Slauson Ave., Pico Rivera, CA 90660 Tel:+1-310-715-1122 Fax:+1-310-715-1199 www.flameking.com WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information,...
- Page 4 I.ASSEMBLY OF THE APPLIANCE Remove the appliance from its packaging. Unlock latch by following step sequence A, B, C, then open the work (Fig.No.1). Remove components within the appliance (Fig.No.2). (1) Wok (5) Grid (2) Legs (6) Heat distributor (3) Wok handle (7) Pan support (4) Griddle (8) Water Reservoir...
- Page 5 ⚫ This Flame King appliance is designed for outdoor use only. ⚫ Rated input:8000 Btu/Hr III. General Safety Warnings ⚫ Follow instructions carefully to avoid injure or fires. ⚫ Do not use the appliance if it has damaged or worn seals.
- Page 6 IV. Fitting and Changing the propane Gas Cylinder ⚫ Before fitting the gas cylinder, check that the seal part (See No.3) is in place and is in good condition. ⚫ Check that the appliance valve is in the off position by turning the valve knob clockwise to its stop (See No.4-C).
- Page 7 FOR USE WITH 1 LB DISPOSABLE PROPANE CYLINDER BOTTLE ONLY NOTE:THIS APPLIANCE IS SET TO USE 16.4 oz. DISPOSABLE PROPANE CYLINDERS.USE ONLY CYLINDERS MARKED PROPANE.DISPOSABLE PROPANE CYLINDERS MUST BE DISCONNECTED FROM THE STOVE WHEN IT IS IN STORAGE. WARMING:A STATEMENT THAT ONLY CYLINDERS MARKED WITH THE PROPER FUEL TYPE APPROVED FOR THE APPLIANCE SHALL BE USED.
- Page 8 Turn the cylinder screws counterclockwise to disconnect the cylinder from the appliance. the minimum environmental temperature for safe storage and operation of the appliance:- 10℃~ 35℃ V. Lighting the Appliance ⚫ Before lighting the appliance, ensure that the area is free of flammable vapors or liquids.
- Page 9 ⚫ cleaning stove and surface once per month. ⚫ Your Flame King Multi Function Grill is fitted with a Flame King No. 0317 Jet to regulate the flow of gas (See Fig.NO.2). If the Jet becomes blocked, it should be...
- Page 10 ⚫ To replace the Jet, unscrew the Burner and remove the locknut. This will allow the valve and Venturi Tube to be loosened from the appliance body. Unscrew the Venturi tube from the valve to access the jet. Unscrew the jet using a suitable spanner. Do not use pliers to remove the jet as this may damage it, making it impossible for it to be removed from the valve.
- Page 11 ⚫ The Grill Plate is perfectly safe in the dishwasher, but the non-stick surface is so easy to clean that a quick hand wash does the trick. The use of abrasive detergents is not recommended as this will permanently damage the non-stick surface. ⚫...
- Page 12 Pork, sausages, etc. The cooking temperatures are easily adjusted to suit your own requirements by turning the valve knob (See Fig.NO.8-A or No.9-A) to regulate the degree of heat. ⚫ Grilling For this type of cooking place the Grill plate (See Fig.NO.2,4) on the Bottom Deflector Plate (See Fig.NO.2,8) with the ribbed side of the Grill plate facing up (See Fig.NO.8-A or No.9-A).
- Page 13 XII. Returning the Appliance for Repair Service ⚫ Do not modify the appliance ⚫ If you cannot rectify a fault by following these instructions, contact your local Flame King distributor indicated for details on how to return the product for attention.
-
Page 14: Limited Warranty
LIMITED WARRANTY To activate warranty, register on-line at: www.flameking.com The manufacturer warrants stove components (except paint and finish) to be free from defect in materials and workmanship for 1 year from the date of purchase. All accessories (included with stove or purchased separately) are warranted from defect in materials and workmanship for 90 days from the original purchasing date.
