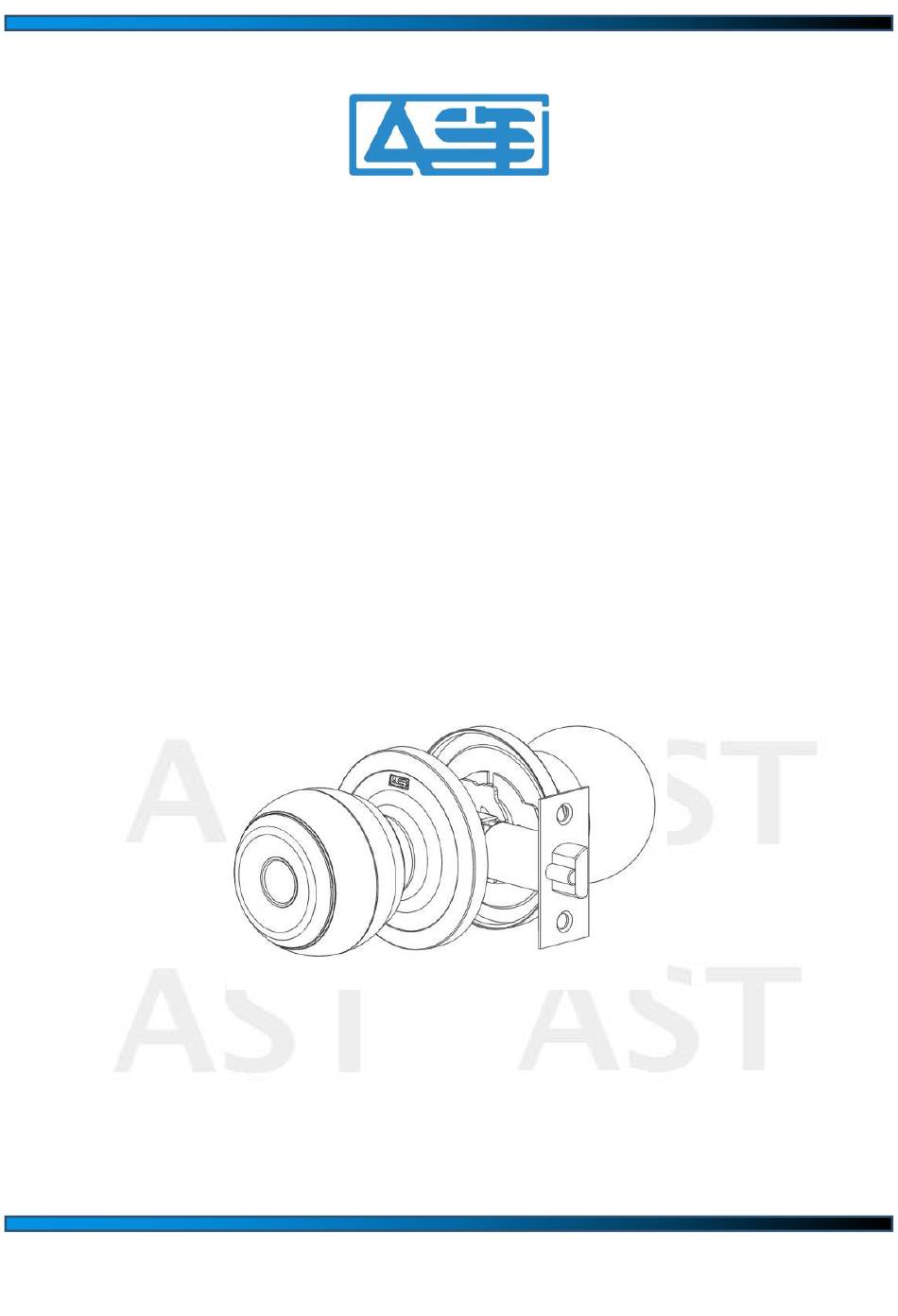

Installation and Operation Manual

Description: Fingerprint Door Knob Lock

Model No.: ES0021

Features: Fingerprint and APP

Material: Zinc, Aluminum and SS304

Product Standard Referred: ANSI/BHMA A156.25

Thanks for choosing our premium quality product of smart home security with innovative design.

Please read this manual carefully before installation and use. For any query please contact us by email

customers-ast@anlandst.com

AST bids to the expert of creating value for customers in security and hardware!

Table of Contents

Need help?

Do you have a question about the ES0021 and is the answer not in the manual?

Questions and answers

Summary of Contents for AST ES0021

Page 1 Thanks for choosing our premium quality product of smart home security with innovative design. Please read this manual carefully before installation and use. For any query please contact us by email customers-ast@anlandst.com AST bids to the expert of creating value for customers in security and hardware!
Page 2: Table Of Contents
Content 1. Parts Included in the Package ...............1 2. Product Configuration and Indication Light ...........1 3. Product Outline Dimensions ..............2 4. Cut-out of Door for Installation .............3 5. Installation of Latch Assembly and Strike Parts ........4 6. Installation of Interior and Exterior Knob Modules .......4 7.
Page 3: Parts Included In The Package
1. Parts Included in the Package Tools in need but not included in the package: ①Phillips screwdriver; ②Tape measure 2. Product Configuration and Indication Light 2.1. A configuration of product and part’s description is as below image. 2.2. There are different indicating lights during setting and operating 2.2.1.
Page 4: Product Outline Dimensions
Module (may ask you to input Fingerprint more times to make sure accuracy). 2.2.2. Fingerprint identifying or mobile phone APP unlocking Green light: success (the buzzer beeps once, and the Fingerprint reader light flashes green.) Red light: failed (the buzzer beeps twice，the Fingerprint reader light flashes red.) 2.2.3.
Page 5: Cut-Out Of Door For Installation
4. Cut-out of Door for Installation Please be noted that the Latch backset is interchangeable (60mm/70mm) 5. Installation of Latch Assembly and Strike Parts...
Page 6: Installation Of Latch Assembly And Strike Parts
Set the backset of Latch Assembly to 2-3/8” or 2-3/4” (60mm or 70mm) to fit your door hole as above image, then insert the Latch Assembly into the door hole, and drive screw A to fix the Latch Assembly, then install Strike Box and Strike Plate with screw A into the door frame.
Page 7 Important note: Please make sure the Exterior Knob Module positioned with the label “UP” is at upside, and Spindle/Stems come into the three holes of Latch Assembly. 6.2. Installation of Interior Knob Module 6.2.1. Pull out the Interior Knob from Trim as below image per the note of Cardboard for fixing screw driving.
Page 8 6.2.2. Use 2 ea of screw B to secure the Interior Trim onto door panel as below image 6.2.3. After the Interior Trim is installed and secured onto door panel, then insert the...
Page 9: Checking The Built-In Lithium Battery (Rechargeable)
Interior Knob onto Interior Trim. Please make sure the that all parts are rightly positioned/oriented per below image. 7. Checking the Built-in Lithium Battery (Rechargeable) Once above steps have been done successfully, you will need to check the built-in battery by touching the Fingerprint reader on Exterior Knob Module. If electronics are not responding, please use Power bank or other Type-C cable to connect the Exterior Knob Module for power supply and recharging the built-in Lithium battery.
Page 10: Checking Of Function
8. Checking of Function 8.1. After the Lockset is installed, please check the functions by turning of Knobs and Thumb Turn to make sure they can be rotated freely. 8.2. Also, when you have downloaded the APP and set the fingerprints, you can try all the functions, along with the Thumb Turn functional modes (Normal - Auto Lock, Privacy and Passage).
Page 11 then turn the Thumb Turn to the right and return to the middle position for 5 times continually, if you hear a long buzzer that means the resetting has been successfully done. 8.3. Below is the explanation of functional modes on Interior Knob Module 8.3.1.
Page 12: Installation Of App And Settings
8.5. Check the backup key’s function of locking/unlocking. Please do not close the door during the checking and setting of below steps of APP, just to make sure you will not be locked outside. 9. Installation of APP and Settings 9.1.
Page 13 Register an account and endorse the statements, press “Agree” and “Sign Up” on the login screen if no objection as below images. Note: The first one to connect the lockset by APP will be recognized as Administrator. Such record can be removed by resetting the lockset . Choose the country where the lockset will be used, enter your Email address to get verification code, set password, select permissions and press “Go to APP”...
Page 14 9.3. Connect the Lockset to your APP Turn on the Bluetooth of your mobile phone, keep it close to the Lockset (better within 5 meters as you will need to operate the Lockset though the Bluetooth can...
Page 15 be working within 10~20 meters, anyway the actual Bluetooth working distance is subject to the circumstance and the Bluetooth of your mobile), then touch the Fingerprint reader to motivate the lock, and press the “Add Device” on the APP screen. Prior to scanning nearby devices, please turn on the permission as below images of APP.
Page 16 images for adding the device to the APP system, then you can do further setting for the Lockset. 9.5. Press “ ”to rename the Lockset if you want. Now the Lockset is ready for use via APP. This is helpful for routine management when you have more than one our smart door lock for.
Page 17 9.6. Control the Lockset via APP Click and drive the key icon “ ” from left to right “ ” position for unlocking the door, or other ways just following the APP instructions easily. 9.7. Member management and Fingerprints Control Select “Member Management”...
Page 18: Technical Specifications
APP and warning signal from Lockset buzzer. 11. Popular Questions and Answers Can ES0021 Lockset work with third-party parts like Latch Assembly? It is recommended to use the original parts for best performance and prem ium qual ity leve l .
Page 19 Tuya APP, then try to connect again within a proper distance (like within 10 meters) . If the connection between Lockset and APP is still not successful, please contact our customer service (customers-ast@anlandst.com) for technical support. What notification will I receive when the battery voltage is low? When you use F ingerprint or mobile APP to unlock, the Fi n g e rp ri nt de v i c e will flashes green and red as a warning signal.
Page 20: Fcc Warning
FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
Page 21 Please visit our Amazon store ASTLock or website for more high quality security products, including Keyless Door Lock, Knob Lockout Device and Pocket Door Lock/Cavity Sliding Door Locks, etc. Much Appreciated!
Page 22 Anland Security Technology Revision: NR Language: English Size: A5 (14.8 X 21.0 cm) Remark: This document is property of Guangzhou Anland ST Co., Ltd and may be subject to change without notice...
