Summary of Contents for AiBOCN N1TY

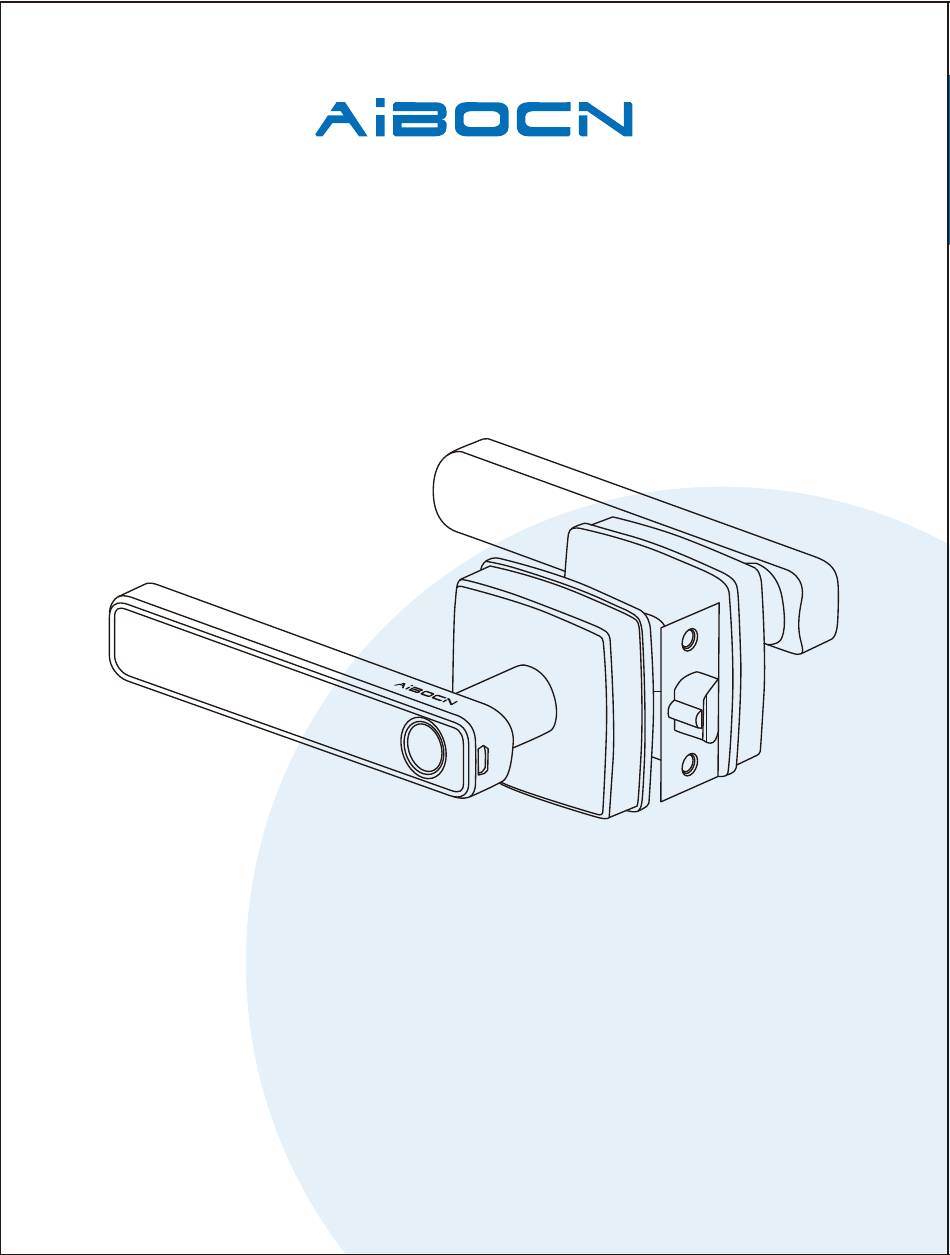

- Page 1 The wisdom of Life USER MANUAL Smart Lock Installation guide MODEL: N1TY...
-
Page 2: Table Of Contents
WELCOME TO AIBOCN SMART LOCK TABLE OF CONTENTS ......... Contact Aibocn Customer Support ................. Packing List ..............Product Overview ..............Product Profile ................Features ................Installation ..............1. Preparing Door ........... 2. Adjust Latch Backset Length ....... 3. Install Latch and Strike & Strike Box ........... -
Page 3: Important Notes
5. If you need to return the product, please contact customer service for further assistance. Please read this manual before using the smart lock and keep it properly for further reference. NEED HELP? Support Email: service@aibocn.net - 01 -... -
Page 4: Packing List
Packing List Outdoor lock body * 1 Indoor lock body * 1 Mounting plate * 1 M4 x 30mm cross 40mm Single latch * 1 Cylindrical sleeve bolt * 2 flat head bolt * 2 Strike plate * 1 M4 x 25mm M4 cross flat cross flat head head bolt... -
Page 5: Product Overview
Product Overview Fingerprint Reader Type-C USB (5V) Keyhole Used to connect power Insert the mechanical Verify your fingerprint to unlock. bank to activate the lock key to unlock. when battery runs out. Keypad Battery cover Enter code to unlock. Need 4 ×AAA Alkaline batteries - 03 -... -
Page 6: Product Profile
Product Profile Specifications Material Zinc Alloy Model NO. N1TY 38mm-50mm Code Length 6~10 digits Door thickness -20°C~70°C Working Humidity 20%~80%RH Working Temperature Static Power Consumption Working Power Consumption ＜200mA ＜30uA 6V (4 x AAA Alkaline Batteries) Power Supply Unlocking Methods App, Fingerprint，... -
Page 7: Installation
Installation Please scan this QR code to watch the easy step by step installation video before attempting to install your smart lock. 1. Preparing Door Check the door’s dimensions. Door thickness: 1 1/2"(38mm) - 2"(50mm) Backset: 2 3/8"(60mm) or 2 3/4"(70mm) Bore hole: 2 1/8"(54mm) Cross bore:... -
Page 8: Adjust Latch Backset Length
2. Adjust Latch Backset Length 2-3/8”(60mm) 2-3/4”(70mm) Measure your door backset, then adjust to the corrsponding latch length (60mm or 70mm). 3. Install Latch and Strike & Strike Box Step 1 Check Latch’s Status Correct: Horizontal Error: Inclined Step 2 Install strike (K) &... -
Page 9: Install Exterior Assembly
4. Install Exterior Assembly Step 1 Fixed bolts (E) on exterior handle (A) Step 2 Install exterior handle (A) Note: Make sure the long side of the handle with the words "This Side Up" is up and through the vertical square hole in the deadbolt. 5. - Page 10 Step 2 Install Interior Handle (B) on the door 1. Pass the wire through the rear handle and install the corresponding color side to the socket according to the label instructions on the rear handle. 2. Install screw H (6mm) to handle B. 3.
-
Page 11: Faq
Q1: Why can't the door close after installing the biometric door lock? A1: Because the direction of the latch is wrong, please refer to the user manual to adjust the direction of the latch. Q2: Do I need to drill holes to install the door handle lock? If needed, what type of drill should I use? A2: No need.
