PCT -VC P Series Installation Manual

I N S T A L L A T I O N G U I D E
A. GENERAL INSTRUCTIONS (OPTIONS 1 & 2)
1. Install type F-male connectorized input coaxial cable to the
"RF IN" port. (Refer to Options 1 & 2.)
2. Install type F-male connectorized RF coaxial cable to the
"OUT" port(s). (Refer to Options 1 & 2.)
3. Install type F-male connectorized RF coaxial cable to the "MODEM"
port. This port is reserved for connection to the MTA or modem
supporting voice traffic. (Refer to Options 1 & 2.)
4. Verify AC voltage rating of power source conforms with AC/DC
adapter.
5. Connect F-male connectorized RF coaxial cable between "PWR IN"
port on the drop amplifier and power adapter F-type connection.
(Refer to Option 1.)
6. Connect the power
(Refer to Options 1 & 2.)
7. Optional: In reverse powering through the "PWR IN OUT" port:
NOTE: Power Inserter (PCT-MPI-1G) is not provided with the
PCT-VC-xx. If a power inserter is needed, it can be
ordered separately. Please contact your local PCT
sales office or representative for details.
a. Connect an F-male connectorized RF coaxial cable between the
port "PWR IN OUT" on the drop amplifier and the "TO AMP" port
on the power inserter (PCT-MPI-1G).
b. Connect the F-male connectorized RF coaxial cable to the power
adapter and the "DC IN" port on the power inserter.
c. Connect the F-male connectorized RF coaxial cable from the
"TO TV" port on the power inserter to distribution network.
4) Connect the power adapter to an AC voltage source.
© 2006-2009 PCT International, Inc.
1 7 1 5 W e s t S u n r i s e B o u l e v a r d | G i l b e r t , A r i z o n a 8 5 2 3 3 - 5 0 3 2 | U S A | + 1 . 4 8 0 . 8 1 3 . 0 9 2 5 | F a x + 1 . 4 8 0 . 8 9 2 . 5 5 3 7 | i n f o @ p c t u s a . n e t
adapter to the AC voltage

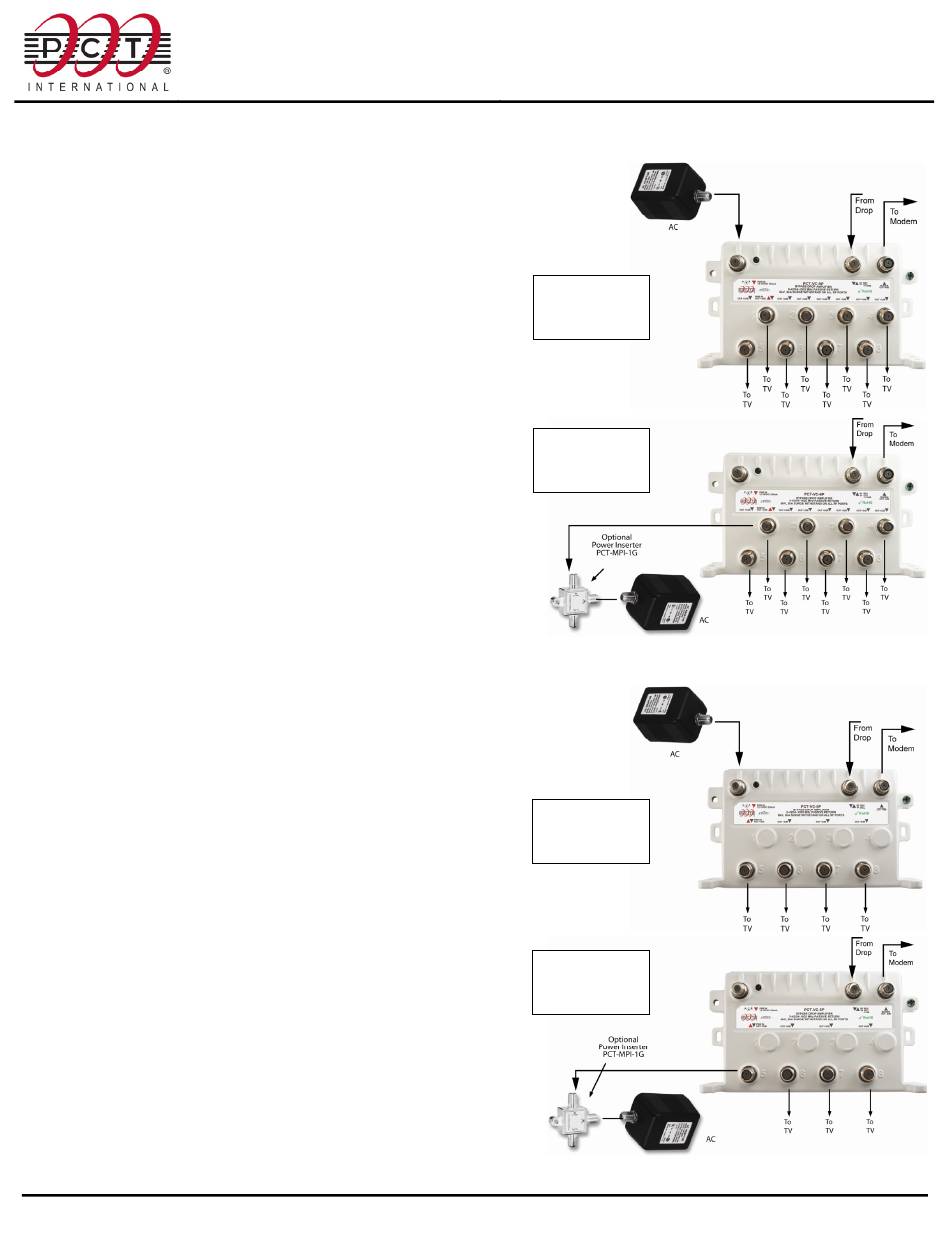

B. CONNECTION OPTIONS 1 AND 2
1. 9 Port Installations
OPTION 1
Without Power
Inserter
OPTION 2
With Power
Inserter
source.
2. 5 Port Installations
OPTION 1
Without Power
Inserter
OPTION 2
With Power
Inserter
w w w . p c t i n t e r n a t i o n a l . c o m
PCT-VC-xP / PCT-VC-xU
BYPASS DROP AMPLIFIER
5 and 9 Ports
(Patent Pending)
Ver-4 20091116
