Battery Voltage Sensor Quick Guide
Battery Voltage Sensor (Model: RVSCC) ....................................................................................................... 2
Connecting RVSCC to Charger ................................................................................................................... 2
Color Scheme ............................................................................................................................................ 4
Compatible Chargers ................................................................................................................................. 4
Advertisement
Summary of Contents for Renogy RVSCC
- Page 1 Battery Voltage Sensor Quick Guide Battery Voltage Sensor (Model: RVSCC) ....................... 2 Connecting RVSCC to Charger ........................2 Color Scheme ............................4 Compatible Chargers ..........................4...

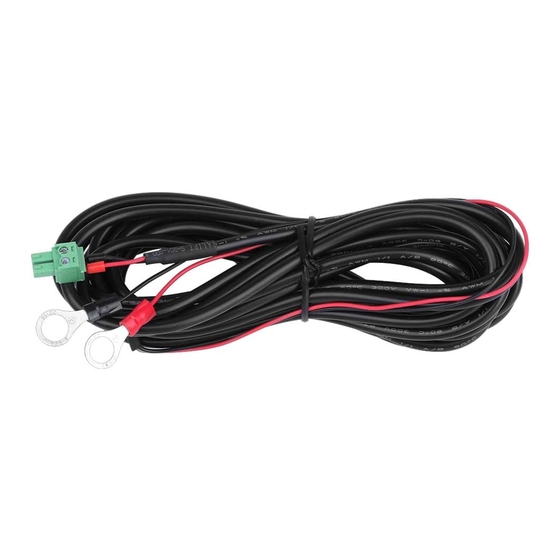

- Page 2 PWM charge controllers, the BVS Sensor is a simple yet effective plug and play solution for your system. The RVSCC is shipped with a small green terminal block and 2 wires with ring terminals. It is compatible with charge controllers that have the battery voltage sensor port.
- Page 3 4. Once finished, connect the Ring Terminals of the battery voltage sensor to the respective terminals on the battery. Red Ring Terminal goes to the Battery Positive Terminal, and Black Ring Terminal goes to the Battery Negative Terminal. 5. Lastly, simply plug the green terminal block directly to the compatible battery voltage sensor port of your charge controller or battery charger.
- Page 4 Black Brown Blue Compatible Chargers The following chargers are compatible with the RVSCC. Note: The list will expand as more as more products are introduced into the market. • Rover Elite 20A (Model: RCC20RVRE), Rover Elite 40A (Model: RCC40RVRE) •...
- Page 5 Battery Voltage Sensor Port on Rover Li shows a “Battery Sampling” port Battery Voltage Sensor Port on DCDC w/ MPPT shows a “BVS” port Battery Voltage Sensor Port on Adventurer shows a “BATT Remote” port. ONLY G2 Models.
