Installation Video
Intelligent energy saving DC technology
With LED (-L) model
With LED (-L) model
Images are for reference only and may vary slightly from actual product.

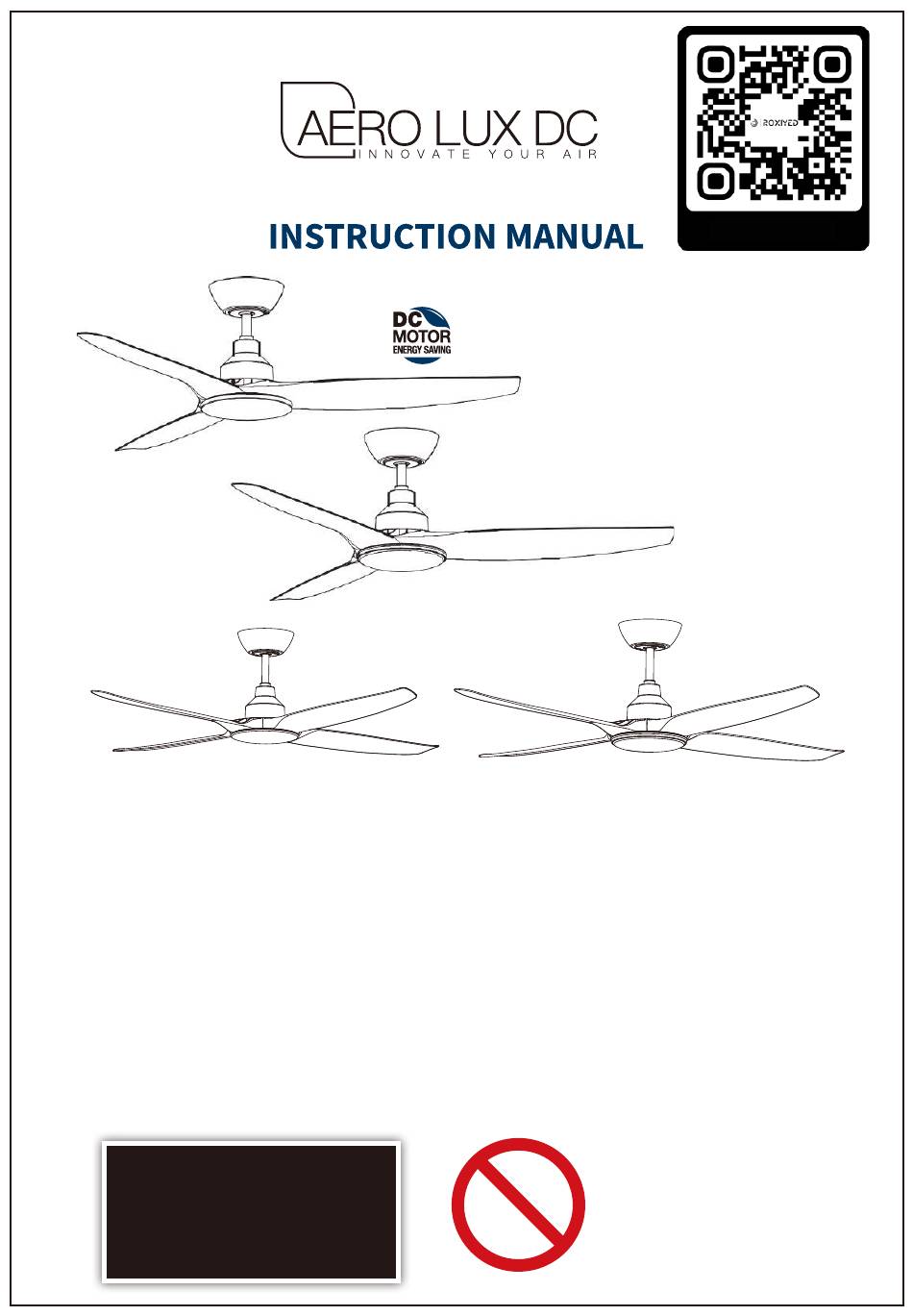

Ceiling Fan Installation Manual Rev 1.1
MODELS:
DC-C48-W, DC-C48L-W, DC-C48-B, DC-C48L-B, DC-C48-T, DC-C48L-T
DC-C52-W, DC-C52L-W, DC-C52-B, DC-C52L-B, DC-C52-T, DC-C52L-T
DC-C60-W, DC-C60L-W, DC-C60-B, DC-C60L-B, DC-C60-T, DC-C60L-T
Customer Support Email: Support@ROXIYED.COM
Thank you for purchasing this quality Roxiyed DC ceiling fan. To ensure correct function and safety,
please read all instructions before using the product and keep all instructions for future reference.
MUST BE
CAUTION
DIY
INSTALLED BY
Read Instructions Carefully
A LICENSED
For Safe Installation and Fan
ELECTRICIAN
Operation
Advertisement
Table of Contents
Summary of Contents for AERO LUX DC DC-C48-W
- Page 1 Images are for reference only and may vary slightly from actual product. Ceiling Fan Installation Manual Rev 1.1 MODELS: DC-C48-W, DC-C48L-W, DC-C48-B, DC-C48L-B, DC-C48-T, DC-C48L-T DC-C52-W, DC-C52L-W, DC-C52-B, DC-C52L-B, DC-C52-T, DC-C52L-T DC-C60-W, DC-C60L-W, DC-C60-B, DC-C60L-B, DC-C60-T, DC-C60L-T Customer Support Email: Support@ROXIYED.COM Thank you for purchasing this quality Roxiyed DC ceiling fan.
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS The installation is to be in accordance with the National Electrical Code, ANSI/NFPA 70 and local codes. ANSI/NFPA70 ANSI/NFPA70 CAUTION: To Reduce The Risk Of Injury To Persons, Install Fan So 7 feet That The Blade Is At Least 3.05 Meters (10 Feet) Above The Floor. Only a licensed electrician should complete the installation. -
Page 3: Before Installation
BEFORE INSTALLATION Unpack the fan carefully and identify all parts. Please refer to Fig 1a and Fig 1b. AREO LUX DC WITH LIGHT AREO LUX DC WITHOUT LIGHT Fig 1a. Fig 1b. Mounting bracket x 1 Mounting bracket x 1 Pre-assembled fan motor, down rod, canopy Pre-assembled fan motor, down rod, canopy and bottom cover x 1... - Page 4 2 inch capable of carrying a load of a least 20kg. Make sure power is off before installation. Check that the outlet box is securely installed in place such that it is able to support at least the fan weight.
- Page 5 QUICK ‘CLICK’ BLADE INSTALLATION 1. Insert the blades (AREO LUX DC x 3) into the blade holding slots on the motor housing, slide downward and click into position‘. 2. Insert the 2 safety screws, being careful not to over-tighten. 2. Insert the 2 safety screws ,being careful not to over-tighten. 3.
-
Page 6: Hanging The Fan
HANGING THE FAN Lift the fan assembly onto the mounting bracket. Ensure that slot (A) of the hanger ball is fully aligned/engaged with the Tab (B) of the mounting bracket to prevent the fan from rotating when in operation. Fig. 3) Secure the safety wire to the ceiling joist or other This fan hanging system supports a maximum 15-degree angled installation. -
Page 7: Finishing The Installation
FINISHING THE INSTALLATION • Connect fan to the receiver (can be done before or after sliding receiver into place). A. For fan models without light, plug cable marked ‘motor’ into remote control box. See Fig 7.2 B. For fan models with light, plug cable marked ‘motor’ and ‘LED’ into remote control box. See Fig 7.1 •... -
Page 8: Electrical Wiring Diagram
• After making the wire connections, the wires should be spread apart with the grounded conductor and the equipmentgrounding conductor on one side of the outlet box and the ungrounded conductor on the other side of the outlet box. The splices after being made should be turned upward and pushed carefully up into the outlet box Fig. -
Page 9: Remote Control Operation
REMOTE CONTROL OPERATION Fan Models Without Light Fan ‘ON’ and ‘OFF’ Increases fan speed until Max (speed 5) Decreases fan speed until Min (speed 1) TIMER Run on Timer with 12 setting options (1hr to 12hrs) MODE ECO, SLEEP and NORMAL ECO MODE level, usually somewhere between speeds 1 and 2 2nd press - Fan will reduce by 1 speed every 30mins... - Page 10 REMOTE CONTROL OPERATION • A remote control consists of two parts. Handset Reciever 1. Handset (transmitter) controller. 2. Receiver. Receives messages from the handset and is located in upper canopy of the fan. • The AREO LUX DC remote control comes pre-paired at the factory and is ready to use.
-
Page 11: Important Facts
IMPORTANT FACTS Fan Operation: AREO LUX DC A ceiling fan rotates much more slowly than traditional style wall, pedestal or desk fan; otherwise still, hot air of a room, creating a natural evaporative cooling effect. Fans never Normal Wear and Tear Over time, moving parts may become slightly loose or worn creating small increases in noise or movement. -
Page 12: Technical Information
120AC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.16 DC-C36-B 120VAC/60HZ 3.82 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.16 DC-C36L-B 120VAC/60HZ 4.00 DC-C48-W 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.43 DC-C48L-W 120VAC/60HZ 4.00 DC-C48-B DC-C48L-B 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.43... - Page 13 TECHNICAL INFORMATION Rated Ceiling Fan Fan Weight Rated Voltage Power Rated Power (Lamp) Model (Kg) (Motor) DC-C364-W 120VAC/60HZ 4.11 DC-C364L-W 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.45 DC-C484-B 120VAC/60HZ 4.11 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K 4.45 DC-C484L-B 120VAC/60HZ 4.31 DC-C564-W 120VAC/60HZ 20W, LED, 3000K, 4000K, 5000K...
-
Page 14: Warranty Information
WARRANTY INFORMATION • If you suspect faults relating to installation, contact your installer to rectify. • If you suspect there to be manufacturing defect,You can contact us without any hesitation at any time of the day, and we will reply to you within 12 hours. (It would be appreciated if you could provide us with a video or pictures, if available) It would be appreciated if you could provide us with:...
