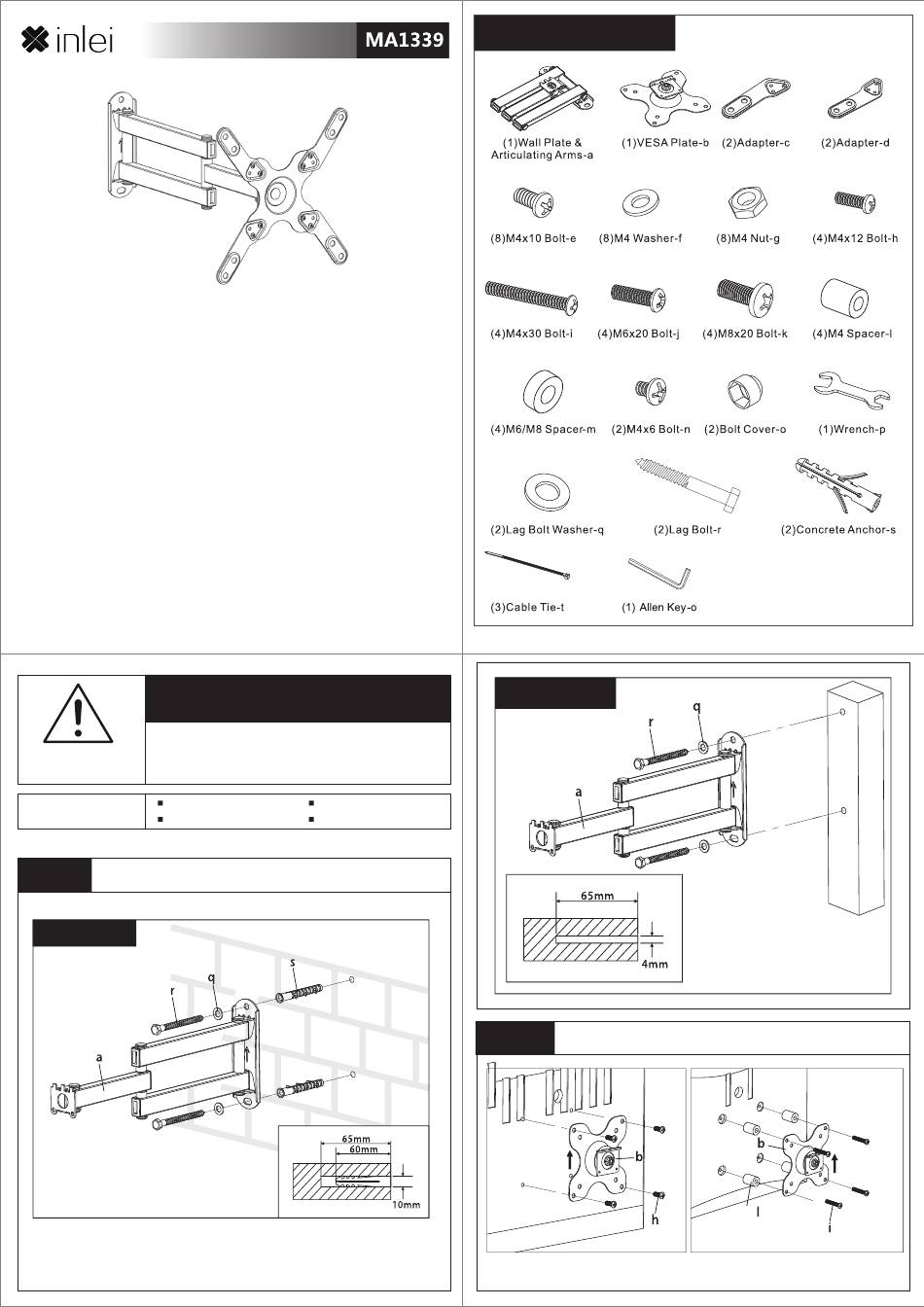

XINLEI MA1339 Installation Manual

INSTALLATION MANUAL
UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on
cardboard or other protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next
page to assure that all components wete received undamaged. Do
not use damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruc-
tion before installation, and carefully follow all instructions
contained herein. Use proper safety equipment during installation.
Please call a qualified installation contractor for help if you don't
understand these directions or have any doubts about the safety of
the installation.
Do not use this product for any purpose or in any configuration not
explicitly specified in this instruction. We hereby disclaims any and
all liability for injury or damage arising from incorrect assembly,
incorrect mounting, or incorrect use of this product.
This TV mount must be securely attached to the
vertical wall. If the mount is not properly installed it
WARNING
may fall, resulting in possible injury and/or damage.
4mm Drill Bit
Tools Required
Phillips Screwdriver
Install the wall plate to the wall
Step 1
Brick Mount
CAUTION!
10mm Masonry Bit
Carpenter's Level
Supplied Parts List
Wood Mount
Attach VESA plate to the mounting hole of TV for
Step 2A
VESA 75x75mm and 100x100mm mounting holes
This way up!
For flat back TV
This way up!
For curved back TV
