Summary of Contents for Express Water BP-ABP-50100GPD

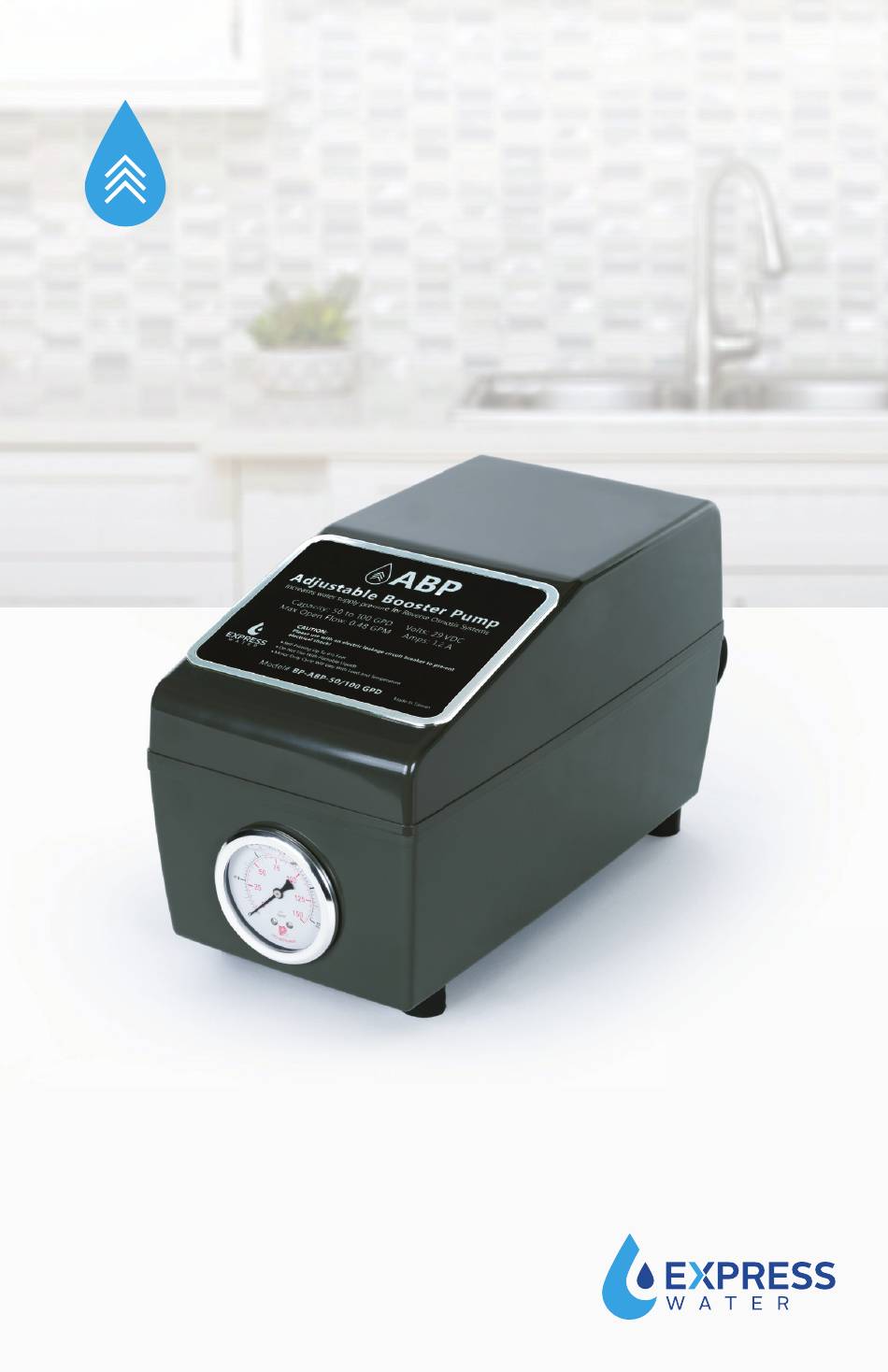

- Page 1 Adjustable Booster Pump Installation Manual Customer Support 1-800-992-8876...
- Page 2 Adjustable Booster Pump Overall System Connections Get the most out of your Reverse Osmosis System with an Adjustable Water Booster Pump. The Adjustable Pump is fully compatible with any system capacity between 50 and 100 gallons per day. Boosting your pressure to 80 psi means more efficient filtration which increases the life span of your filters, catches more contaminants, and produces water faster.
- Page 3 ¼” Quick connect T Fitting, 10ft of ¼” Quick connect Tubing Components: Copyright © 2019 by Express Water Inc. All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical...
-
Page 4: System Diagram
System Diagram 15. Stem Elbow 1. Adapter Valve 8. Male Elbow 1/8” 16. Tank Valve 2. Leak Stopper 9. RO Membrane Housing Water Tank 3. Sediment Water Filter 10. Check Valve 18. Tank Stand 4. GAC Carbon Filter 11. Drain Flow Restrictor 19. -
Page 5: Installation Instructions
Installation Instructions NOTE! You will need to refer to the System Diagram throughout the installation 1. Turn the Feed Water Adapter Valve’s red knob to the closed position [#1 on diagram] The red arrow of the Adapter Valve should point away from the tube for the closed position 2. - Page 6 Locking Clip Removal Collet Locking Fitting Clip Unlocked Locked Before connecting any tubing make sure to remove Blue Locking Clips on the Fittings Use tubing to connect the Elbow [#6] on the ACB Filter [#5], to the Booster Pump connection marked “Water Inlet”. Connect tubing from the IN connection of the Automatic Shut Off Valve [#7] to the Booster Pump connection marked “To RO System”.
-
Page 7: Year Limited Warranty
Our support will verify that the product and problem are under warranty and help you arrange to send your defective part back to Express Water with your receipt and contact information (name, address, phone number, email address). - Page 8 Purely Simple, Simply Pure.
