Summary of Contents for AX2V CPAA07

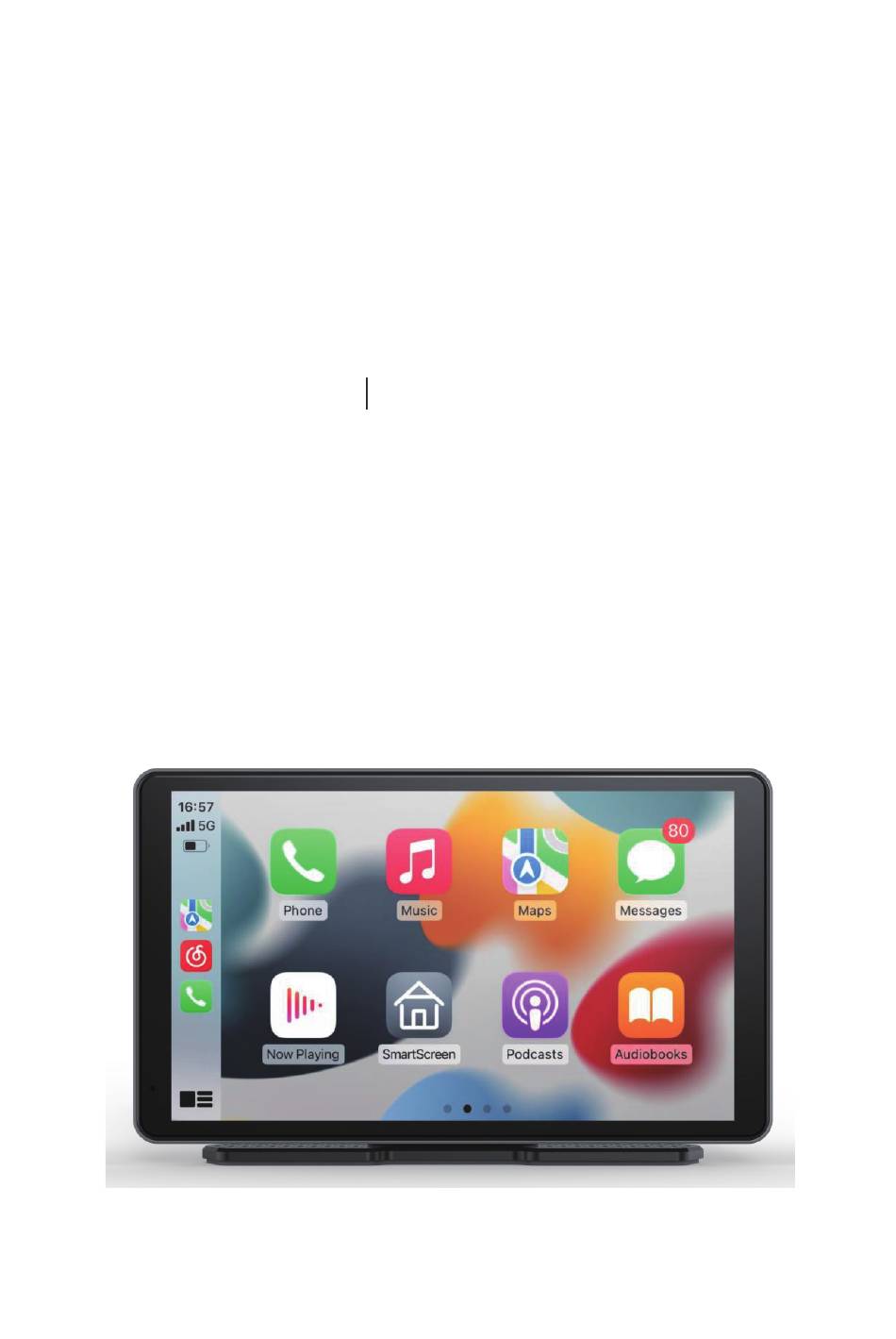

- Page 1 User Manual Ver.6.3 Wireless CarPlay Android Auto Media Player 7 inch...
- Page 2 CONTENTS Content.................1 Product Specification.............2 Product Port................3 Function Introduction.............4 1 Carplay Connection Method...........4 2 Disconnect Carplay ..........5 3 Android Auto Connection Method ........6 4 Disconnect Android Auto..........7 5 Disconnect Bluetooth............8 6 Trouble shooting............9 7 Bluetooth & Bluetooth Music.........11 8 TF Card.................11 9 FM Transmit..............12 ........13 Rearview Cam (Not Included)
- Page 14 Rearview Cam (Not Included) Note: The rearview cam is not included in the package, it must be purchased separately at the AX2V store(ASIN: B0CPDWDC7G). 10.1 Please refer to page 19 Rearview Camera Installation before using. 10.2 If the rearview camera is not installed, it will display "No Signal".
- Page 20 4 Rearview Camera Installation Note: The rearview cam is not included in the package, it must be purchased separately at the AX2V store(ASIN: B0CPDWDC7G). 4.1 As shown in the figure, the yellow line is a schematic wiring diagram of the extension line of the rearview camera. (From A to B) 4.2 The red short line at the end of the extension line is the reversing...
