Summary of Contents for ATUMTEK ATPM141

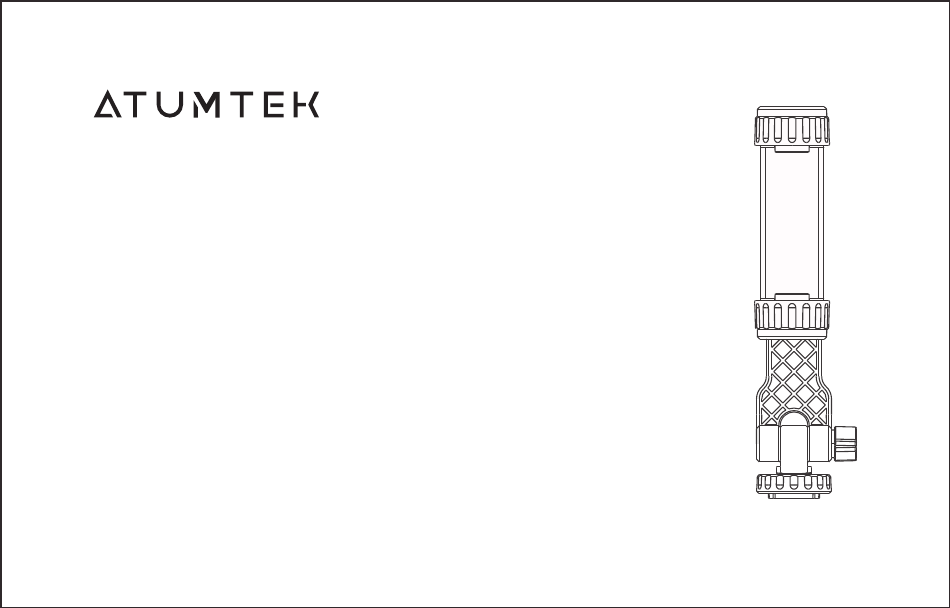

- Page 1 User Manual ATUMTEK Multi-function Phone Tripod Mount Adapter...
- Page 2 5.5cm to 9.4cm Cold Shoe Mount Phone Mount Adjustable Knob Cold Shoe Adapter Screw Mounting Hole Product Material: ABS Plastic Weight: 54g...
- Page 3 Step 1 Installing the Phone Mount Screw and Fasten phone holder on tripod. Schrauben und Befestigen Sie den Handyhalter am Stativ. Vissez et fixez le support de téléphone sur le trépied. ITA: Avvitare e fissare il supporto del telefono sul cavalletto.
- Page 4 Install phone holder on cold shoe mount and fasten the cold shoe adapter. Installiere den Handyhalter auf dem Cold-Shoe-Halter und befestige den Cold-Shoe-Adapter. Montez le support de téléphone sur la fixation Cold Shoe et fixez l'adaptateur Cold Shoe. ITA: Installare il supporto per il telefono sulla montatura Cold Shoe e fissare l'adattatore Cold Shoe.
- Page 5 Step 2 Mount Phone or Other Devices on Insert the phone into the phone holder (Please avoid to stuck phone buttons). Attach other devices onto the cold shoe mount. Loosen the phone mount knob, adjust the angles to your liking, and finally tighten the knob to secure the 180°...
- Page 6 Setzen Sie das Telefon in den Telefonhalter ein (vermeiden Sie bitte, die Telefonknöpfe festzuklemmen). Befestigen Sie andere Geräte am Cold-Shoe-Mount. Lösen Sie den Knopf der Telefonhalterung und passen Sie den Winkel an, ziehen Sie schließlich den Knopf fest. Insérez le téléphone dans le support de téléphone (Veuillez éviter de coincer les boutons du téléphone).
- Page 7 Inserisci il telefono nel supporto telefonico (si prega di evitare di incastrare i tasti del telefono). Attacca altri dispositivi sul supporto Cold Shoe. Allenta la manopola di montaggio del telefono, regola gli angoli a tua scelta e infine stringi la manopola per fissare il supporto in posizione.
- Page 8 電話を電話ホルダーに挿入してください（電話のボタンが詰まらないようにしてくださ い）。他のデバイスをコールドシューマウントに取り付けます。電話マウントノブを緩 め、好みの角度に調整し、最後にノブを締めてマウントを固定してください。...
- Page 9 Thank you for choosing ATUMTEK! ATUMTEK provides warranty coverage of 36 month on all of its brand name products purchased through authorized channels. support@atumtek.com Prolinx GmbH Brehmstr.56, 40239 Duesseldorf Germany Syncwire UK Ltd C/O Lai and Co.109 Portland Street, Manchester, M1 6N...
