MODELS 55-0407AL, 55-0410, 55-0416
ADJUSTABLE ALUMINUM BRACKET
DESIGNED FOR AUXILIARY MOTORS
55‐0416
Rated for auxiliary motors up to 35 HP
Ver cal travel : 16 inches [40.64 cm]
Setback up: 8‐3/4 inches [22.22cm]
Setback down: 18inches [35.56 cm]
Motor Mount Plate: 11.5 wide x 12.5 high [inches]
29.21 wide x 31.75high[ cm]
Product weight 20 lbs. [9.07 kg]
REV 1/17
55‐0407
Rated for auxiliary motors up to 15 hp
Ver cal travel : 10 inches [25.4 cm]
Setback up: 8‐3/4 inches [22.23 cm]
Setback down: 14 inches [35.56 cm]
Motor Mount Plate dimensions: 11.5 wide x 10.75 high [inches]
Product weight 20 lbs. [9.07 kg]
55‐0410
[features x‐heavy springs]
Rated for auxiliary motors up to 35 HP
Ver cal travel : 10 inches [25.4 cm]
Setback up: 8‐3/4 inches [22.23 cm]
Setback down: 14 inches [35.56 cm]
Motor Mount Plate dimensions: 11.5 wide x 10.75 high [inches
Product weight 20 lbs. [9.07 kg]
[features x‐heavy springs]
29.21 wide x 27.31 high [cm]
29.21 wide x 27.31 high [cm]
Advertisement
Summary of Contents for Panther 55-0407AL

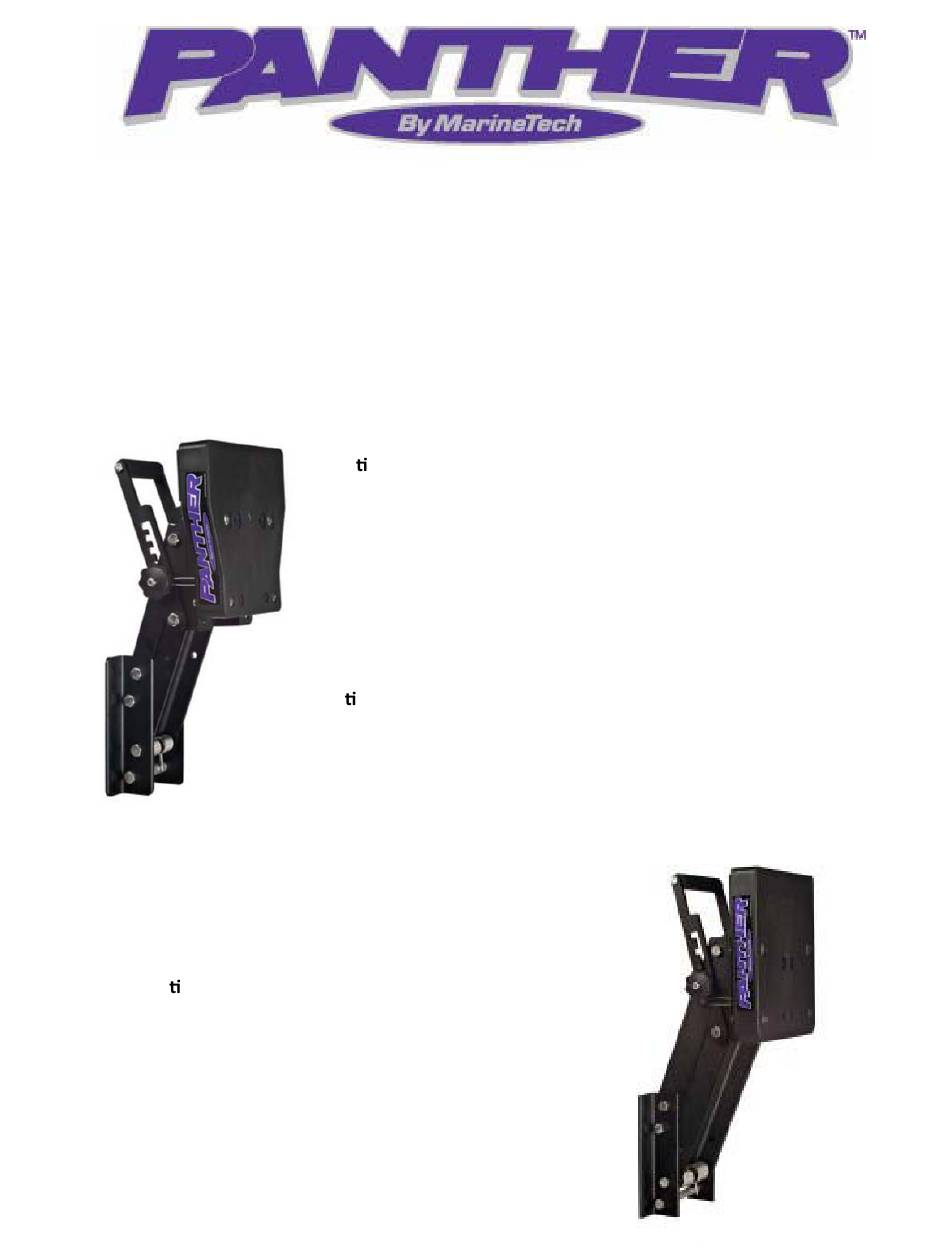

- Page 1 MODELS 55-0407AL, 55-0410, 55-0416 ADJUSTABLE ALUMINUM BRACKET DESIGNED FOR AUXILIARY MOTORS 55‐0407 Rated for auxiliary motors up to 15 hp Ver cal travel : 10 inches [25.4 cm] Setback up: 8‐3/4 inches [22.23 cm] Setback down: 14 inches [35.56 cm] Motor Mount Plate dimensions: 11.5 wide x 10.75 high [inches] 29.21 wide x 27.31 high [cm] Product weight 20 lbs. [9.07 kg] 55‐0410 [features x‐heavy springs] Rated for auxiliary motors up to 35 HP Ver cal travel : 10 inches [25.4 cm] Setback up: 8‐3/4 inches [22.23 cm] Setback down: 14 inches [35.56 cm] Motor Mount Plate dimensions: 11.5 wide x 10.75 high [inches 29.21 wide x 27.31 high [cm] Product weight 20 lbs. [9.07 kg] 55‐0416 [features x‐heavy springs] ...
-
Page 2: Installation
10. To avoid personal injury, do not contact moving parts and observe all of the above guidelines 11. Do not attempt to remove or replace springs. Panther Bracket Model Ver cal Travel Different Panther brackets have varying amounts of 55‐0407AL 10" “travel”, be sure you have selected the proper bracket 55‐0410 ... - Page 3 DRAWINGS NOT TO SCALE Once you have your measuring s ck in place, posi on the outboard motor bracket on the transom of the boat on either the starboard or port side. Care should be ex‐ ercised to make sure that the bracket will not interfere with the movement of the exis ng engine or a rudder.
- Page 4 Check again to make sure that there are no obstruc ons on the inside of the transom and then drill four 3/8” holes at the marked loca ons. Apply a bead of RTV silicone sealant around each hole to ensure a wa‐ terproof seal.
-
Page 5: Service And Warranty
SERVICE AND WARRANTY Should your unit ever require service, please do not return the product to your dealer. Please call the number below for special instruc ons on shipping and handling. Please call between 9:00 am ‐ 3:00 pm (Central Standard Time) Monday through Friday. If service is required and covered by warranty, it will be repaired or replaced as described below. If service is required and not covered by warranty, (such as damage caused from improper trailering or from water intrusion through the breather tube), replacement parts are available for purchase and may be paid for by credit card The warranty coverage on this equipment is limited to the terms set forth below... - Page 6 MarineTech Products, Inc. is proud to offer these lines: SOLUTIONS FOR MOTOR MOUNTING, REMOTE STEERING, TILT & TRIM, SHAL- LOW WATER ANCHORS, AND SECURITY SYSTEMS ROD HOLDERS, TROLLING MOTOR SUPPORTS, AND GPS/SONAR MOUNTS AUXILIARY OUTBOARD MOTOR STEERING SYSTEMS THROTTLE CONTROL FOR GAS POWERED AUXILIARY MOTORS www.marinetechproducts.com...
