Canarm BL16WACBK Manual

1-800-265-1833 (English) / 1-800-567-2513 (French) Monday through Friday 8:00 AM to 5:00 PM E.S.T.
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
!
SAVE THESE INSTRUCTIONS
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
NOTE: Product May Not Look Exactly As Shown In Diagrams. Bulbs Are Not Included.
INSTALLATION:
Arm
White
Electrical
Black Wire
Wire
Box
Ground
Back
Wire
Plate Gasket
Back Plate Gasket
Back Plate
Arm
Gasket
Screws
Set Screws
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
WALL MOUNT
QUESTIONS OR CONCERNS CONTACT CANARM AT:
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: SUITABLE FOR WET LOCATIONS WHEN

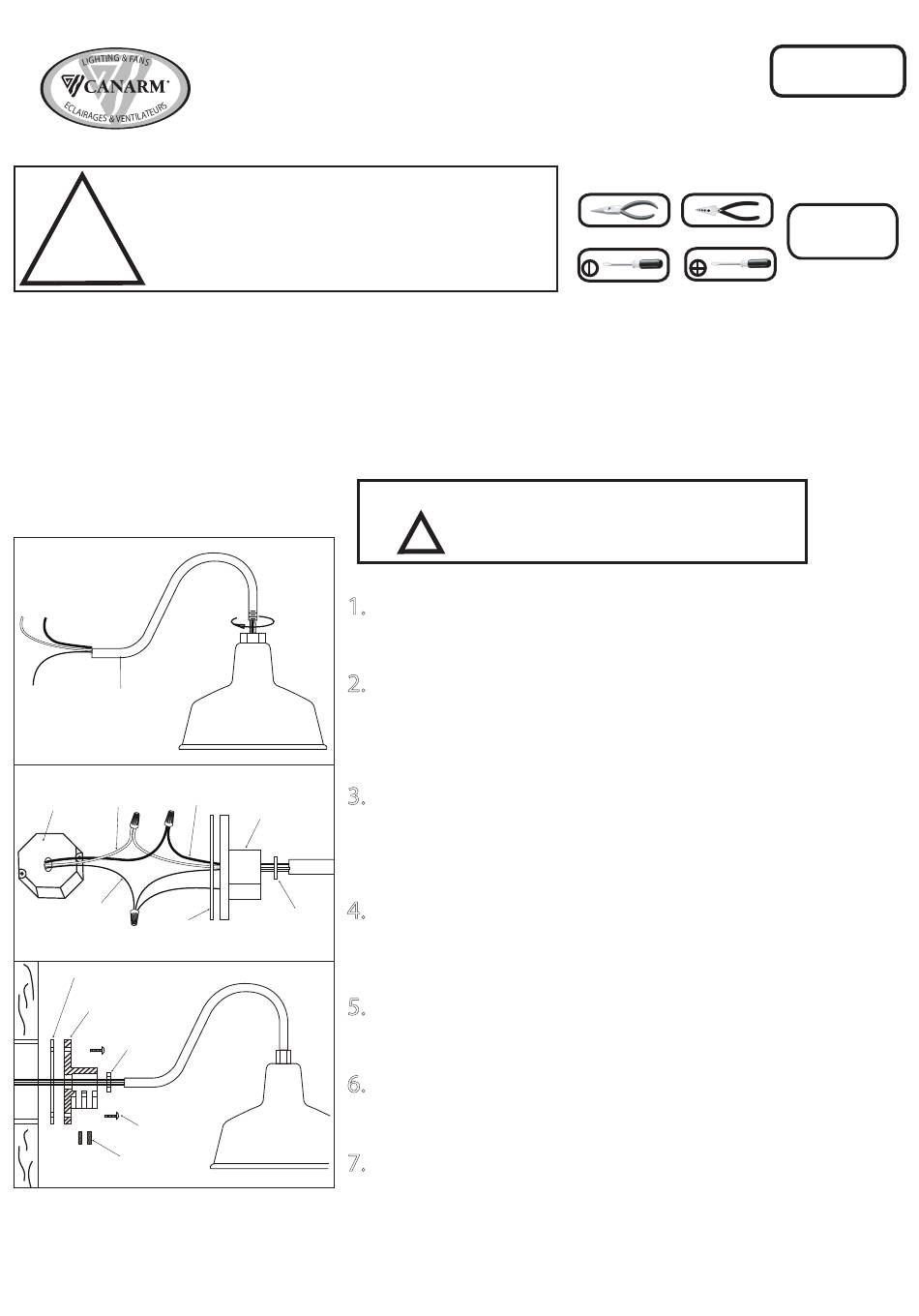

1.
Run black, white and green wires from fixture through arm.
2.
Screw the arm onto the shade. Put the arm gasket, back plate and
back plate gasket in place. Seal other end of arm into back plate with
gasket in place.
Shade
3.
Connect the ground wires (bare copper or green) from your fixture to
Back Plate
the ground wire (bare copper or green) or ground screw in the electrical
outlet box. Connect black wire from fixture to black wire in outlet box and
connect the white wire from fixture to white wire in outlet box.
4.
Put back plate gasket in place and attach backplate to junction box
Arm
using screws provided.
Gasket
5.
Align fixture and secure by tightening set screws on backplate.
6.
After Installation, seal around the top and side perimeter between the
fixture and the wall surface with weather resistant caulking. The bottom
should be left un-caulked to prevent moisture build-up.
7.
Install proper bulb type and wattage (not included).
TOOLS AND MATERIALS REQUIRED:
Screwdriver
THREADS ARE SEALED WITH TEFLON
!
TAPE OR PIPE SEAL.
Pliers Wire Cutters
Phillips
Blade
Screwdriver
B-6
09/13
Wiring supplies
as required by
electrical code
