Summary of Contents for Veeniix V11

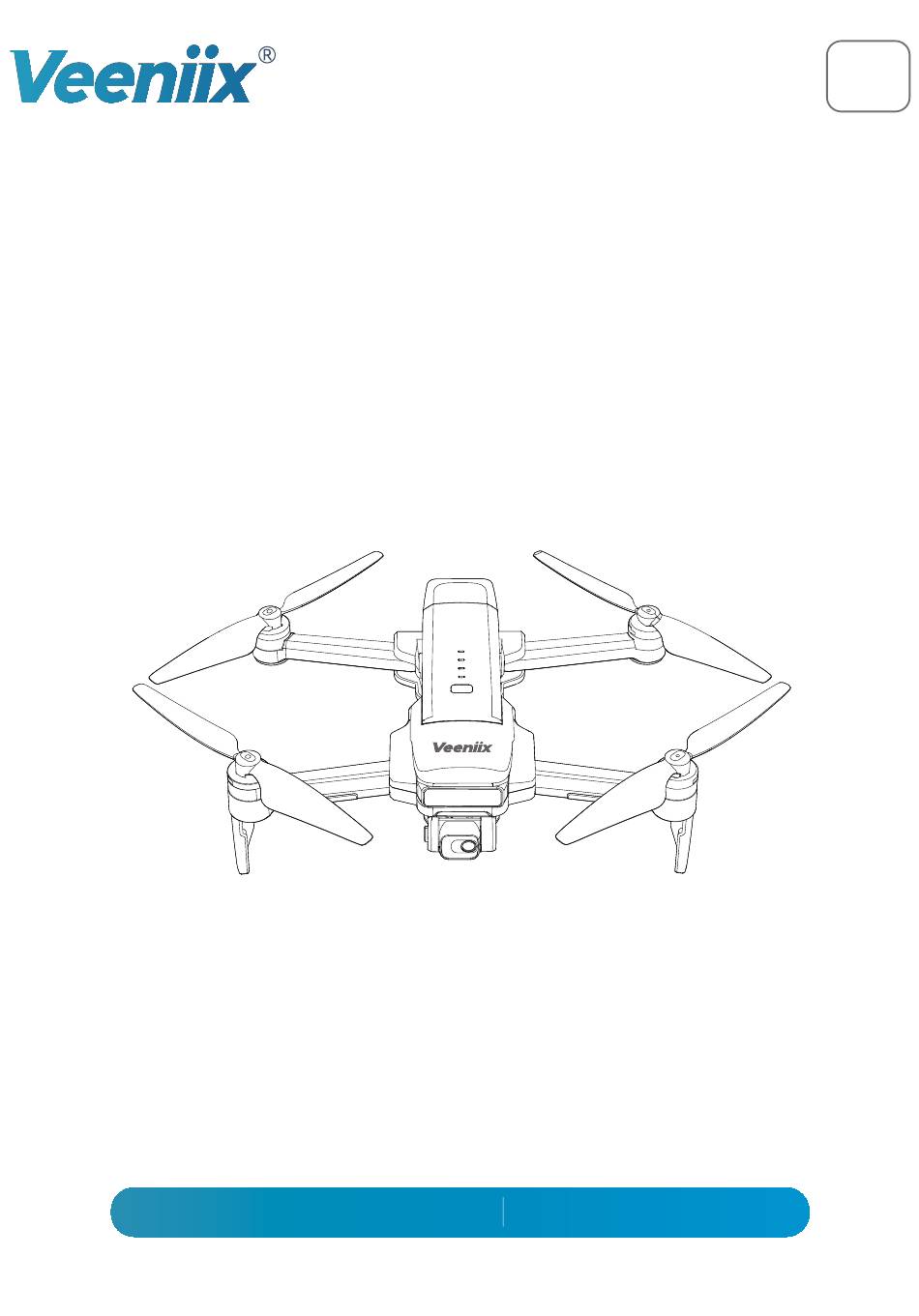

Page 1 for age User Manual CONTACT US FOR MORE TECH SUPPORT WhatsApp: +86 18928013876 Mon-Sun 6PM-4AM(PST)
Page 2 CONTACT US FOR MORE TECH SUPPORT WhatsApp: +86 18928013876 Mon-Sun 6PM-4AM(PST) Mon-Sun 6PM-4AM(PST) veeniixtoy@gmail.com...
Page 3: Table Of Contents
3 Aircraft 3.1 Flight Modes 3.2 Aircraft Status Indicator 3.3 Return to Home (RTH) 3.4 Ultrasonic & Auxiliary Light 3.5 Intelligent Flight Modes 3.6 Propellers 3.7 Intelligent Flight Battery 3.8 Gimbal and Camera Overview Copyright ©2023 Veeniix All Rights Reserved.
Page 4 6.1 Flight Environment Requirements 6.2 Pre-Flight Checklist 6.3 Pairing Remote Controller with Aircraft 6.4 Remote Controller Cable Connection 6.5 Compass Calibration before Flight 6.6 Gyroscope Calibration 6.7 Starting/Stopping the Motors 6.8 Auto Takeoff/Landing 6.9 Basic Flight Copyright ©2023 Veeniix All Rights Reserved.
Page 5 7.4 After-sales Support This User Manual is subject to change without notice. You can check the recently updated version of "User Manual" on Veeniix after-sales center. Veeniixtoy@gmail.com If you have any questions or suggestions about the User Manual, please contact us via the above email.
Page 6: Using This Manual
Make sure to download the Veeniix Fly before using V11. （iOS App Store）（Google Play） Veeniix Fly is compatible with Android 6.0 or above, iOS 10.0.2 or above, dual-band Wi-Fi (2.4GHz and 5.8GHz) phones. Copyright ©2023 Veeniix All Rights Reserved.
Page 7: Faa Remote Id Registration Process
You can check the serial number of the drone in two ways. ① RID-compliant labels on the drone. ② Successfully matched drone with remote control---Insert the data cable---enter “Veeniix Fly” app---enter CONTROL page---click the power icon in the upper right corner---the RID information will pop up. RXID: 1865AH600000001 TXID: 1982SJ23070100000004 time：...
Page 12: Video Tutorials
The drone is within airspace of the United States. ③ The drone’ s motors began to spin. 1.5 Video Tutorials Scan the QR code to watch the tutorial videos to ensure correct and safe use of the product. Copyright ©2023 Veeniix All Rights Reserved.
Page 13: Product Overview
RC Cable (USB-C connector) propellers A Type-C USB charging cable propellers B RC Cable (Micro USB connector) RC Cable (Lightning connector) SPEED Remote controller Propeller Holder Intelligent Flight Battery Gimbal Cover Aircraft Spare Joysticks Landing Pad Copyright ©2023 Veeniix All Rights Reserved.
Page 14: Preparing The Aircraft
2.2 Preparing the Aircraft All aircraft arms are folded before the aircraft is packaged. Follow the steps below to unfold the aircraft. Copyright ©2023 Veeniix All Rights Reserved.
Page 15 Remove the gimbal cover from the camera before starting the aircraft. Make sure that the aircraft is placed on level ground and all the arms are unfolded before turning on the aircraft. Copyright ©2023 Veeniix All Rights Reserved.
Page 16: Remote Controller Diagram
Point, within a radius of about 3 meters). Press again to cancel RTH. 4.Power Button Press once to check the current battery level. Press once and then long press to turn on the remote controller. Copyright ©2023 Veeniix All Rights Reserved.
Page 17 11.Joysticks Storage Slot For storing the control joysticks. 7.Status Display 1.Long-distance Version 2.Remote Controller Battery 8.Aircraft Battery Level 3.GPS signal strength 9.Distance 4.Remote Control Signal Strength 10.Height 5.Shutter/Record 11.Distance Speed 6.Speed 12.Vertical Speed Copyright ©2023 Veeniix All Rights Reserved.
Page 18: Aircraft Diagram
1.Gimbal and Camera 8.Optical ﬂow camera 2.Propellers 9.Ultrasonic module 3.Motors 10.Battery Buckles 4.Aircraft Status Indicator 11.MicroSD Card Slot 5.Intelligent Flight Battery 12.USB-C Port 6.Landing Gears 13.Power Button (Built-in antennas) 14.Battery Level LEDs 7.Auxiliary Light Copyright ©2023 Veeniix All Rights Reserved.
Page 19: Aircraft
ﬂight battery. This section will introduce the functions of each part in detail. 3.1 Flight Modes Veeniix V11 has three ﬂight modes can be switched via the Flight Mode Switch on the remote controller. Aircraft defaults to Normal mode and should be switched to Sport mode when the wind is strong to improve the wind resistance.
Page 20: Aircraft Status Indicator
3.2 Aircraft Status Indicator V11 aircraft status indicator is located above the nose landing gear and shows the current status of the ﬂight control system. Refer to the table below for more information about the aircraft status indicator. Color Action...
Page 21: Return To Home (Rth)
3. During the ﬂight, if the aircraft lands at a new location, the point from which it retook off will become the latest Home Point, and the aircraft will return to the latest Home Point. Copyright ©2023 Veeniix All Rights Reserved.
Page 22 ﬂy to the Home Point at its current altitude. (Pay attention to maintain the altitude and avoid hitting people or obstacles.)Refer to Figure 1. current current altitude 16ft altitude 16ft < 98ft Copyright ©2023 Veeniix All Rights Reserved.
Page 23 The aircraft is not equipped with an obstacle avoidance function. During the ﬂight, please judge the ﬂight situation reasonably, avoid obstacles in time, and set the corresponding ﬂight and return height according to the ﬂight environment. Copyright ©2023 Veeniix All Rights Reserved.
Page 24 Avoid hitting obstacles due to the low ﬂying altitude when returning home with the second-level low battery. The remaining battery power after returning is related to the return distance, wind speed, and wind direction. Copyright ©2023 Veeniix All Rights Reserved.
Page 25 4. The aircraft automatically ﬂies over the latest Home Point, then starts to land, and completes the home return. When Signal Disconnection RTH, the aircraft cannot avoid obstacles. When the GPS signal is weak, the aircraft cannot return to home automatically. Copyright ©2023 Veeniix All Rights Reserved.
Page 26: Ultrasonic & Auxiliary Light
Ultrasonic module Optical ﬂow camera Ultrasonic is less effective on highly absorbent surfaces (e.g. thick carpets, lawns). Auxiliary light provides illumination at close range which accelerates the power consumption of the intelligent ﬂight battery. Copyright ©2023 Veeniix All Rights Reserved.
Page 27 Make sure there are no stickers or any other obstructions over the optical ﬂow camera. The optical ﬂow camera can only be used in indoor mode, and the aircraft automatically switches to GPS mode when it successfully searches for signals outdoor. Copyright ©2023 Veeniix All Rights Reserved.
Page 28: Intelligent Flight Modes
3.5 Intelligent Flight Modes Veeniix V11 has three intelligent ﬂight modes to meet the user's shooting needs: Waypoints Flight, Point of Interest, GPS Follow. The intelligent ﬂight modes can only be operated through the Veeniix Fly App, please make sure to download and install Veeniix Fly before use.
Page 29 1. Make sure you have downloaded and installed the Veeniix Fly App and that your phone is connected to the remote controller. 2. Launch aircraft and ensure ﬂight height is higher than the nearby obstructions. 3. Click the icon on the App to enter the Waypoints Flight.
Page 30 ﬂy around counterclockwise/clockwise. 16ft-328ft (5-100m) 1. Make sure you have downloaded and installed the Veeniix Fly App and that your phone is connected to the remote controller. 2. Launch the aircraft and make it hover around the target center point.
Page 31 During the circling process, tap the point of interest button can cancel, and if you need to return to the aircraft, you can directly click RTH to return the aircraft. Copyright ©2023 Veeniix All Rights Reserved.
Page 32 (50m) after you turn on the positioning function of your phone. ≤164ft (50m) ≤164ft (50m) 1. Make sure you have downloaded and installed the Veeniix Fly App and that your phone is connected to the remote controller. 2. Launch the aircraft and make sure the ﬂying range within 164ft (50m) for best effect.
Page 33: Propellers
3.6 Propellers The adjacent propellers on the motors of the Veeniix V11 are forward and reverse propellers, the propellers are marked with A and B respectively, different marked propellers rotate in different directions. Propellers Mark A Mark B Installed to the...
Page 34 Propeller A: Press the propellers A of the motor and turn clockwise. Propeller B: Press the propellers B of the motor and turn counterclockwise. Please use the propellers provided by Veeniix, and do not mix propellers of different types. Please check whether the propeller is installed correctly and tightly before each ﬂight.
Page 35: Intelligent Flight Battery
3.7 Intelligent Flight Battery Veeniix V11 intelligent ﬂight battery has a capacity of 3500mAh, a rated voltage of 11.1V, and with charge and discharge management functions. This battery uses high-energy and large-capacity batteries to increase the ﬂight time of the aircraft.
Page 37 Please check the battery power and fully charge before each ﬂight. Please remove the battery from the aircraft when charging. It is prohibited to charge for a long time or use a charger that exceeds the rated power of the battery. Copyright ©2023 Veeniix All Rights Reserved.
Page 38 Battery level LEDs Power button USB charging port Auto-Discharging Function: V11 Intelligent Flight Battery is equipped with Auto-Discharging Function to prevent swelling, it automatically discharges to Approximate 85% of the battery level when it is idle for 2-3days. After Auto-Discharging, the surface of the power button will have heat, which will cause the ﬂight time to be shortened by...
Page 39: Gimbal And Camera Overview
ﬁeld of vision for unforgettable moments. Gimbal Self-inspection V11 gimbal has two-axis mechanical stabilization + EIS, with mechanical stabilization in the roll and pitch axis and EIS in the yaw axis. roll...
Page 40 The aircraft camera angle can be adjusted from -80° to 0°. Image output format: JPG Video output format: MP4 TRANSMISSION CONFIGURATION STORAGE RESOLUTION FRAME RATE Photo 3840X2160P Phone Video 1280X720P 30fps Photo 3840X2160P SD card Video 3840X2160P 30fps Copyright ©2023 Veeniix All Rights Reserved.
Page 41 Storing Photos and Videos ≤128GB V11 is equipped with a MicroSD Card Slot for storage expansion. 1.Card speed: 10M/s. 2.File format: support FAT32 format. 3.Capacity: SD cards with less than or equal to 128G memory capacity. SD cards can be formatted within the App.
Page 42: Remote Controller
USB Adapter (Not included) Chargi ng CharGE DONE The Remote Control Is Charging Fully Charged With Remote Control Connect the remote controller Micro USB-C Port to the charger for charging. Please note: Never overcharge. Copyright ©2023 Veeniix All Rights Reserved.
Page 43: Emergency Stop
By using this function the drone motor will stop working immediately thus fall to the ground, which might cause damage. Only use this feature when in emergency so as to reduce the risk of damage or injury. Copyright ©2023 Veeniix All Rights Reserved.
Page 44: Controlling The Drone
(press once indicating the power level, long press the SPEED remote control beeps three times and power on, LED screen indicates "RHAND MODE".) Direction Joystick Throttle Joystick Left Joystick Right Joystick Copyright ©2023 Veeniix All Rights Reserved.
Page 45 Push the joystick left to ﬂy left and right to ﬂy right. The more the joystick is pushed away from the center position, the faster the aircraft will move. Copyright ©2023 Veeniix All Rights Reserved.
Page 46: Optimal Transmission Zone
Once the aircraft restarts, it will change back to the American hand’s control. 4.4 Optimal Transmission Zone The signal between the drone and the remote controller is most reliable when the antennas are positioned in relation to the aircraft as shown below. Copyright ©2023 Veeniix All Rights Reserved.
Page 47 ﬂight to achieve the best communication effect. Please ﬂy in an open and unobstructed area. Radio signal recovery will interfere with the surrounding environment or obstructions. Fly the aircraft to its highest altitude when ﬂying long distances. Copyright ©2023 Veeniix All Rights Reserved.
Page 48: Veeniix Fly App
Guide Click GUIDE to view the help manual, learn to ﬂy, safty disclaimer, quick guide, quick start. Check out the ﬂight instructions for V11 on Veeniix YouTube channel. Contact us: veeniixtoy@gmail.com Copyright ©2023 Veeniix All Rights Reserved.
Page 49: Camera View
System settings include ﬂight range settings, data recording, English and metric unit switching, route display, reminder information and voice prompt settings. 4.Attitude Indicator Display information of the orientation of the aircraft, and position of the remote controller. Copyright ©2023 Veeniix All Rights Reserved.
Page 50 DS : Distance speed VS : Vertical speed DS 0.0 VS 0.0 1 . SD card capacity display 2 . Format : When loading the SD card cannot recognize or save the ﬁle,click 3GB/ 14GB to format it Copyright ©2023 Veeniix All Rights Reserved.
Page 51 Ges record Click to recognize your gesture automatically record Waypoints Flight Refer to page 26 for detail explanation Filter Select a ﬁlter for your photo or video Camera Proﬁle Camera zoom Optional 5x zoom Copyright ©2023 Veeniix All Rights Reserved.
Page 52 65ft (20m). It is recommended to set the height higher than the surrounding obstacles. Track Footprint: Total number of aircraft ﬂying area. All ﬂight records: The date, location, distance, duration and maximum altitude of each ﬂight. Copyright ©2023 Veeniix All Rights Reserved.
Page 53 When the horizontal Angle of the aircraft gimbal deviates, the user can ﬁne-tune or correct the Angle of roll and pitch Angle, and the need to place the aircraft horizontally when correcting or ﬁne-tuning. Or restore factory settings. Copyright ©2023 Veeniix All Rights Reserved.
Page 54 Flight ﬁrmware upgrade: An upgrade will be automatically displayed when a new ﬂight ﬁrmware is released. Normally, no upgrade is required. Wi-Fi & UAV Version: It only shows when it's connected to the aircraft and remote controller. App Version Copyright ©2023 Veeniix All Rights Reserved.
Page 55 3.Allow Veeniix Fly to access to albums, recordings and other permissions. When using the Veeniix Fly on your phone, please keep your phone running smoothly and close other background software that you do not use. The map used in the map interface needs to be downloaded from the Internet.
Page 56: Flight
ﬂying. The ﬂight altitude is limited to 393ft, and the local laws and regulations must be strictly observed during ﬂying. Please be sure to read the Veeniix V11 Flight Guide & Safety Disclaimer, and understand the safety precautions before ﬂying.
Page 57: Pre-Flight Checklist
6. Make sure the GPS search is complete and 4 motors can start normally after power-on, and the rotation speeds are consistent. 7. Make sure to peel off the camera protective ﬁlm and the camera is clean. Copyright ©2023 Veeniix All Rights Reserved.
Page 58: Pairing Remote Controller With Aircraft
When using the mobile device holder to hold a mobile phone, be sure to press it ﬁrmly to prevent the mobile phone from slipping off. Keep the battery level at around 50-60%, and recharge it every month or so to keep the battery active. Copyright ©2023 Veeniix All Rights Reserved.
Page 59: Remote Controller Cable Connection
Please correctly set the USB Settings option that pops up. Select "Transferring ﬁles" for Android phones, and "Trust" for iphones. Copyright ©2023 Veeniix All Rights Reserved.
Page 60 Some USB Settings of Android phones are hidden in the “Developer options”, you need to change the "Default USB conﬁguration" to " Transferring ﬁles" after opening the developer mode. Copyright ©2023 Veeniix All Rights Reserved.
Page 62: Compass Calibration Before Flight
1 lap until the App interface prompts to enter the vertical calibration. (No ﬁxed direction of rotation required.) Please keep the aircraft ﬂat when rotating horizontally, otherwise it will take more turns to complete the calibration. (Figure 2 Vertical Rotation) Copyright ©2023 Veeniix All Rights Reserved.
Page 63 App. When the interference value is close to 120, it will prompt the compass calibration. At this time, we can manually calibrate the compass or change the place of ﬂight. When the interference value exceeds 180, the aircraft will force entry into compass calibration. Copyright ©2023 Veeniix All Rights Reserved.
Page 64 Turn the remote controller joystick to 1 o'clock and 11 o'clock and hold for 2 seconds (as shown in Figure 3). When the indicator light of the aircraft turns pink, the calibration step will be entered. Copyright ©2023 Veeniix All Rights Reserved.
Page 65: Gyroscope Calibration
When the aircraft's ﬂight state is tilted and unstable, please land the aircraft on a level ground for gyroscope/horizontal calibration. Horizontal correction cannot be performed when the fuselage is tilted more than 10 degrees. Copyright ©2023 Veeniix All Rights Reserved.
Page 66: Starting/Stopping The Motors
Push the joysticks into 5 & 7 o'clock position to start the motors. Please release the joysticks immediately after the motors starts rotating. SPEED Method 2: Click the App interface Auto Takeoff/Landing icon swipe to unlock the motors. Method 2 Copyright ©2023 Veeniix All Rights Reserved.
Page 67 Please land the aircraft on a ﬂat ground to avoid damage caused by uneven landing. Manual pull-down control of the left joystick will take a long time to land. It can be released only after the propellers stop rotating completely. Copyright ©2023 Veeniix All Rights Reserved.
Page 68: Auto Takeoff/Landing
Auto Landing. This function is an in-situ automatic descent function, suitable for use in close visual range. Please do not use it from a long distance to cause loss of the drone. Copyright ©2023 Veeniix All Rights Reserved.
Page 69: Basic Flight
6.After the gyroscope calibration is completed, connect the RC cable of the remote controller to the mobile phone. 7.Open the Veeniix Fly App and enter the CONTROL interface. 8.After the GPS signal search is completed, the lights of the aircraft will steady on.
Page 70 4.Push the joystick as little as possible during the ﬂight to make the aircraft ﬂy smoothly. Awareness of ﬂight safety is very important for the safety of you, the surrounding people and the environment. Please read the "Flight Guide & Safety Disclaimer" carefully. Copyright ©2023 Veeniix All Rights Reserved.
Page 71: Specifications
Mobile Device Holder: 4.7-6.7 inches (Mobile phone screen size) Charging Temperature: 32℉-104℉ (0℃-40℃) Camera FOV: 100° (Horizontal) Equivalent Focal Length: 60CM Focus: Fixed-focus Feature: Electric Image Stabilization (EIS) Photo Format: JPG Video Format: MP4 Copyright ©2023 Veeniix All Rights Reserved.
Page 72 Battery All of the above accessories can be searched and purchased on Amazon, and you can enter the Veeniix store to buy them yourself. Be sure to use original accessories. The use of non-original accessories may cause danger to the safe use of the aircraft.
Page 73: Common Questions And Solutions
7.3 Common Questions and Solutions V11 Common Questions and Solutions Questions Solutions Reasons Turn on the aircraft in an open area with Without GPS signal or strong GPS signal, 3 bars or more to weak GPS signal unlock takeoff. Low battery power. Please charge the Red lights ﬂashes...
Page 74 GPS signal is weak Under the tree, next to the Please stay away from obstacles for more than 32.81 feet(10 meters), and search for building, in an obstructed place GPS signals in an open area Copyright ©2023 Veeniix All Rights Reserved.
Page 75: After Sales Support
Contact veeniixtoy@gmail.com to learn more about after-sales service policies, repair services, and support. If you have any questions or suggestions about the User Manual, please contact us at the following email address: veeniixtoy@gmail.com Veeniix Copyright © 2023 Veeniix All Rights Reserved Copyright ©2023 Veeniix All Rights Reserved.
Page 76 CONTACT US FOR MORE TECH SUPPORT WhatsApp: +86 18928013876 Mon-Sun 6PM-4AM(PST) veeniixtoy@gmail.com...
