- Page 1 V20230615 Fluid Transfer Pump User Manual Read Carefully Before Use Keep for Future Reference...
-
Page 2: Safety Information
Safety Information Warning! • ONLY use this pump in accordance with these instructions, all applicable local and national laws, and for its intended purpose, transferring fuel and other liquids. • DO NOT allow use by children or those unfamiliar with this product or the safe handling of the fluids being transferred. -
Page 3: Parts List

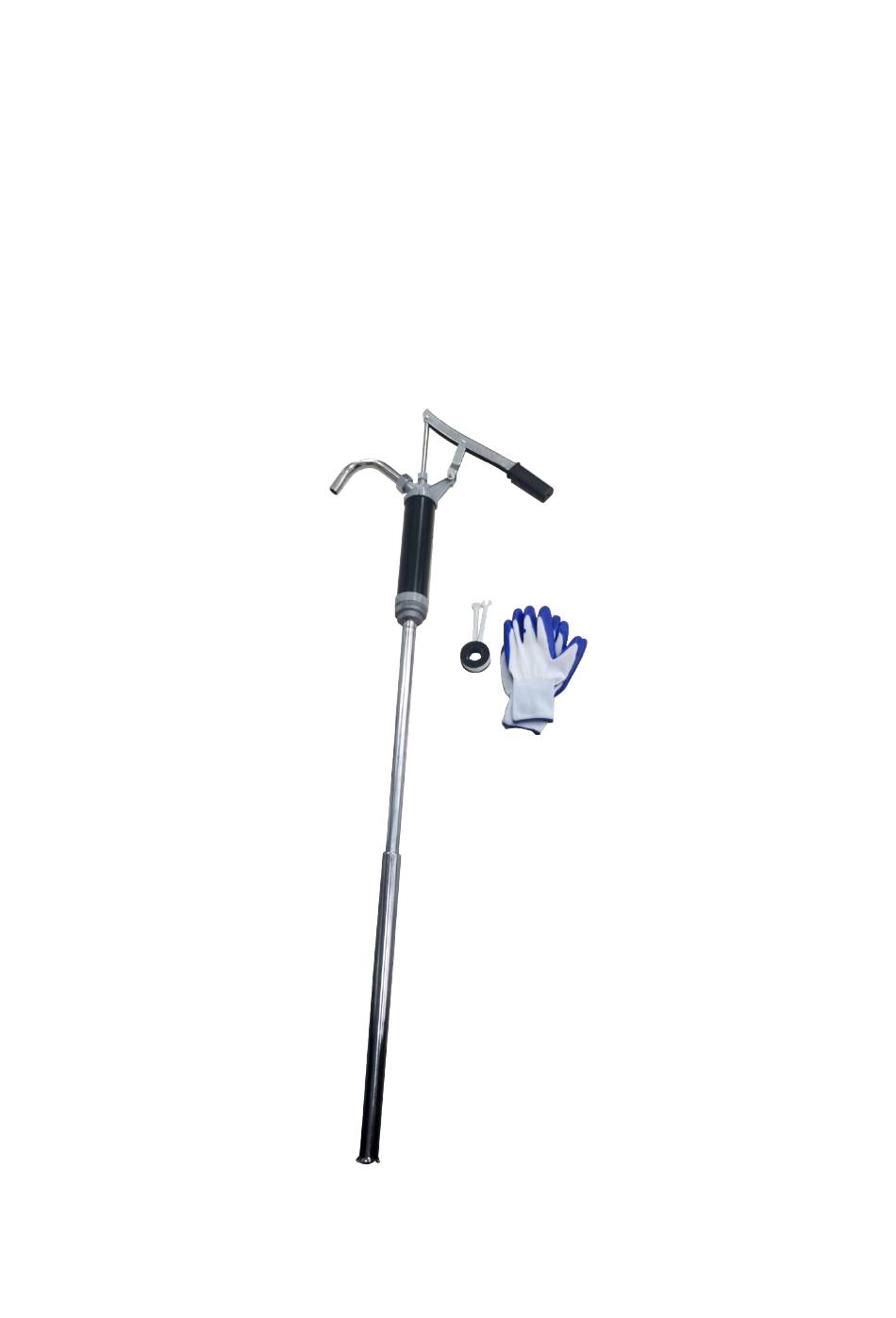

Parts List Name Qty. ¾″ Spout Lever Handle Telescoping Suction Tube Pump Body M5 Nut M5 Bolt Wrenches Thread Seal Tape Gloves Not Included but Necessary Adjustable Wrench, Pliers Product Diagram Plunger Rod Upper Bolt Lower Bolt Spout Lever Spout Nut Support Bracket Angled Outlet Main Body... -
Page 4: Operation
Assembly 1. Apply some thread seal tape (H) around the angled outlet located on top of the main body (D). Take the spout (A) and check that its rubber gasket is well positioned. Screw the spout directly onto the taped outlet. Tighten the spout’s nut securely with your adjustable wrench (not included). - Page 5 Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at support@orionmotortech.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
- Page 6 O T P - A 0 0 1 - 0 0 Rev. 15 Jun. 2023...
