STRICH AB-Y Owner's Manual

Congratulations on your ownership othis eftect pedal. Before using the pedal, please carefuly read the manual, which offers important information
concerning how to properly operate the unit.

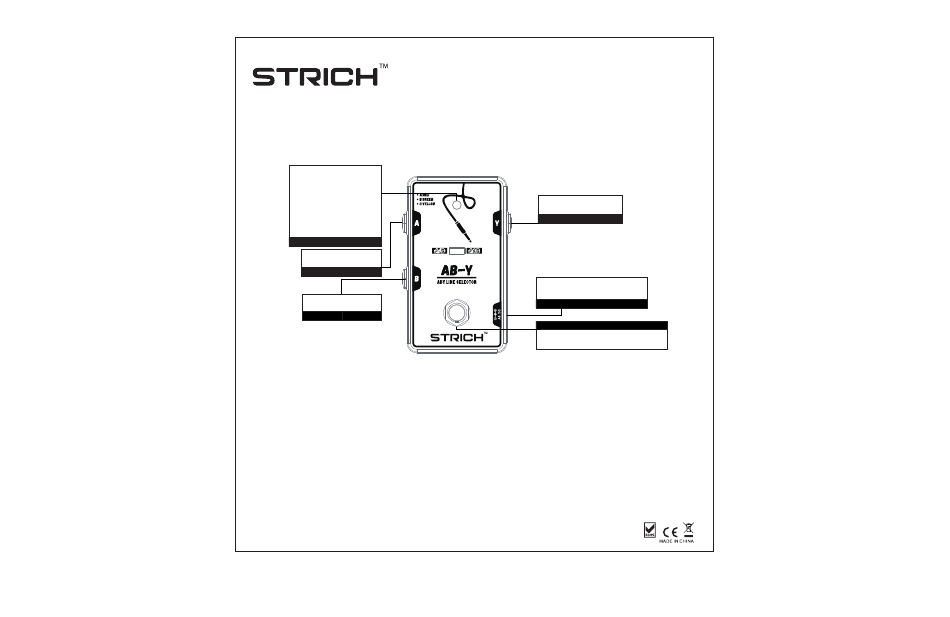

Indicates channel A or
channel B of Micro ABY.
Channel A corresponding
to the red LED and channel
B corresponding to the green
LED, both A and B channels
corresponding to the yellow
LED. LED won't be lit up
without power supply.
A/B LED
1/4"mono audiojack, for
connecting amps.
A Jack
1/4"mono audiojack, for
connecting amps.
B Jack
Precautions When Connecting
·To prevent malfunction and/or damage to speakers or other devices,
always turn down the volume, and turn off the power on all devices
before making any connections.
·Some connection cables contain resistors. Do not use cables that incorporate
resistors for connecting to this pedal. The use of such cables can cause
the sound level to be extremely low, or impossible to hear. For information
on cable specifications, contact the manufacturer of the cable.
·Raise the amp volume only after turning on the power to all connected
devices.
·Once the connections have been completed, turn on power to your various
devices in the order specified. By turning on devices in the wrong order,
you risk causing malfunction and/or damage to speakers and other devices.
When powering up: Turn on the power to your guitar amp last.
When powering down: Turn off the power to your guitar amp first.
AB-Y Owner's Manual
1/4"mono audiojack, for
connecting instruments.
Y Jack
Power input. Using only 9V adapter,
negative tip.
Power
Channel Select Footswitch
Push down the footswitch to switch
between channel A and channel B
Specifications
Input Impedance: Min. 100k Ohm; Max. 350k Ohm
Output Impedance: 300 Ohm
Recommended Load Impedance: 10 kohm
Equival Input Noise: -90 dBu or less
Power Supply: 9V AC adapter
Current Draw: 10mA
Dimension: 115mm(length)x73mm(width)x48mm(thickness)
Weight: 270g
Accessory: Owner's Manual
