Summary of Contents for Hikity 702248574489

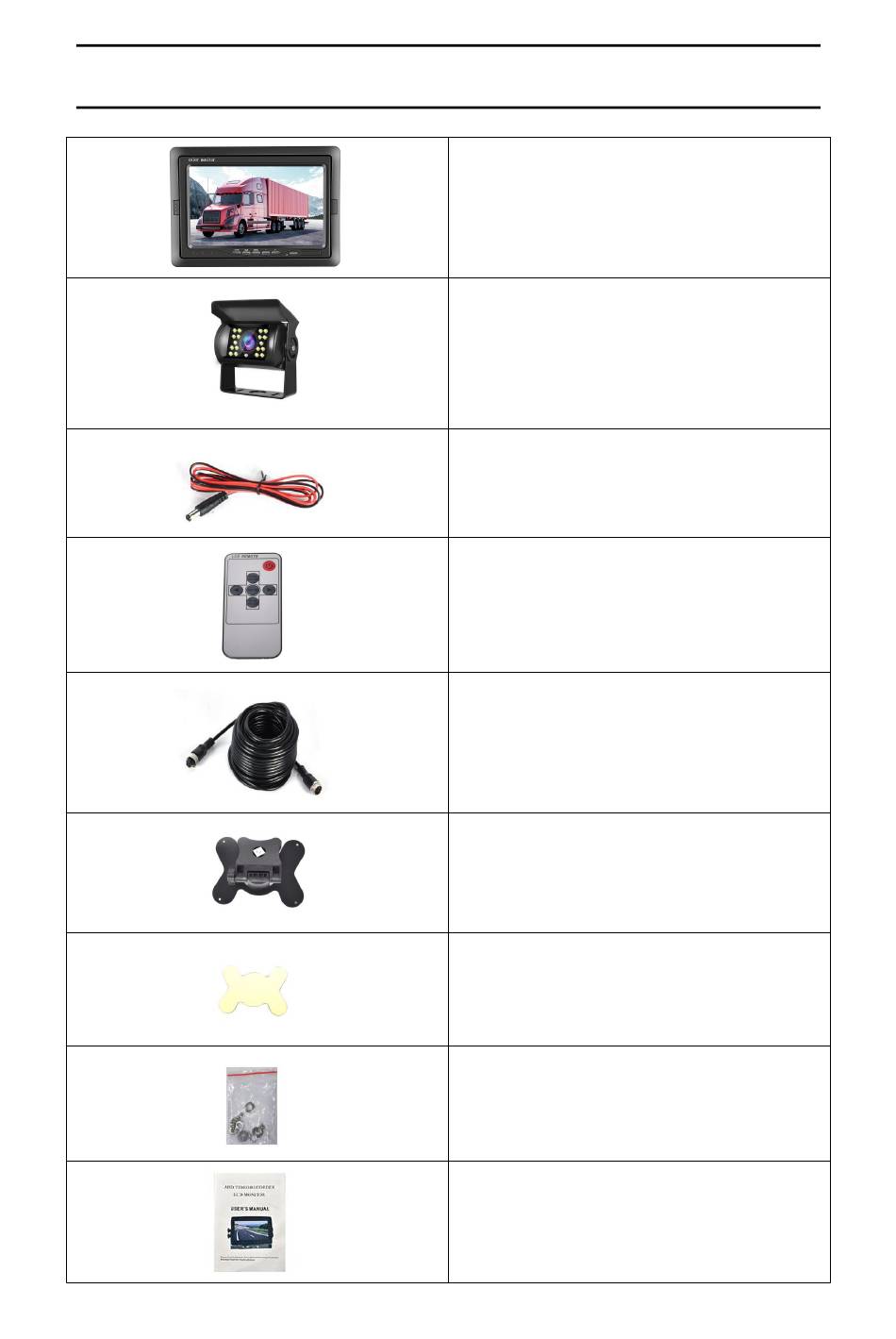

- Page 1 Check Package List Monitor*1 Camera*1 Power cord*1 Remote control*1 Video transmission extension line*1 Bracket*1 Base fixing sticker*1 Camera fixing screws*1 Instructions*1 — 1 —...
- Page 2 Wires Diagram We recommend doing a benchmark test before installation to insure that all components are working properly. Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to recycle the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components.
-
Page 3: Buttons Introduction
Buttons Introduction Button Function Switch video input channel Image flipped Menu Option Key Option Key On/Off — 3 —... -
Page 4: Icon Introduction
Icon Introduction Icon Function Set brightness/contrast/saturation/tint Turn guide line on/off Set image mirror or positive Set language or others — 4 —... -
Page 5: Installation Method
Installation Method Remove the monitor by pressing the side buttons at the same time Install the back cover where you want to install it and fix it with screws (screw accessories are included in the set) Install the display into the shell and you're done —... - Page 6 Remove the monitor by pressing the side buttons at the same time Take out the iron sheet and adjust the bracket to a suitable angle through the adjusting nut Insert the iron sheet into the card slot on the back of the monitor —...
- Page 7 Align the bracket with the iron plate and lock it with the adjusting The stand supports adjusting the angle. The bracket can be fixed with screws or stickers included in the — 7 —...
- Page 8 Remove the monitor by pressing the side buttons at the same time Take out the iron sheet and adjust the bracket to a suitable angle through the adjusting nut — 8 —...
- Page 9 Align the bottom of the monitor with the stand, and use the adjusting nut to lock the monitor and stand The bracket supports left and right torsion and front and rear adjustment angles. The bracket can be fixed with screws or stickers included in the set —...
-
Page 10: Specification
Specification 7-inch Color Monitor Viewing Options Single picture Grid lines Can be switched on/off Resolution 800*480 16:9 Viewing angle Any angle Contrast 350:1 System PAL/NTSC Screen size 154mm*87mm Working current 400mA Operation Temperature -10°C~60°C Storage temperature -25°C~85°C Video Support up for 2 cameras Camera Noise Ratio ( SNR) >69 dB... - Page 11 — 11 —...
