- Page 1 WCCDYZDTG Wireless Audio Transmitter and Receiver C39S User Guide...

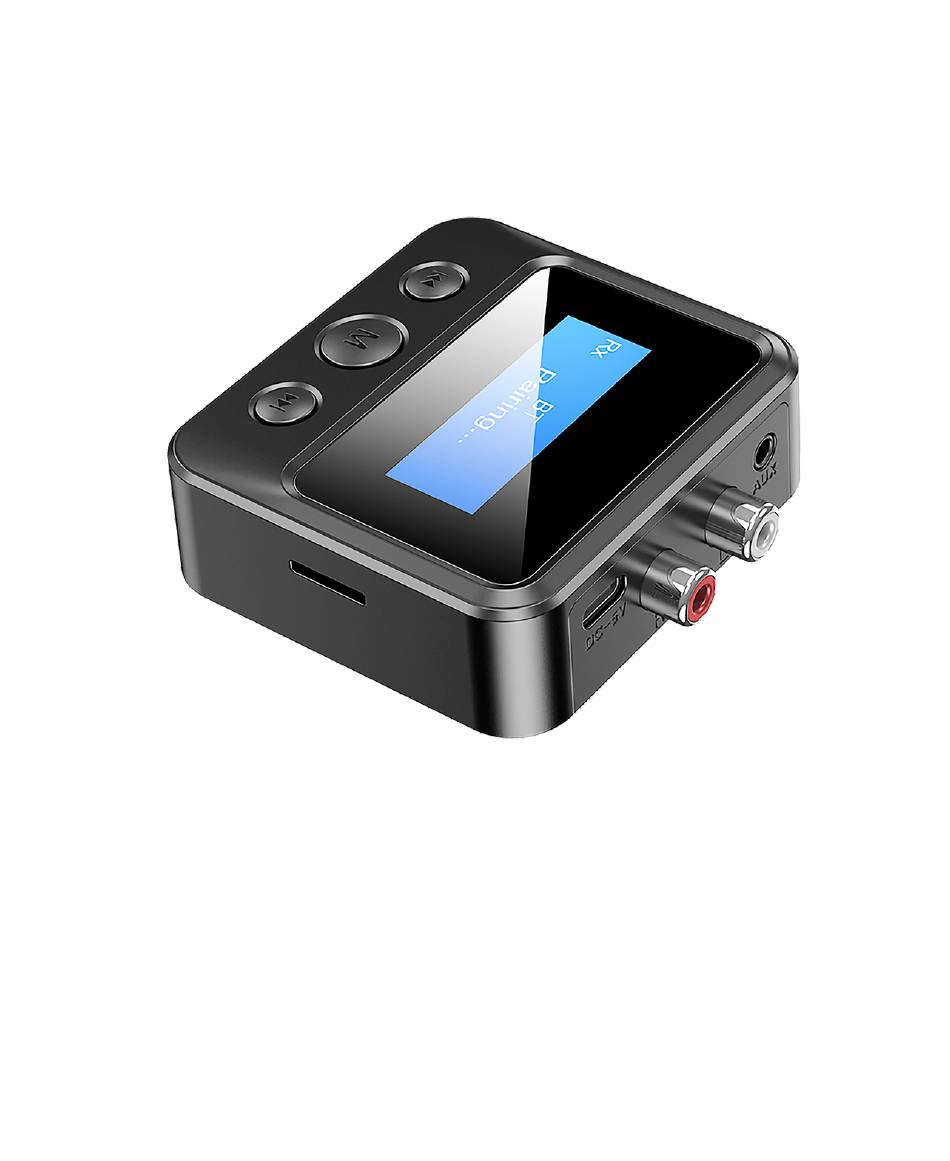

- Page 2 OVERVIEW Thank you for choosing our product. C39S is a compact wireless Bluetooth transmitter and receiver, it can add a more Bluetooth for your old TV, PC, home stereo, or car stereo, make old devices live agian. In transmitter mode (TX), it can encode the wired audio signal from the TV and send it to the Bluetooth headset or speaker in the form of wireless audio.
-
Page 3: Packing List
PACKING LIST Searching... C39S x1 RCA cable x1 USB-C power cable x1 AUX cable x1 TECHNICAL PARAMETER Bluetooth version: 5.0 Bluetooth protocol: EDR, A2DP, HSP, AVRCP Working range: Up to 10 meters in open area Dimensions: 67 mm(L)x 67 mm(W)x 23 mm (H) - Page 4 INTERFACE AND BUTTON Previous LCD Screen Next 3.5mm AUX port TF card slot RCA port USB C power input Primary button control Function Operation Switch TX/RX mode Hold simultaneously Choose music Press Play/Pause/Confirm Press M Search agian Double click M Hold volume down Volume control...
- Page 5 TV and the other end to C39S. Searching... 5V AC Adapter Step2: Pair Switch to TX mode C39S will connect to the device with Pairing... the strongest signal. Headset 01 To change the paired device, double-click the...
- Page 6 Interpretation of Display in TX Mode Searching Bluetooth devices Searching... Pairing with Bluetooth devices Pairing... Input audio source is AUX 9 devices had been found Headset 01 Device 1 has been paired Device 1’s name is Headset 01 In the selection status now 9 devices had been found Choice Headset 02...
- Page 7 Manual restart: Press and hold 'M' for 8 seconds to restart. This operation will clear the memory of C39S, and will enter the TX mode, pair with the device with the strongest signal. Note: Beware of your TV becoming a speaker, If your TV has Bluetooth function already, it's better to turn off the TV's Bluetooth temporarily.
- Page 8 Step2: Pair Bluetooth Now Discoverable As ‘Jack’s iPhone12’ Switch to TX mode MY DEVICES C39S Not Connected Find 'C39S' in the Bluetooth settings of your smartphone and pair. Find‘C39S’ and pair Hold together Switch to RX Step3: Play Now the audio from your smartphone will play by the speaker.
- Page 9 Interpretation of Display in RX Mode Pairing with the Pairing... Bluetooth device Pairing is done Bluetooth device’s name is OnePlus 9 Pro OnePlus 9 Pro TF card mode In RX (receiving mode), once you insert the TF card to the slot, music will be playing immediately.
- Page 10 Connection Diagram TX mode AUX input Wireless audio receiver MP3/ MP4 Wireless speaker Projector RCA input Computer Wireless headphone RX mode Vintage speaker AUX output Amplifier Smartphone RCA output Car stereo - 9 -...
