Summary of Contents for Mr IRONSTONE W6

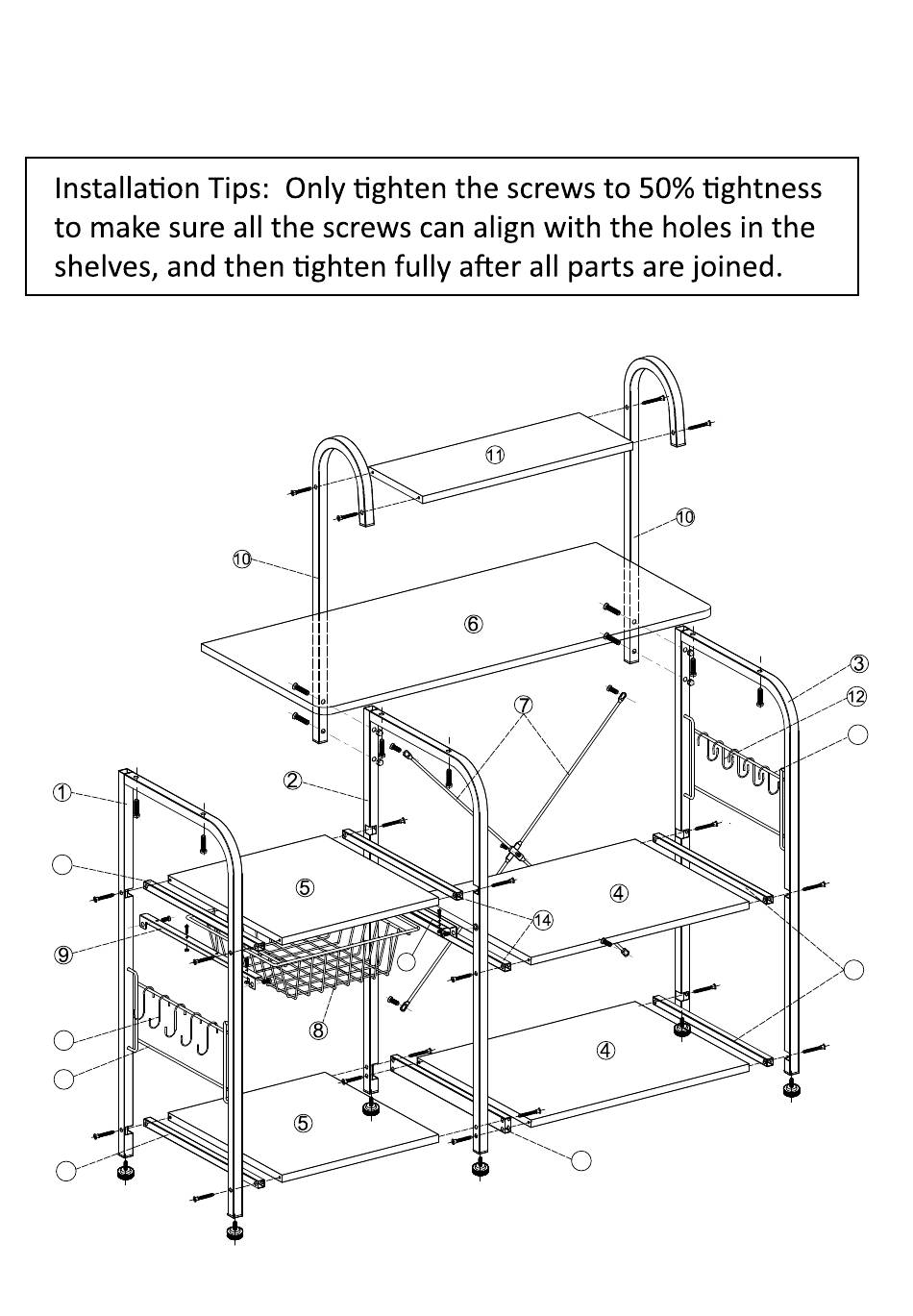

- Page 1 ASSEMBLY OVERVIEW...
- Page 2 PARTS AND HARD WARE LIST (W6) ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION Le� Side Frame ① Middle Frame ② Right Side Frame ③ Right Shelf ④ Le� Shelf ⑤ Desktop ⑥ Cross Bracing ⑦ Metal Mesh Basket ⑧ Short Bar ⑨...
- Page 3 DESCRIPTION M6×30mm M6×12mm T6×40mm x 20 Screw Nut Screw Nut M4×14mm Foot Pad M6×45mm Allen Wrench READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING -OPEN THE HARDWARE AS NEEDED -ASSEMBLE IN AN AREA WITH PLENTY OF SPACE -READ EACH STEP BEFORE BEGINNING CONSTRUCTION -NEVER FORCE THE SCREWS OR FITTINGS -KEEP THIS MANUAL FOR FUTURE REFERENCE -TIGHTEN ALL THE SCREWS EVERY 6 MONTHS...
- Page 4 ASSEMBLY INSTRUCTION (W6) STEP 1 A�ach six Foot Pads(F) to Le� Side Frame ①, Middle Frame ② and Right Side Frame ③. Insert a Side Pole ⑬ into Right Side Frame ③ as shown below. ① ② ③ ⑬ Insert the long side of the Side Pole ⑬...
- Page 5 ASSEMBLY INSTRUCTION (W6) A�ach Middle Frame ② and Right Side Frame ③ to three Metal Poles ⑭, a Double Metal Pole ⑮ and two Right Shelves ④ with eight Screws(C) by Allen Wrench(I). ⑮ ④ ⑭ WARNING:...
- Page 6 ASSEMBLY INSTRUCTION (W6) STEP 3 Insert a Side Pole ⑬ into Le� Side Frame ① as shown below. A�ach two Short Bars ⑨ to Le� Side Frame ① and Middle Frame ② with four Screws(B) by Allen Wrench(I). ⑬x1 ⑨...
- Page 7 ASSEMBLY INSTRUCTION (W6) STEP 4 A�ach Le� Side Frame ① and Middle Frame ② to three Metal Poles ⑭, a Double Metal Pole ⑮ and two Le� Shelves ⑤ with eight Screws(C) by Allen Wrench(I) as shown below. ⑭x3 ⑤x2...
- Page 8 ASSEMBLY INSTRUCTION (W6) STEP 5 A�ach two Cross Bracings ⑦ to Right Side Frame ③ and Middle Frame ② with four Screws(B) by Allen Wrench(I). Using Screw(E) and Screw Nut(D1) to fix the middle of two Cross Bracings ⑦. D1x1...
- Page 9 ASSEMBLY INSTRUCTION (W6) STEP 6 A�ach Desktop ⑥ to Le� Side Frame ①, Middle Frame ② and Right Side Frame ③ with six Screws (A) by Allen Wrench(I). WARNING:...
- Page 10 ASSEMBLY INSTRUCTION (W6) STEP 7 A�ach two Bars ⑩ to Right Side Frame ③ and Middle Frame ② with four Screws(H) and four Screw Nuts(D2). D2x4 WARNING:...
- Page 11 ASSEMBLY INSTRUCTION (W6) STEP 8 A�ach Top Shelf ⑪ to two Bars ⑩ with four Screws(C) by Allen Wrench(I). WARNING:...
- Page 12 ASSEMBLY INSTRUCTION (W6) STEP 9 Place Metal Mesh Basket ⑧ as shown below. Then a�ach Metal Mesh Basket ⑧ to two Short Bars ⑨ with four Screws(E) and four Screw Nuts(D1). Hang ten Hooks ⑫ on the two Side Poles ⑬.
- Page 13 ASSEMBLE ACCOMPLISHED Please fully �ghten all screws by Allen Wrench(I) a�er comple�ng all the above steps. Finally, the installa�on is complete. ATTENTION: IF YOU ENCOUNTER ANY PROBLEMS DURING ASSEMBLING, PLEASE FEEL FREE TO CONTACT US FOR HELP! Ix 1...
