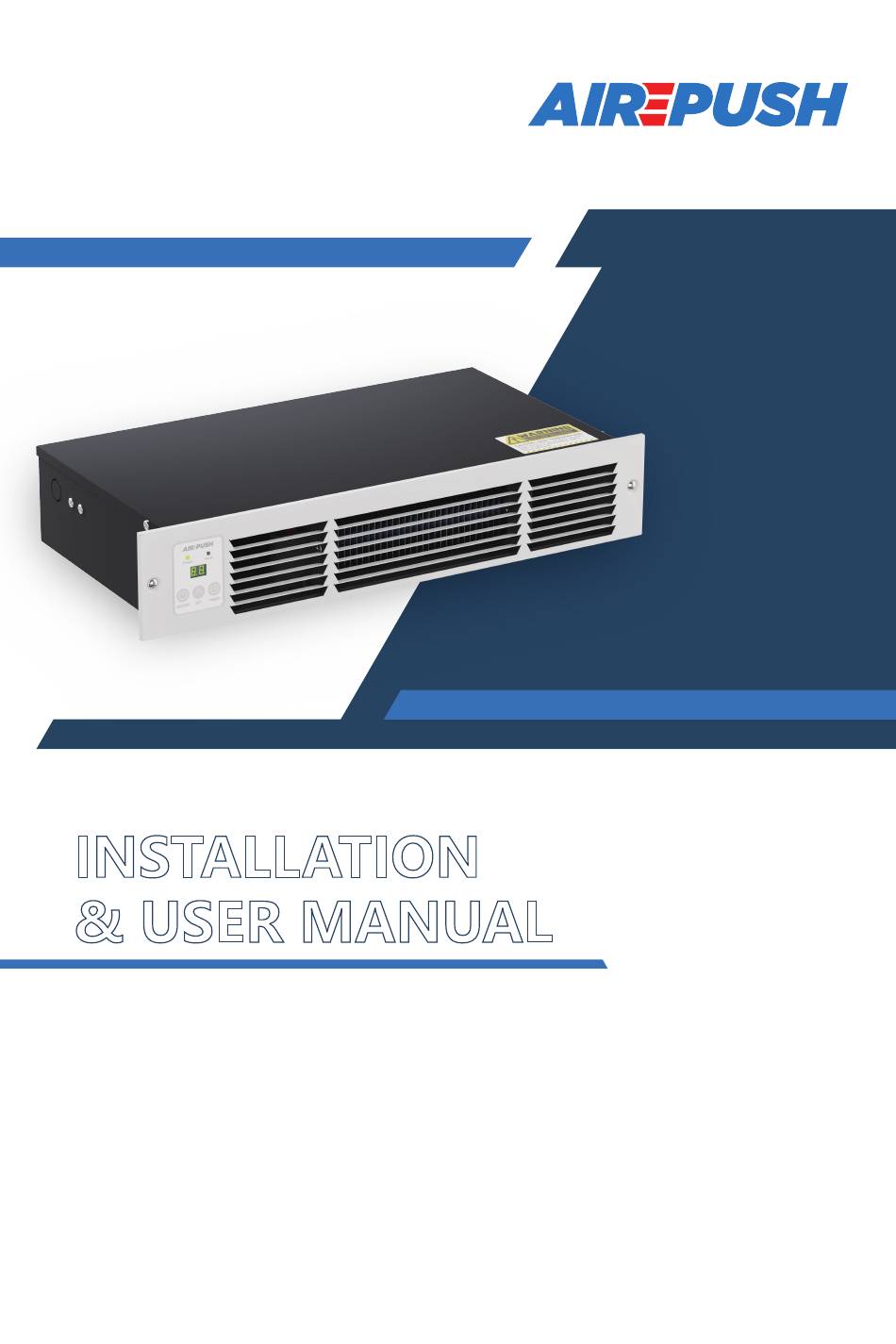

INSTALLATION

& USER MANUAL

Please read and save manual.

Thank you for purchasing this AIREPUSH product.

Please read manual carefully before attempting to install, operate, or

service the products. Failure to follow the instructions may result in

personal injury or property damage.

Please retain this manual for future reference.

Kickspace

Heater

Model : HTA15

Table of Contents

Need help?

Do you have a question about the HTA15 and is the answer not in the manual?

Questions and answers

Summary of Contents for AIREPUSH HTA15

Page 1 INSTALLATION & USER MANUAL Please read and save manual. Thank you for purchasing this AIREPUSH product. Please read manual carefully before attempting to install, operate, or service the products. Failure to follow the instructions may result in personal injury or property damage.
Page 2: Table Of Contents
Contents Safety Considerations ............1, 2, 3 Description ................... 3 ................3, 4 Unpacking Dimensions ................... 4 Speciﬁcations ................5 Installation ................5, 6, 7 ................8 Programming Maintenance ................9 Wiring Diagram ................. 10 Warranty ................10, 11...
Page 3: Safety Considerations
Safety Considerations WARNING To reduce the risk of ﬁre, electric shock or personal injury, please observe the following: Please use this equipment in the manner prescribed by the manufacturer. ● If you have any questions, please contact the manufacturer. Installation work and electrical wiring must be completed by qualiﬁed ●...
Page 4 Safety Considerations Paint, plaster, sawdust and drywall sanding dust must be kept out of ● heater. If necessary to disconnect the heater, switch oﬀ the controller and ● disconnect power to the heater circuit at the main disconnect switch panel (or operate the internal disconnect switch, if available). Do not insert or allow foreign objects to enter any ventilation or exhaust ●...
Page 5: Description
Please be sure to save the above safety considerations！ Description AIREPUSH Kickspace Heater, also known as Plinth Heater, are designed to provide a unique yet purposeful solution to those “hard-to-heat” areas. This unit is only 3⅘” tall, perfect tuck under the cabinet kickspaces, vanity bases, stairways, or any place where space is limited.
Page 6: Dimensions
Unpacking HTA15 Kickspace Heater Panel Mounting Screws (X2) Installation & User Manual Dimensions 18 ⅕” 20 ⅕” 10”...
Page 7: Specifications
Speciﬁcations MODEL CAPACITY COVERRAGE AIEA WATTS VOLTS AMPS HTA15 5200 BTU/h 100-150 sq.ft 1500 120/240 12.5/6.3 Installation Installation work and electrical wiring must be done by a qualiﬁed person(s) in accordance with all applicable codes and standards, including ﬁre-rated construction codes and standards.
Page 8 Installation Step 1: Cut a 18 " x 3 ⅔" (463 x 93 mm) opening in the location to ⅕ be installed, keeping the clearance area clear of obstructions, remove the cover from the heater housing, and remove the screws from the cover. (Fig.1) (Fig.1) Step 2: Determine which opening...
Page 9 Installation Step 3: Route the ﬁeld wiring POWER: 120V/240V 60Hz through the clip-on cable connector, leaving 3" (76mm) of wire inside the junction box and GROUND into the heater's terminal strip. WIRE Note: be sure to ground, and route your ﬁre wire(L) into correspondence with the black wire, your zero wire(N) into correspondence with the white...
Page 10: Programming
Programming ⑤ ⑥ ④ ① ② ③ 1. Power Button 2. Temperature Setting Button Click to power on or oﬀ the Set the target temperature, heater. single click to adjust up 5 ℉, long press to quickly adjust up the temperature. (Range: 40℉-95℉) 3.
Page 11: Maintenance
All other servicing must be performed by an authorized technician If you have any questions, please consult with our customer service department. (www.airepush.com/warranty; support@airepush.com; (866) 716-8668) CLEANING 1. Disconnecting the power at the main service panel; 2. Ensure that the heating element is cool;...
Page 12: Wiring Diagram
WHITE Warranty AIREPUSH ensure the product components will be free of material defects in workmanship or materials for a period of 1 years following the date of initial purchase of such product by a customer. This warranty is limited to the repair or replacement of defective equipment.
Page 13 This limited warranty is void if defect(s) result from failure to have this unit installed by a qualiﬁed heating contractor. AIREPUSH shall not be responsible for loss of use of any product, loss of time, inconvenience, or damage to other equipment, or any other indirect or consequential damage with respect to property whether as a result of breach of warranty, neglect, or otherwise.
Page 14 Extraordinary Quality Led by AIREPUSH Warranty QR Code www.airepush.com support@airepush.com (866) 716-8668 (8:00 am to 7:00 pm PST), Monday to Friday...
