Summary of Contents for DigiTech CONTROL X

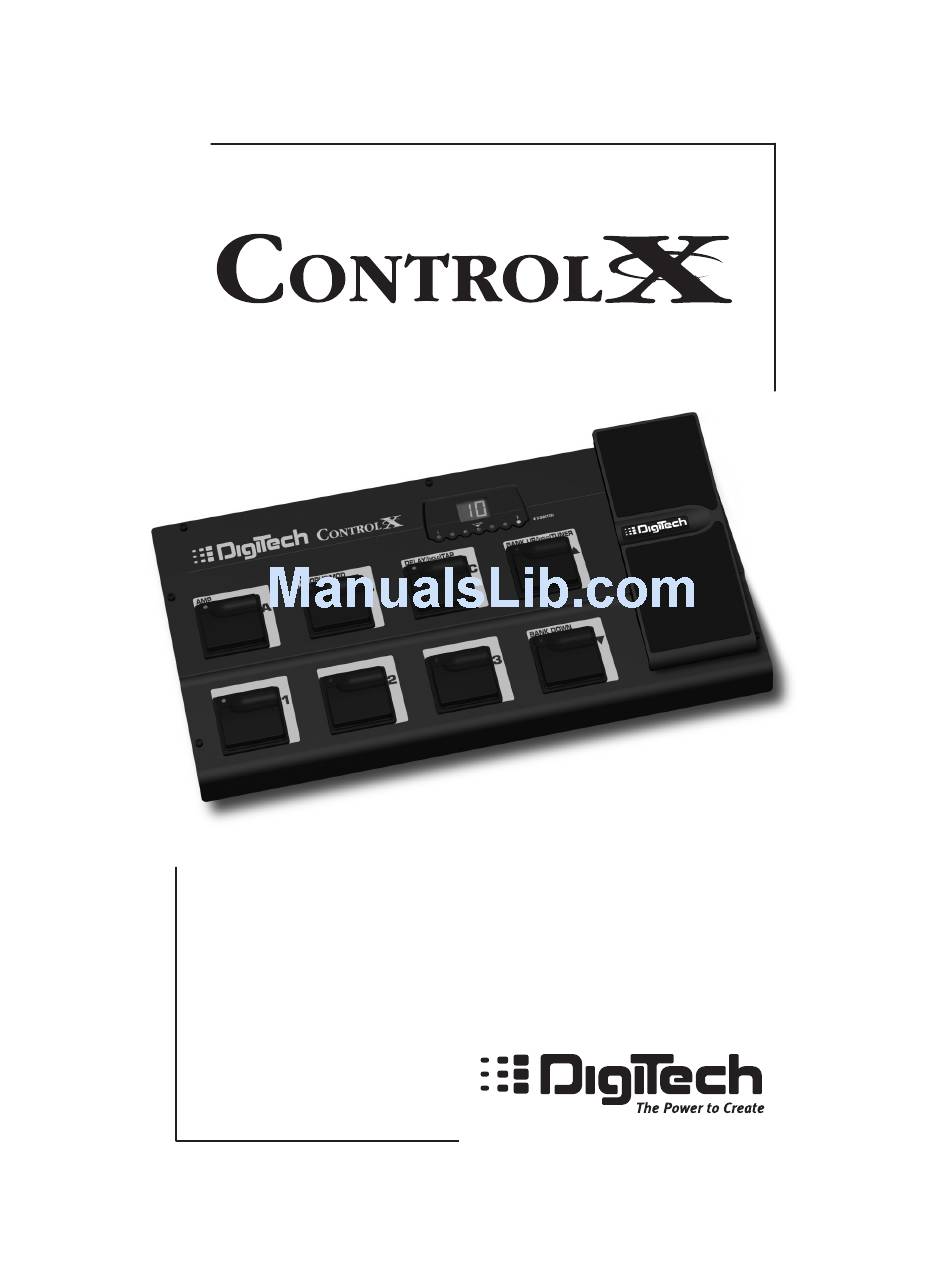

- Page 1 ONTROLLER ’ UIDE...
- Page 2 8760 S. Sandy Parkway Sandy, Utah 84070, USA declares that the product: Product name: Control X Product option: Control X powered by host unit. conforms to the following Product Specifications: Safety: EN 60065 (1993)IEC65 (1985) with Amendments 1, 2, 3...
- Page 3 You have expanded the capabilities of your X™™ processor by purchasing the DigiTech Control X Foot Controller. The Control X is your key to getting the most out of your G X™ processor as it offers real time control over your sound. The Control X includes 8 footswitches, a 2 digit numeric display, tuning LEDs, and an expression pedal, all housed in a rugged steel chassis.
-
Page 4: Front View
Front View IN TUNE V-SWITCH CHORUS/MOD CHORUS/MOD DELAY/( DELAY/( )TAP )TAP BANK UP/( BANK UP/( )TUNER )TUNER HOLD HOLD HOLD HOLD BANK DOWN BANK DOWN 1. Numbered Switches - Select presets within the selected bank on the X™ processor. 2. Bank Down Switch - This switch is used to decrement through banks. 3. -
Page 5: Rear Panel
Rear Panel The rear panel of the Control X has one 5 pin DIN jack used to connect the Control X to the G X™ processor with the supplied 5 pin DIN cable. Connections Connecting the Control X to your G X™... -
Page 6: Expression Pedal
X™ processor. Expression Pedal Calibration Procedure The first time the Control X is connected to a GeNetX™ device, you will need to calibrate the Expression pedal as outlined in the following steps:. 1. Enter the Pedal Calibration menu in the Utility section of your G X™... - Page 7 1. The warranty registration card must be mailed within ten days after purchase date to validate this warranty. Registration can also be done through our website at http://www.digitech.com. 2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
- Page 8 DigiTech, GeNetX™, and C X are trademarks ONTROL of Harman Music Group Copyright 2001 Harman Music Group Printed in the U.S.A. 6/01 Manufactured in the U.S.A. X Manual 18-0445-A ONTROL Please visit DigiTech on the World Wide Web at: http://www.digitech.com...
