Model 3/Y 4.6-inch / 5.16-inch Mini Dash Screen Installation Instruction

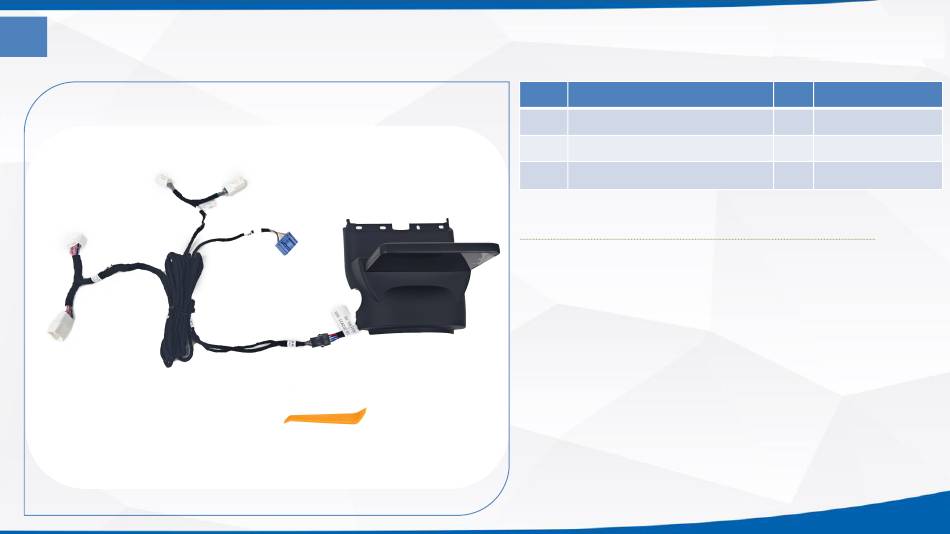

Product List
②
①
③
④
Plug for Intel version
①
Power plug for AMD version
②
CANbus Adapter Plug
③
1. Tools required for installation
Plastic pry tool
2. Installation precautions
- Screen power needs to be turned off before installation
Tip: In order to install more quickly, please read the instructions carefully.
④
4.6'' / 5.16'' display
⑤
⑥
Advertisement
Summary of Contents for Uthlusty B0CB1CPXFD
- Page 1 Model 3/Y 4.6-inch / 5.16-inch Mini Dash Screen Installation Instruction Product List Plug for Intel version ④ 4.6’’ / 5.16’’ display ① Power plug for AMD version ⑤ ② CANbus Adapter Plug ⑥ ③ ② ③ 1. Tools required for installation Plastic pry tool ①...
- Page 2 Inspection Before And After Installation NOTE 1. Check whether the product list is complete and damaged before installation 2. Page 5 is the wiring harness diagram, pages 7 and 8 are the steps for Intel version, and pages 9 and 10 are the steps for AMD version 3.
-
Page 3: Installation Steps
Installation Steps 1. Turn the steering wheel downwards and slide it to the bottom, then turn it to the left and move it to the furthest position. - Page 4 Installation Steps 2. Use a prybar to pry open the cover and remove it.
- Page 5 Installation Steps ④ ① ②/③ Wiring Harness Diagram...
- Page 6 Installation Steps ④ 3. Pry up the upper cover of the driver's footwell, refer to the wiring diagram, and route the wiring harness connector ④ up to the top of the steering wheel. Then, connect it to the screen connector and reinstall the cover.
- Page 7 Installation Steps -- Intel Version 4. Pull wiring harness ① to the side of the passenger footwell, remove the upper cover clips and screws, and take off the cover plate...
- Page 8 Installation Steps -- Intel Version ① 5. Find out the second gray plug above the passenger footwell's host and connect it with adapter plug ①...
- Page 9 Installation Steps -- AMD Version 6. Pull wiring harness ① to the side of the passenger footwell and remove the side cover of the footwell.
- Page 10 Installation Steps -- AMD Version ② ② ③ Model Y Model 3 7. Connect plug ③ to the white 8. Connect plug ② to the blue plug under the A-pillar of the plug under the A-pillar of the right front seat. right front seat.
