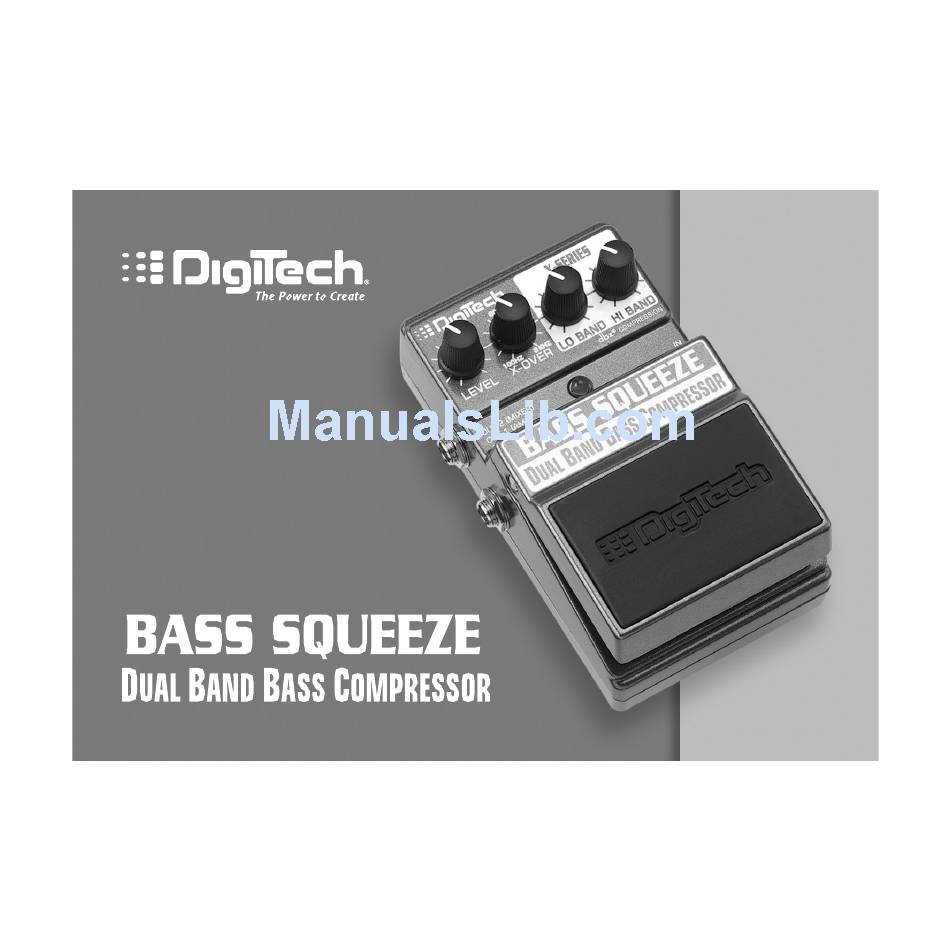

Summary of Contents for DigiTech BASSS QUEEZE
-
Page 2: Declaration Of Conformity
European Contact: Your local DigiTech Sales and apparatus has been exposed to rain or moisture, does Service Office or not operate normally, or has been dropped. - Page 3 6.The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tam- pered with by anyone other than a certified DigiTech technician or, if the product is used with AC volt- ages outside of the range suggested by the manufacturer.
- Page 4 Featuring dbx dynamics processing courtesy of ® DigiTech’s AudioDNA™ DSP engine, the Bass Squeeze provides the versatility you will need for a variety of applications. Whether you are mildly compressing the lows and highs, or doing radical tone shaping, you will find that the Bass Squeeze will be an indispensible part of your rig.
- Page 5 2 3 4...
- Page 6 3. AC Adapter Jack Connect a DigiTech PS200R power supply to this jack. Use the proper supply for your area’s Mains line voltage. 4. LO Band Knob Controls the compression amount of the frequencies below the X-OVER knob’s setting. Turning this knob clockwise increases the amount of compression and level of these frequencies.
-
Page 7: Indicator Led
6. Input Jack Connect your bass to this jack. Connecting a cable to this jack engages battery power even though the Indicator LED may be off. To prolong battery life, disconnect cables from the pedal when not in use. 7. Pedal Release Pins These two pins are spring-loaded hinges that hold the pedal in place. - Page 8 MIXER). The two outputs give you the following options: running into a bass amplifier, running directly to a mixing console or recording device, or both. The MIXER output uses DigiTech’s advance CIT™ cabinet modeling technology for an authentic bass amplifier sound without using an amp.
- Page 9 6.Turn up your amplifier/mixer level to the listening level. 7.Turn on the pedal by pressing the pedal switch, and gradually turn up the LO and HI BAND knobs and adjust the LEVEL knob to a desired listening level.
-
Page 10: Sample Settings
Sample Settings Thick Bottom Glass Top Mild Compression Battery Replacement 1. Using the tip of a 1/4”cable, push one of the release pins in on either side of the pedal, and remove the pedal from the pedal chassis. 2. Remove the battery from the battery compartment and disconnect the battery cable. - Page 11 Pedal Pedal Switch 9V DC Battery Pedal Release Battery Compartment Pedal Release Spring Pedal Chassis...
-
Page 12: Specifications
PH (801) 566-8800 (Mixer) FAX (801) 566-7005 • Input Impedance - 1 MOhms DigiTech and X-Series are trademarks • Output Impedance - 100 Ohms of the Harman Music Group Inc. • Power Supply - 9V Alkaline Dry Battery • Power Consumption - 4.8Watts...
