USER AND ASSEMBLY MANUAL
Tips: It will take 2 people around 120 mins to assemble this product.
!
WARNINGS!
-Misuse and abuse of this product can result in injury.
-Read instructions before assembly or using this product. Retain Instructions.
-Always inspect product before use, checking for worn, defective or missing parts.
Suitable for age 3-8 yrs.
-Do not stand on the dome.
-Assembly by adults.
-Adult supervision at all times.
-Only for outdoor and domestic use.
Before you start assembly please check all parts are included, if any parts are missing or
you need advice, please contact Customer Services: on Amazm Message

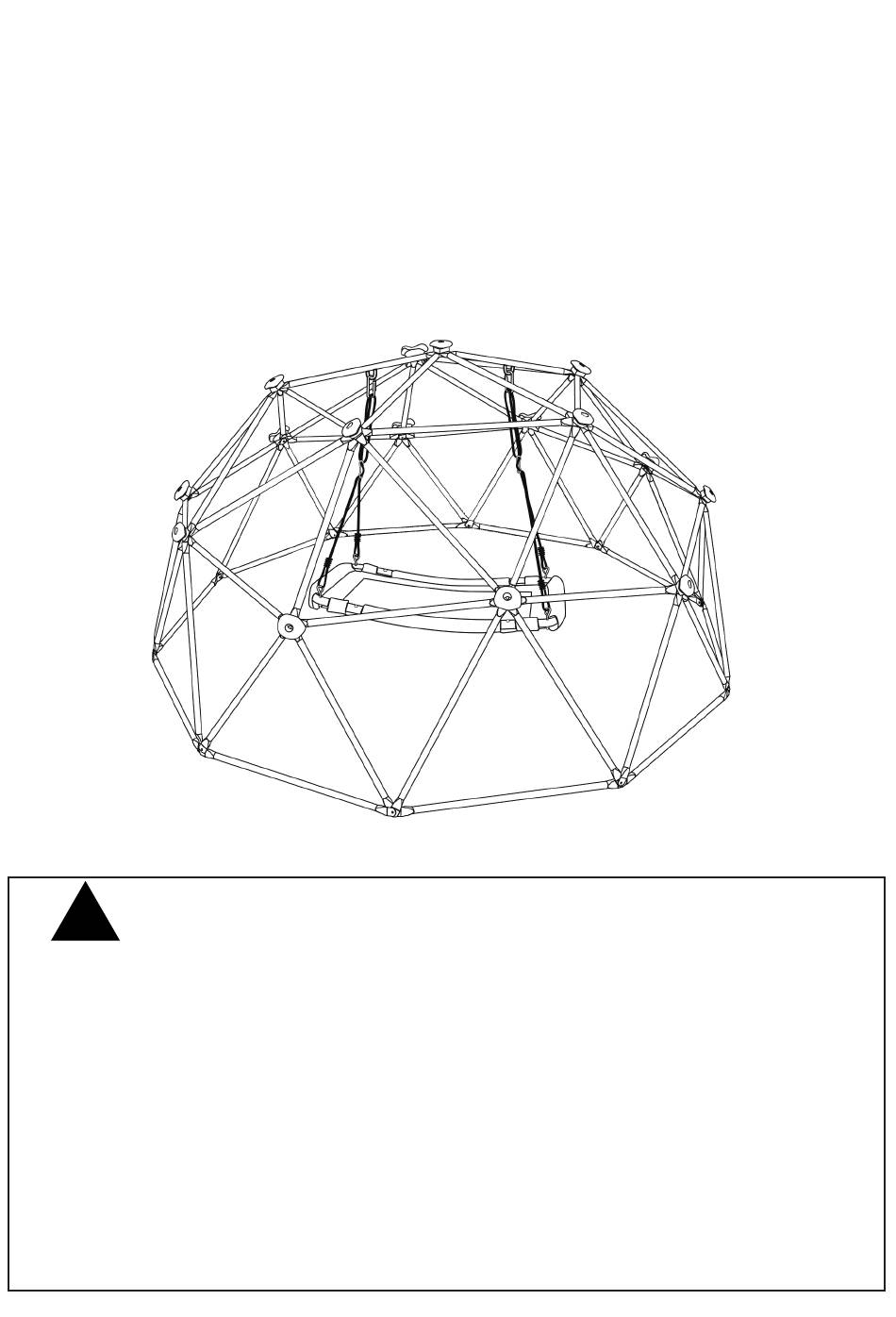

DOME CLIMBER
WITH SWING
MODEL#DC810
Advertisement
Related Manuals for JYGOPLA DC810
Summary of Contents for JYGOPLA DC810
- Page 1 DOME CLIMBER WITH SWING USER AND ASSEMBLY MANUAL MODEL#DC810 Tips: It will take 2 people around 120 mins to assemble this product. WARNINGS! -Misuse and abuse of this product can result in injury. -Read instructions before assembly or using this product. Retain Instructions.
- Page 2 Before you start... We suggest you spend some time reading this guide before following the simple step-by-step assembly instructions. Do not discard any of the packaging until you have checked that you have all parts and fittings listed. When discarding packaging take care and consideration for others and the environment.
- Page 4 PART LIST FOR DOME CLIMBER ASSEMBLY Part No. Description Picture Quantity Green 25*865mm Green 25*865mm Blue 25*960mm Green 22*835mm Blue 22*960mm Rock Climber Anchor RS-L BOLT 5/16” X 1.69in RS-S BOLT 5/16” X 1.18in M8 WASHER (LARGE) M8 SPRING WASHER M8 NYLON NUT M8 ACORN NUT (LARGE) PART LIST FOR SWING ASSEMBLY...
- Page 5 ASSEMBLY step 1 Locate the following 25 pieces of #D steel tubing parts and separate them into five groups of five. Connect 5 pcs of #D steel tube together using #RS-L, #FG and #FN as shown below. Repeat in the same manner to assemble five sets. NOTE: For easier assembly.do not tighten the bolts all the way initially to allow room for adjustment.
- Page 6 ASSEMBLY step 2 Connect two sets of previously assembly #D tubes together with five pcs of #E as shown below. Secure all tubes together with #RS-S, #FG, #SP and #RN as shown in the enlarged diagram. Repeat in the same manner to assemble two sets. Make sure the bolt is protruding inward.
- Page 7 ASSEMBLY step 3 Connect two sets of previously assembly step #D tubes together with three pcs of #E as shown below. Secure all tubes together with #RS-S, #FG, #SP and #RN as shown in the enlarged diagram. Repeat in the same manner to assemble two sets. Make sure the bolt is protruding inward.
- Page 8 ASSEMBLY step 4 Connect one set of previously assembly #D tubes together with seven pcs #E as shown below. Secure all tubes together with #RS-S, #FG, #SP and #RN as shown in the enlarged diagram. Make sure the bolt is protruding inward. RS-S RS-S...
- Page 9 ASSEMBLY step 5 Attach ten pcs of #E to #D and #E using #RS-L, #FN, and#FG, as shown below. Make sure the bolt is protruding outward. RS-L...
- Page 10 ASSEMBLY step 6 Attach two pcs of # A and three pcs # B to # D and #E using # RS-L, # FG and # FN as shown below. Make sure the bolt is protruding outward. RS-L RS-L...
- Page 11 ASSEMBLY step 7 Secure #A and #B tubes together with #RS-L, #FG and #FN as shown in the enlarged diagram. Make sure the bolt is protruding upward. RS-L RS-L -10-...
- Page 12 ASSEMBLY step 8 Attach #CR using #FG, #SP and #RN to all tube connections shown below. NOTE: Use the special socket wrench provided to fully tighten the bolts and nuts. -11-...
- Page 13 ASSEMBLY step 9 Insert the curved frame pole (R4a-1) into the swing mat (6-1). Insert the curved frame pole (R4b-1) into the swing mat (6-1). Connect (R4a-1) and (R4b-1) together to align their holes. NOTE: The curved frame rod (R4a-1) must be pulled hard to get in and out of the swing pad (6-1), this step is best done with two people.
- Page 14 ASSEMBLY step 10 Connect (R4a-1) and (R4b-1) with #B9, #B5, #Z3,#P. Connect (7) and (R4a-1) with #B5, #Z3 and #P. R4b-1 R4a-1 -13-...
- Page 15 ASSEMBLY step 11 Connect #7 to #A. -13-...
- Page 16 ASSEMBLY step 12 Secure the dome into the ground by hammering the 5 anchors #GN into the ground as shown below. Make sure the anchors are fully inserted into the ground to avoid any tripping hazards. Congratulations! You have now completed the product assembly. Please make sure to thoroughly check all parts and hardware to make sure all bolts and nuts are fully tightened and properly installed before allowing children to use.
