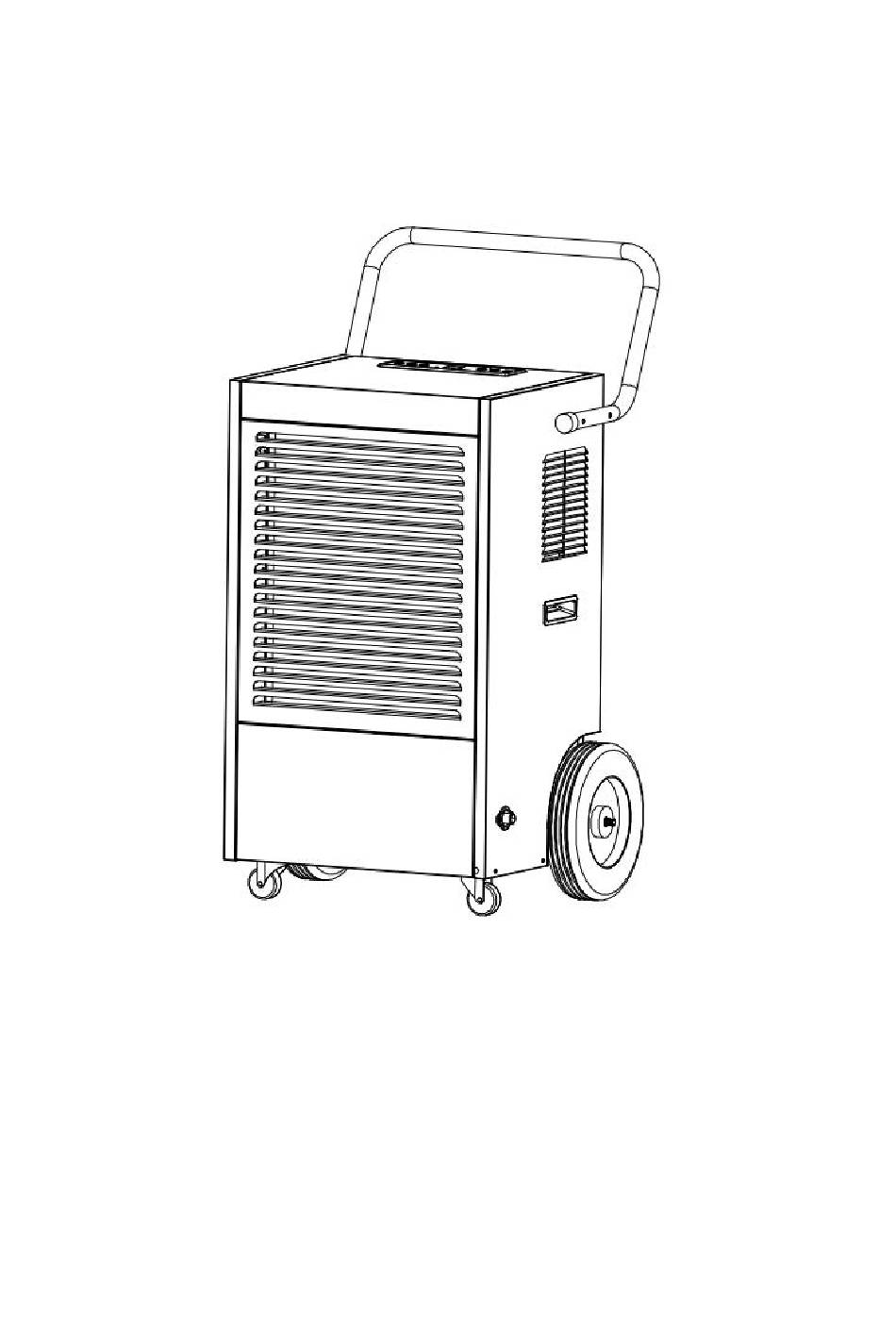

INSTRUCTION MANUAL
DEHUMIDIFIER
Item NO:D4290E
Applicable Model: OL90-D037AE
Please keep this manual carefully for further reference!
Thank you for choosing our high-quality dehumidifier. Please read this manual
carefully before use. The dehumidifier removes excess moisture from the air,
creating a comfortable environment. The compact design allows you to move it
easily from room to room.
Advertisement
Table of Contents
Summary of Contents for Free Village OL90-D037AE
- Page 1 INSTRUCTION MANUAL DEHUMIDIFIER Item NO:D4290E Applicable Model: OL90-D037AE Please keep this manual carefully for further reference! Thank you for choosing our high-quality dehumidifier. Please read this manual carefully before use. The dehumidifier removes excess moisture from the air, creating a comfortable environment. The compact design allows you to move it...
- Page 3 CAUTIONS Please read and obey the following cautions before use: 1. Unplug the power supply before cleaning or storing the machine. 2. Never immerse the machine into water or other liquids. 3. Do not put the machine close to heat-generating devices, flammable and dangerous materials.
-
Page 4: Specifications
SPECIFICATIONS Model# OL90-D037AE Voltage & Frequency AC 115V 60Hz Rated capacity 120Pints/Day @ 80˚F, 60% RH 190Pints/Day @ 86˚F, 80% RH Power Consumption & 1165W/10.2A @ 80˚F, 60% RH Current 1350W/ 12 A @ 86˚F, 80% RH Noise ≤68dB(A) Freon type & Capacity R410A/ 27.5Oz(780g) - Page 5 DRAWINGS Front Control Panel Pushing Handle Air Outlet Air Inlet/Air Filter Hand Clasp Big wheel Continuous Drainage Hole Back Wrapping Post Hand Clasp Grill Big wheel...
- Page 6 OPERATIONS Press this button in the power-on state, screen light will be on and machine automatically goes to continuous mode, display screen shows environmental humidity, compressor will be on after fan runs for 3 seconds; press this button again, compressor stops, double 8 shows “- -”, machine goes to standby mode, fan will run for another minute and then stop.
- Page 7 In normal mode, press this button to decrease the humidity, humidity decrease 5%RH with each press, buzzer rang each time with the press, press the button for 1 second can decrease the humidity continuously; press this button to set the time after press “TIMER”. Note: 1) The default humidity is 50%RH, the increase and decrease is as follow: 20%-25%--30%-35%-40%-45%-50%-55%-60%-65%-70%-75%-80%-85%-90%...
- Page 8 Display Screen: The digital display features the following functions: 1. When the unit is plugged in, it shows ‘--’, the machine is in standby mode. 2. When users press the power button, it shows the room humidity. 3. When users set the humidity, it shows the setting humidity. 4.
-
Page 9: Water Drainage
WATER DRAINAGE Install the included drain pipe to the draining nozzle on the machine and direct the pipe to the desired area before operating the machine. -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Please cut off the power supply before cleaning or maintenance. Cleaning the Machine Body: Clean the machine body with a soft damp cloth. Do not sprinkle water on the unit. Do not use chemical solvent such as benzene, alcohol, gasoline. - Page 11 Dehumidifier Storage: If the dehumidifier will not be used for an extended period, please refer to the following tips: 1. Clean the filter mesh. 2. Attention: The inner evaporator has to be dried out before the unit is stored to avoid component damage and molds.
-
Page 12: Troubleshooting Guide
TROUBLE SHOOTING GUIDE If the following condition happens, please review the list before calling the customer service. Problem Possible Cause Solution Has the power cord Plug in the unit. been disconnected? The unit doesn’t run. The room temperature To protect the unit, please use it only when room temperature is is under 41℉... - Page 13 Thank you for purchasing this product! If you have any questions about the product, such as missing parts, damaged products, product assembling, and operation, please contact us via Amazon Message or customer service number: 213-4467172 or 661-4358826 IMPORTANT Please call our customer service department for any consulting: 213-4467172 661-4358826 (8:30am - 5:30pm P.S.T.)
