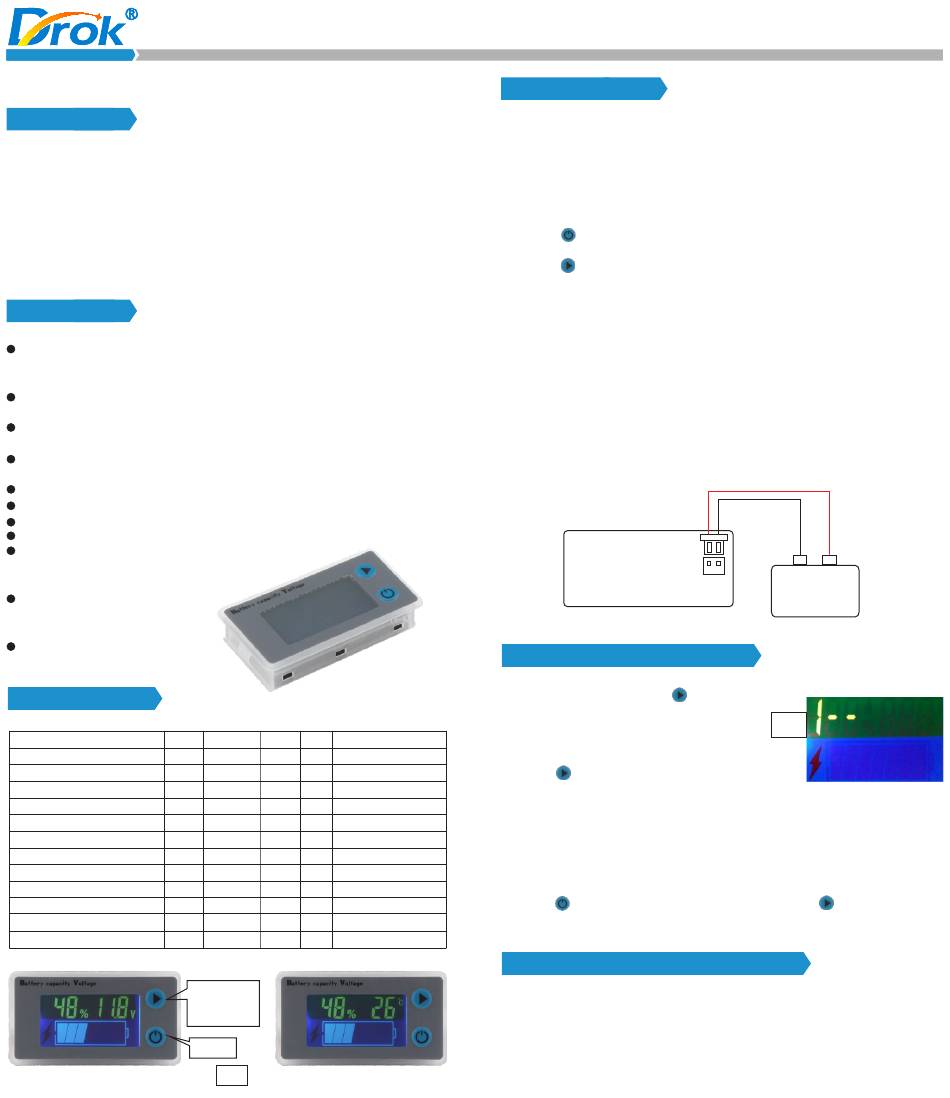

Drok JS-C33 Manual

JS-C33 General Programmable Battery Power Display
SUMMARY:
This product is a general instrument, adopts LCD color screen,
can long-term display the battery, voltage, temperature (Selective
assembly; sound-light alarm (Selective assembly) can be used in
a variety of lighting conditions. The default parameters are suitable
for lithium batteries, lead-acid batteries, lithium iron phosphate
battery, Ni MH battery application field; through the development of
programming, can be applied to any battery, simple wiring, convenient
maintenance and disassembly using standard connector.
FEATURES:
The patented product adopted neutral packaging production,
with simple dustproof waterproof surface, with full protection
cover.
The color liquid crystal material, clear display, display softly at
night.
To customize the type of battery, suitable for lead-acid, lithium-
ion batteries, lithium iron phosphate, metal hydride battery, etc.
To display the percentage of remaining battery power, voltage,
temperature.
The 10~100V wide input voltage, reverse protection.
The product can go to sleep after 10 seconds.
The red indicator flashes to alarm when it is low battery.
The installation is simple, with a buckle, without screws.
The buzzer alarm switch,
alarm voltage setting
(Selective assembly).
The real-time detection
of the battery temperature
(Selective assembly).
Open programming mode
PARAMETER：
Parameter Min
Product size
Installation size
Display size
Weight
20
Working voltage
10
Working consumption
Voltage accuracy
Temperature accuracy
Sleep consumption
6
Working temperature
-10
Buzzer volume 70
Buzzer voltage
11.5
Typical Figure
Max Unit
mm 61.5*33.5*13.5
mm
58.5*28.5
mm
36*19.5
g
21 22
100 V Common
5
6 mA LED ON
±0.1 ±0.5 %
℃ Selective assembly
±0.5 ±1
10 12 uA
℃
25 55
db Selective assembly
75 80
adjustable
100 V
Switch volt or
temperature
display
ON/OFF
P 1
INSTRUCTIONS:
1. PH2.0 terminal conductor, connected to PCB opposite connector
2. External NTC temperature sensor, please put the sensor to measure
the temperature of the parts, do not squeeze the sensor (selective
assembly).
3. Red line to the positive terminal, black line to the negative terminal.
4. After the instrument is powered on, it shows the percentage of the
battery power, the voltage, and battery icon.
5. Press
up the instrument by pressing any button.
6. Press
temperature to display.
7. The battery icon on the display interface, from the right to the left,
are 7 display boxes representing the battery power from low to high.
8. The voltage on the display interface is measured in real time, and
the voltage value is displayed on 10-100V.
9. The percentage on the display interface is the percentage of the
remaining battery power.
10. When the battery is connected to the charger or the discharge
of the large current load, the display parameters will fluctuate
11. The red lightning flashes the alarm when the battery is low
12. Low voltage buzzer alarm (Selective assembly)
13. If the battery specification is special, you can enter the programmable
mode 3-- and reset the upper and lower limits of the battery.
Go into programming mode:
1.Power-on status, press
5 seconds, enter the main menu, as
shown in Figure P2.
2.The main menu has 5 sub menus:
1--, 2--, 3--, 4--, 5--.
3.Press
4.Each function of the 5 sub menu：
1- -: Select built-in preset battery specification: lithium battery, lead
acid battery, LFP battery.
2- -: Setting Delay Time Delay OFF/ON, and select Delay Time
3- -: The voltage of percentage 0 to 100 could be customed.
4- -: Buzzer switch and alarm value setting.
5- -: Calibrate the instrument voltage again.
20V
5.Press
6.All parameters are subject to the last save.
Submenu functions explanation:
1- -: Quick change battery type
Under this menu, you can change the default parameters speedy:
L represents the lithium battery, and the latter figure is the series
quantity;
F represents the lithium iron phosphate battery, and the latter figure
is the series quantity;
to turn off the instrument. In close status, you can wake
in the working status, you can switch the voltage and
red wire
black wire
B+ B-
last about
, and the 5 submenu loops.
, select the menu to enter, long press
SKU:2001710003
-
+
Battery
P 2
to quit.
