Drok 2001708006 Using Instruction

Parameters:
Input Voltage: DC 4.5-24V
Output Voltage: Integrated adjustable and fixed
output (Adjustable range is 0.8-17V, fixed output
are 1.8V, 2.5V, 3.3V, 5V, 9V, 12V that can be
chosen on the back side)
Output Current: 3A max (please enhance cooling
work when it is full load); When real tested input
12V and output is 1.5A, no need to add special
cooling system.
Conversion Efficiency: 97.5% (highest) (6.5V
to 5V, 0.7A)
Switch Frequency: 500KHz
Output Ripple: 20mV(12V to 5V, 3A) 20M width
Operating Temperature: -40℃~ +85℃(Industrial
class) (The higher the operation temperature
is, the smaller the output power is)
Output Over-voltage Protection: no
Temperature rising range at full load: 40℃
Static Current: 0.85mA
Load Adjustment Rate: ±1%
Voltage Adjustment Rate: ±0.5%
Dynamic Response Speed: 5% 200uS
Output Short-circuit Protection: yes, please don't
keep making it short-circuit.
Output Reverse Connection Protection: no
Enable Function Control: yes, Low electric level
will stop working when high electric level is working.
High electric level is 2-5V, low electric level is 0V
or so.
Wiring Method: soldering
Input Method: soldering
Output Method: soldering or pins
Welding Hole Spacing: 2.54mm

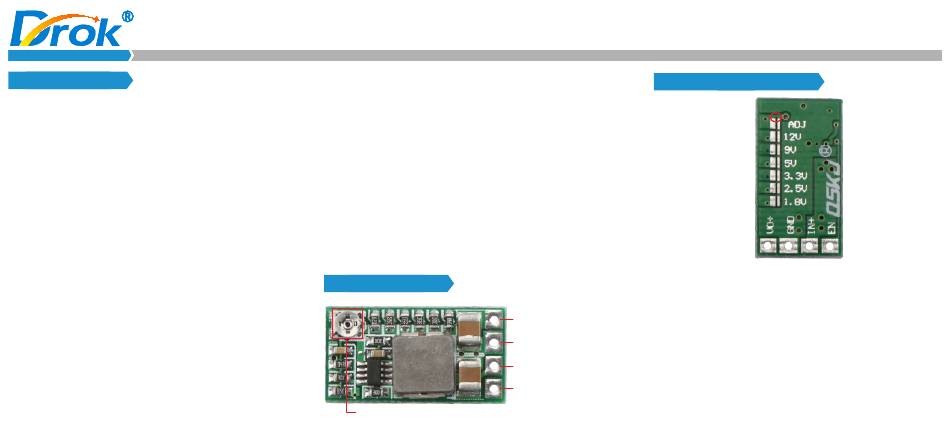

Wiring Guide:
Potentiometer
Using Instruction:
This module defaults adjustable output voltage,
if you want a fixed output voltage like 1.8V, 2.5V,
3.3V, 5V, 9V, 12V, just cut off the connection
marked by red circle, then connect the fixed
Output +
voltage you need by soldering.
Common negative It is easy and simple to make it work. Just directly
connect VO+, GND,IN+ and if there is no high
Input +
and low electric level control, it will be no need
to connect EN. There is a internal Enable control
Enable port
on the IN +, if you want to connect it separately,
please connect it on the EN.
SKU:2001708006
