Flame King ACR-6 Operating Instructions

OPERATING INSTRUCTIONS TO BE RETAINED BY THE USER
A. Specifications
Type of gas:
Outlet Connector:
Inlet Connector:
Outlet Pressure:
Inlet Pressure:
BTU:
Operating Temperature:
B. Installation Instructions
Place the cylinder on a safe and even surface in a safe location. The cylinders
1.
should never be placed in an area that is below ground level, as propane is heavier
than air and will pool in such areas.
Fix the regulator onto a secure place by means of a wall or rigid post or support
2.
column. Make sure the device is always mounted above the height of the tanks.
Connect the hoses from the two tanks to the inlet connectors of the regulator.
3.
Tighten the connectors sufficiently to ensure a leak-tight joint which can be checked by
using a soapy-water solution.
Turn on the gas tanks. Rotate the changeover lever left or right to the full tank. The
4.
arrow on the changeover lever indicates the tank in use; the other one would serve as
the reserve tank.
Operating Instructions
C.
The ACR-6 complies with the standard of UL144, and is a two stage automatic
changeover regulator designed to supply propane gas. The window on the regulator
shows if a gas tank is empty by showing RED in the indicator window or FULL by
showing a Clear Window in the indictor window. If the tank which the changeover lever
is pointing to is empty, the indicator window will show red and the device will
automatically changeover to the full / reserve cylinder. The changeover lever should
then be switched over to the other cylinder (Full cylinder) and the indicator window
should show a Clear Window indicating that you have a full cylinder in this position.
The empty tank can be removed and filled. If the changeover lever is left in downward
position, gas will come out from both tanks simultaneously. When the gas is depleted
in both tanks, then you will have not a reserve. In order to fully utilize the automatic
feature of the regulator, please make sure the changeover lever always points to either
the left hand or right hand tank.

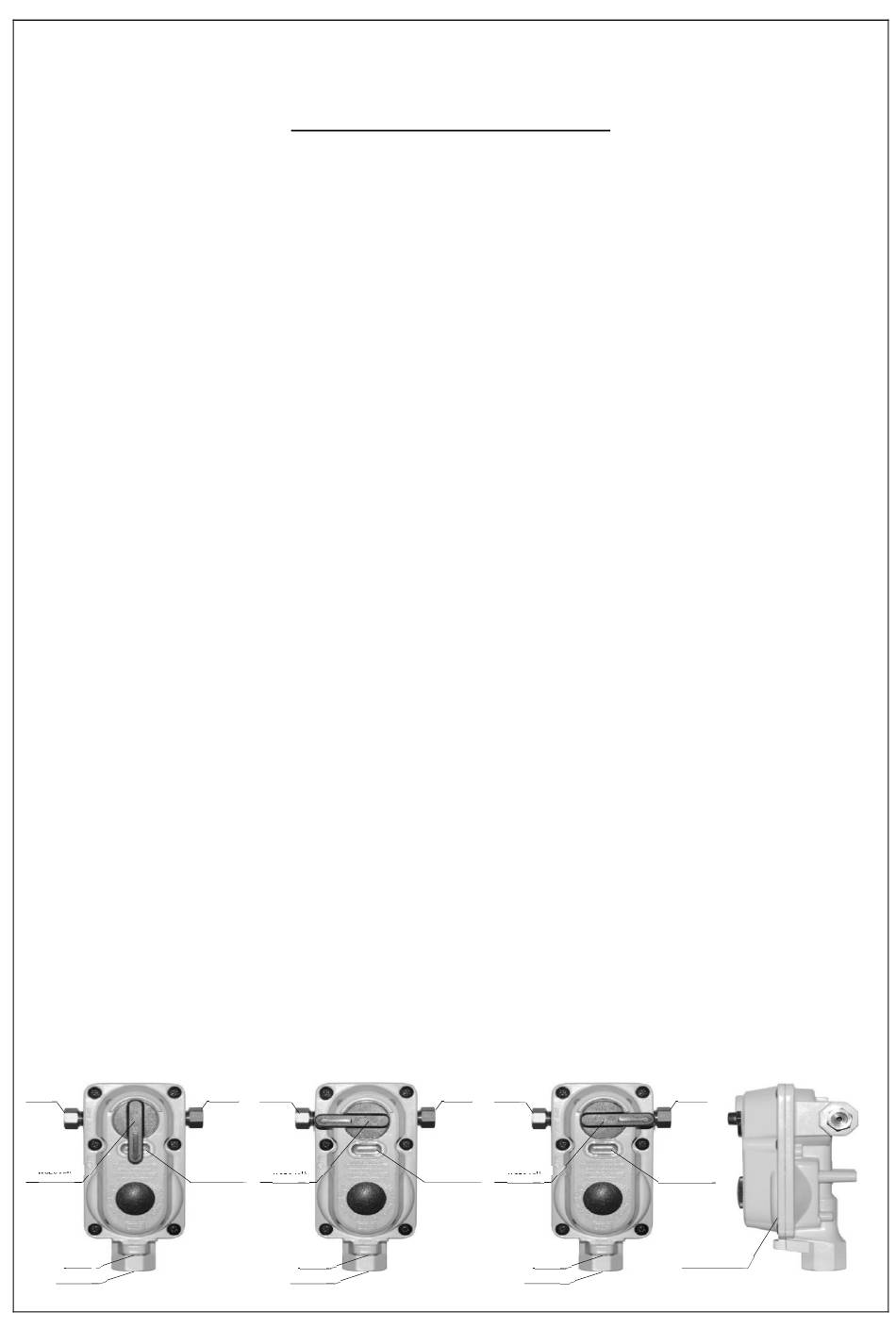

1
INLET
CHANGEOVER
INDICATOR
LEVER
VENT
OUTLET
ACR-6 Automatic Changeover Regulator
Please read carefully before use
Propane
3/8-NPT
7/16-24 UNS-2B-RH
11" WC
25 – 250 psig
345,200 BTU/h
-4ºF ~ 122ºF
2
INLET INLET
CHANGEOVER
LEVER
VENT
OUTLET
3
INLET
INLET
CHANGEOVER
INDICATOR
LEVER
VENT
OUTLET
INLET
INDICATOR
RAIN COVER
