Flame King LEHAVA Manual & Safety Instructions

14-inch, 360 degree rotating non-stick pizza stone
Hide thumbs

Advertisement

Table of Contents

Manual & Safety Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEHAVA and is the answer not in the manual?

Questions and answers

Summary of Contents for Flame King LEHAVA

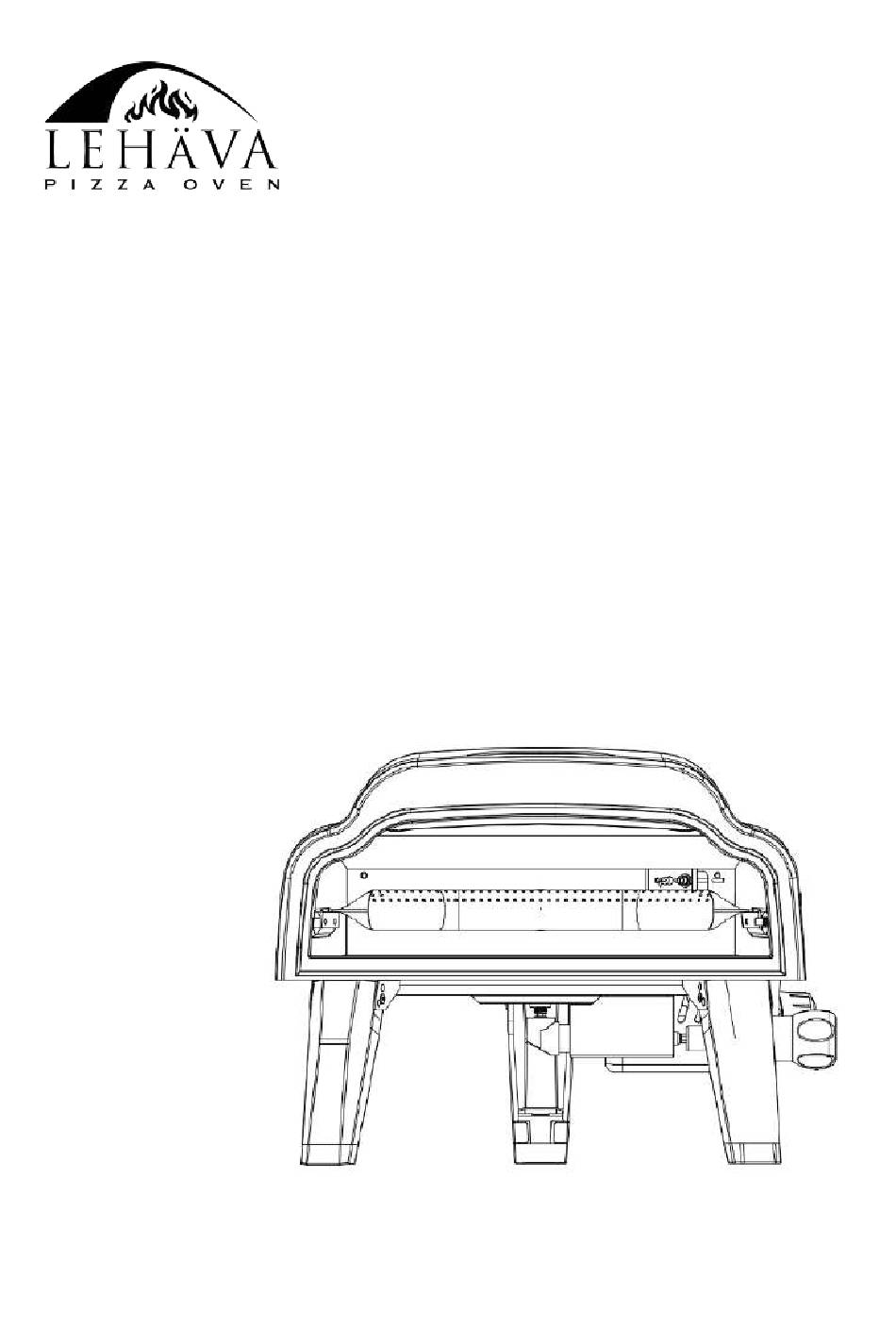

  • Page 1 Manual & Safety Instructions...
  • Page 2 FOR OUTDOOR USE ONLY PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE DANGER If you smell gas: ● Shut off gas to the appliance. ● Extinguish any open flame. ● Open lid. ● If odor continues,keep away from the appliance and immediately call your fire department.
  • Page 3 The installation must conform with local codes or, in the absence of local codes, with Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58; or Natural Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.2. This appliance is not intended to be installed in or on a boat. The use of alcohol, prescription, or non-prescription drugs may impair the consumer's ability to properly assemble or safely operate the appliance.

  • Page 6: Parts List

    PARTS LIST ASSEMBLY Before assembly, make sure all parts are present. If any part is missing or damaged, do not a8empt to assemble the appliance. Contact customer service for replacement parts. 1.Unfold legs . 2.Insert the stone baking board. Lighting Instruction:...

  • Page 7: Safety Instructions

    1. Push down and turn the knob anti-clockwise to HIGH " " position (a clicking sound is heard) to light the burner. If the burner does not light, turn off the gas tap and wait for 5 minutes then repeat this process. 2.
  • Page 8 DO NOT let children operate or play near grill. • DO NOT block holes in bottom or back of grill. • Check burner flames regularly. • • Use grill in well-ventilated space. DO NOT use charcoal or ceramic briquettes in a gas grill. •...
  • Page 9 Important: • When disconnecting and removing the gas cylinder for the purpose of refilling, always observe the following procedure: Ensure that all gas control valves on the appliance and the gas cylinder are turned off before disconnecting the regulator from the cylinder. Do not smoke or use a naked flame near the appliance or gas cylinder while disconnecting the gas line between the appliance and gas cylinder.
  • Page 10 Observe the interior of the pizza oven through the front cover of the pizza oven to see if the flame on the stove head is burning normally, and the flame is light blue. Hose and regulator safety In the event there is an issue with your hose or regulator please contact your BBQ supplier service agent to obtain the approved replacement part.

  • Page 11: Operating Procedures

    SAFE LOCATION - USE OUTDOORS ONL Y This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the appliance is used shall comply with one of the following: •...
  • Page 12 Turning off the grill safely It is best to turn off the cylinder first and allow all the gas remains in the hose to burn off, this will only take a s few seconds. Then turn off all burners. If any burner fails to ignite, turn the control knob off (clockwise) and also turn the cylinder valve off.

  • Page 13: Abnormal Operation

    WARNING! 1) do not store a spare LP gas cylinder under or near this appliance; 2) never fill the cylinder beyond 80 percent full; 3) if the instructions in (b)(xii)(1) and (b)(xii)(2) are not followed exactly, a fire causing death or serious injury may occur.
  • Page 14 Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall the burner, check to ensure that the Gas valve orifices are correctly positioned and secured inside the burner inlet (venturi). We suggest three ways to clean the burner tubes. Use the one easiest for you. a) Bend a stiff wire (a light weight coat hanger works well) into a small hook.
  • Page 15 Cooking Grid Use a mild soapy water solution. Non-abrasive scouring power can be used on stubborn stains then rinse with water. Cleaning the drip tray Always allow for the grill to cool down completely before touching the drip tray. The drip tray should be emptied after each use of the grill.

  • Page 16: Troubleshooting

    purchase of this product. Proof of purchase must be presented To make a claim under the warranty please contact service@dellavita.com.au .The warranty covers manufacturer defects in material, workmanship and finish under normal use. This warranty is provided in addition to other rights and remedies you may have under law.
  • Page 17 Flames blow out. •High or gusting winds. • Turn front of grill to face wind or increase flame •Low on LP gas. height. •Excess flow valve tripped. • Refill LP tank. • Refer to "Sudden drop in gas flow" above. Flare-up.
  • Page 18 but not at all ·Arcing to grill away from ·If possible, observe grill in ·If sparks are observed other electrodes and/or burner(s) dark location. Operate than from burner(s), wire not at full strength. ignition system and look for insulation maybe damaged. arcing between output Replace wires.
