HYTIREBY TCQ-Y003 Manual

Metal detector for kids
Hide thumbs

Advertisement

Table of Contents

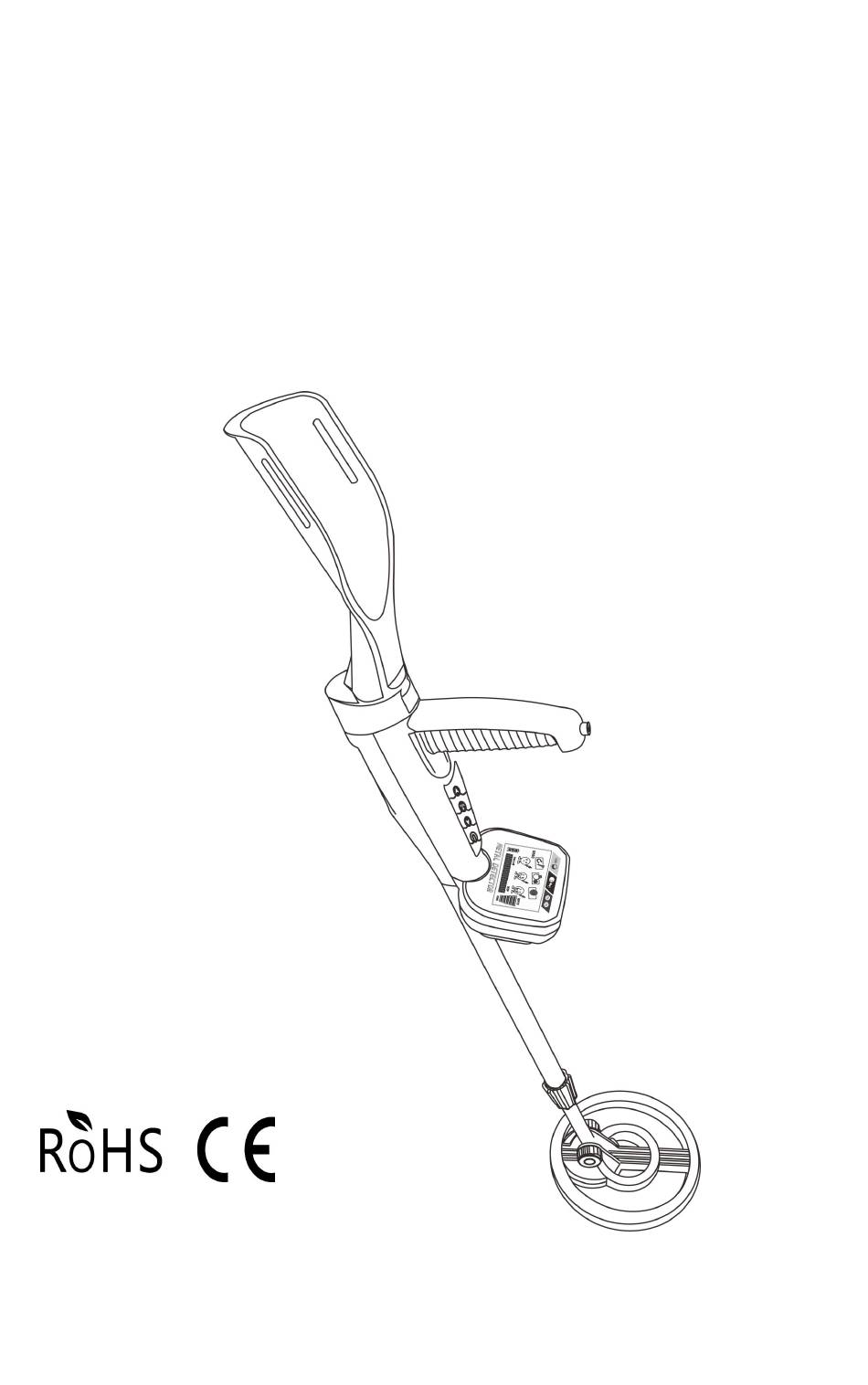

METAL DETECTOR
FOR KIDS
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCQ-Y003 and is the answer not in the manual?

Questions and answers

Summary of Contents for HYTIREBY TCQ-Y003

  • Page 1 METAL DETECTOR FOR KIDS - 1 -...

  • Page 2: Assembling The Detector

    Introduction Thank you for choosing our Metal Detector. Please read the user manual carefully and keep it for future reference. Feature With your metal detector, you can hunt for coins, relics, jewelry, gold, and silver just about anywhere The detector is versatile and easy to use. The detector's features include: LCD - shows the probable type of metal being detected.
  • Page 3 ● Insert the Upper stem into the jack connected with the Control Box and fix the screw. ● Sheathe the Lower stem, connected to Search Coil and tighten the Knob just keep the search coil from rotating or wobbling. (The search coil should be parallel with the ground.) ●...
  • Page 4 2. Installing batteries Turn off the detector. Slide the battery cover off in the direction of the arrow. Insert two batteries into the compartment and then replace the cover. Cautions: ● Always remove old or weak batteries which can leak chemicals that can destroy electronic parts.
  • Page 5 Assembly of Detector Insert the Upper stem into the jack connected with the  Control Box and fix the screw Tighten the Knob and turn the Stem Lock Nut counterclockwise  to lock it in place Installer the Armrest to the ...

  • Page 6: Operation

    OPERATION Quick Look at the Detector 1. Press the Power button to turn on the detector. Press it again to power off. 2. Press MENU, LCD displays SENS, then press ↑ or ↓to increase or decrease the level of sensitivity. When SENS [without DISC] shows on the LCD, the detector is available for detecting all kinds of metal.
  • Page 7 3. Press MENU again to choose DISC mode. Then choose the unwanted target as follows: a. Press MENU, the arrow pointing to nail/ bottle cap flashes. This means nail, bottle cop, or iron object will be ignored. The detector will have no reaction to these objects.
  • Page 8 Discrimination Settings: Metal Ignored Status Tone Display for Discrimination High for 25 cent,50cent,silver& Nail/bottle cap(iron) copper; Medium for 5cent/ 1cent/pull tab/s-cap. 5cent pull-tabs, High for 25cent screw caps, some &50cent; Low for gold, zinc, nickels iron. Nail/bottle cap(iron); 5cent pull-tabs, High for 25cent, 50 screw caps, some cent, silver&copper.
  • Page 9 When the detector detects a ferrous target, it sounds a low tone, and the arrow points to the nail/ bottle cap. When it finds a non-ferrous target, it sounds a medium or high tone, and the arrow points to 5cent/ 1 cent/pull tab/ s-cap or 25 cent/ 50 cent.

  • Page 10: Troubleshooting

    Sweep slowly hurrying will cause you to miss targets. It’s better you sweep the search coil from side to side in an arc line of 3 inches motion and keep the search coil parallel with the ground. Factors That Affect The Detecting It’s difficult to have an accurate detecting result, it needs practice to get better detection results.
  • Page 11 Problem Suggestions You might be sweeping the detector’s search coil too fast or at the wrong angle. Sweep the search coil more slowly and hold the detector correctly. See Testing Sample and Pinpoint. The detector displays or sounds false signals. The detector might sound a false signal if it detects heavily oxidized metals.

  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE Our metal detector is an example of superior design and craftsmanship. The following suggestions will help you care for your metal detector so you can enjoy it for years. Handle the detector gently and carefully. Dropping it can damage circuit boards and cases and can cause the detector to work improperly.
