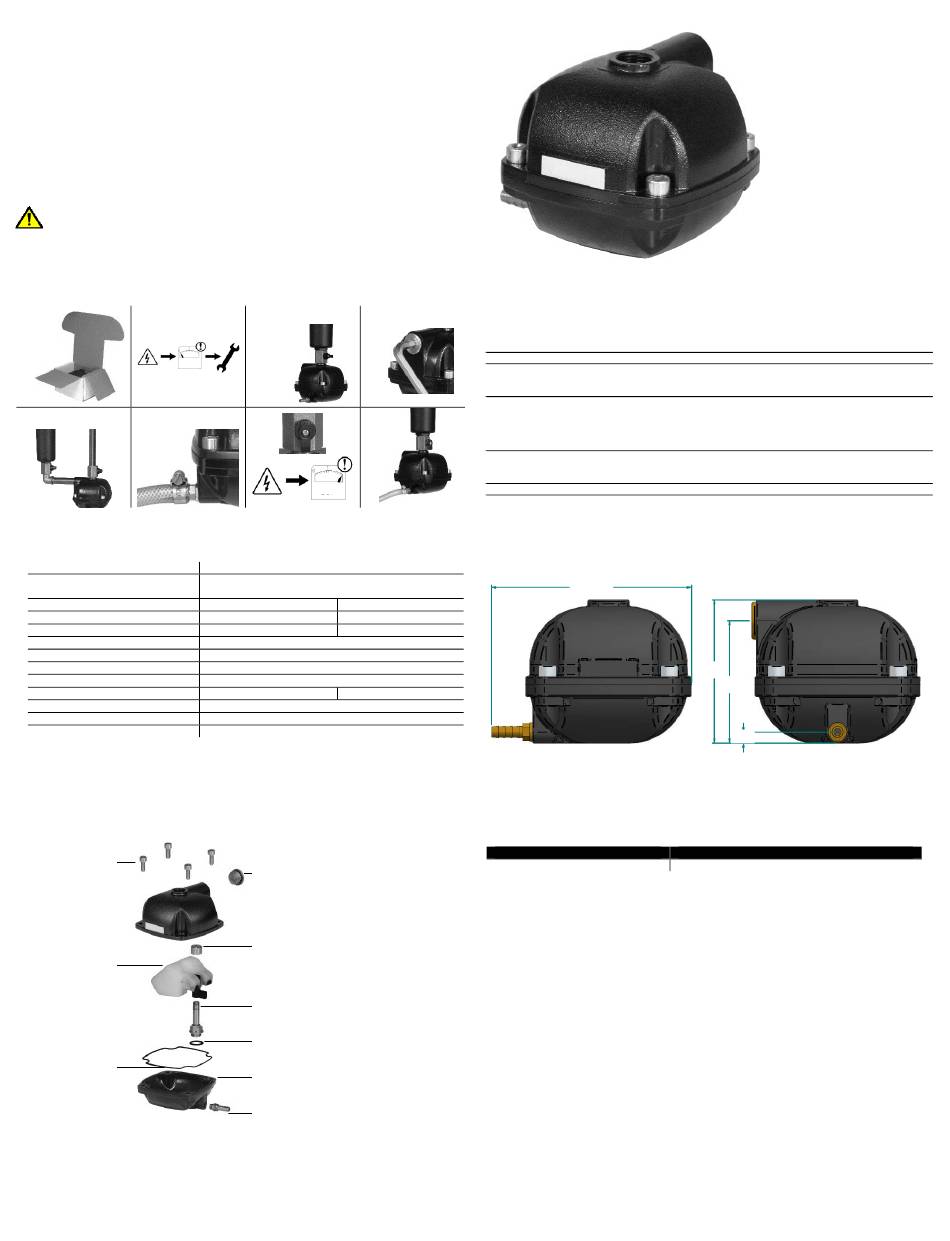

NANO NMD12 Installation Instructions

SAFETY AND PROPER USAGE
To ensure safe and enduring performance of this product, you must comply strictly with the instructions enclosed herein.
Non-compliance with instructions or improper handling of the product will void your warranty! Usage of this product in
conditions not specified in this manual or in contrary to the instructions hereby provided is considered IMPROPER. The
manufacturer will not be held liable for any damages resulting from improper use of the product.
SAFETY & WARNING INSTRUCTIONS
- Observe valid and generally accepted safety rules when planning, installing and using this product.
- Take proper measures to prevent unintentional operation of the product or damage to it.
- Do not attempt to disassemble this product or lines in the system while they are under pressure.
- Always depressurize the compressed air system before working on the system.
It is important that personnel use safe working practices and observe all regulations and legal requirements for safety
when operating this product. When handling, operating or carrying out maintenance on this product, personnel must
employ safe engineering practices and observe all local health & safety requirements & regulations. International users
refer to regulations that prevail within the country of installation. Most accidents, which occur during the operation and
maintenance of machinery, are the result of failure to observe basic safety rules or precautions. An accident can often be
avoided by recognizing a situation that is potentially dangerous. Improper operation or maintenance of this product could
be dangerous and result in an accident causing injury or death. The manufacturer cannot anticipate every possible
circumstance, which may represent a potential hazard. The WARNINGS in this manual cover the most common potential
hazards and are therefore not all-inclusive. If the user employs an operating procedure, an item of equipment or a method
of working which is not specifically recommended by the manufacturer he must ensure that the product will not be
damaged or made unsafe and that there is no risk to persons or property.
NEVER CHANGE ORIGINAL COMPONENTS WITH ALTERNATIVES
WARNING
This product can expose you to chemicals
including lead, which is known to the State of California to cause
cancer and/or birth defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov
1.1 1.2
PSI
1.4(b) 1.5
TECHNICAL SPECIFICATIONS
Maximum filter capacity
Maximum drainage capacity
Pressure range
Medium temperature
Ambient temperature
Valve type
Valve seals
Inlet connection
Outlet connection
Inlet height
Serviceable valve
Housing material
Environmental protection
EXPLODED VIEW
Housing bolts
1.Operator
1.Housing gasket
1.3 1.4(a)
1.5 1.7
PSI
Unlimited
37.8 gallons per hour at 230 psi (16 bar)
148 litres per hour at 230 psi (16 bar)
0 – 16 bar 0 – 230 psi
1 – 50 °C 34 – 122 °F
1 – 50 °C 34 – 122 °F
2/2 way, direct acting
FPM
1/2" (BSP or NPT)
1/8" with hose connector
10 cm 3,9"
Yes
Corrosion resistant aluminium, EP coating
IP68 (NEMA6)
Plug
Valve top nut
Valve 1.
Valve gasket 1.
Housing bottom part
Outlet
INSTALLATION INSTRUCTIONS
Before installing this product, make sure it complies with your request and that it suits your application!
1.1 Unpack the unit and visually inspect for any transport damage incurred after leaving our factory.
1.2 Depressurise the system before installation or maintenance is carried out!
1.3 Top inlet connection: Locate a suitable condensate draining point on your compressed air system and
connect your valve as illustrated.
- The use of a ball valve is advisable.
1.4(a) Side inlet connection: The side inlet connection must be used in the case of a horizontal condensate feed
pipe. Remove the side inlet plug using an 10mm Allen key.
1.4b Side inlet connection: An equalizing line must be installed from the top inlet to a higher point in the air
system. The equalizing line and condensate feed pipe should be at the same pressure.
- The use of a ball valve is advisable.
1.5 Connect the outlet to an oil/water separator.
- We advise to use the nipple supplied with your drain. If it is necessary to use an alternative nipple, make sure
it is of the correct thread (1/8" BSP). Do not over tighten!
1.6 Slowly pressurize the system.
1.7 Your drain is ready for operation!
Note: We advise to check this product at least once a year and replace serviceable parts when necessary.
DIMENSIONS (inches)
5.687
REPLACEMENT PARTS
Description
1. Service kit
NMD12
4.055
3.465
.315
Part No.
NMDMK12
