CrimeStopper EVO-ALL Manual

This diagram was made to show you how to add the A-DS-101
shock sensor to a single wire input on an EVO-ALL or EVO-ONE.
You will need to turn option "G" on in the flashlink manager to
activate the alarm features of the EVO products. Then you will need
document guide #12971 to show you what additional wires are used
for the alarm wiring.

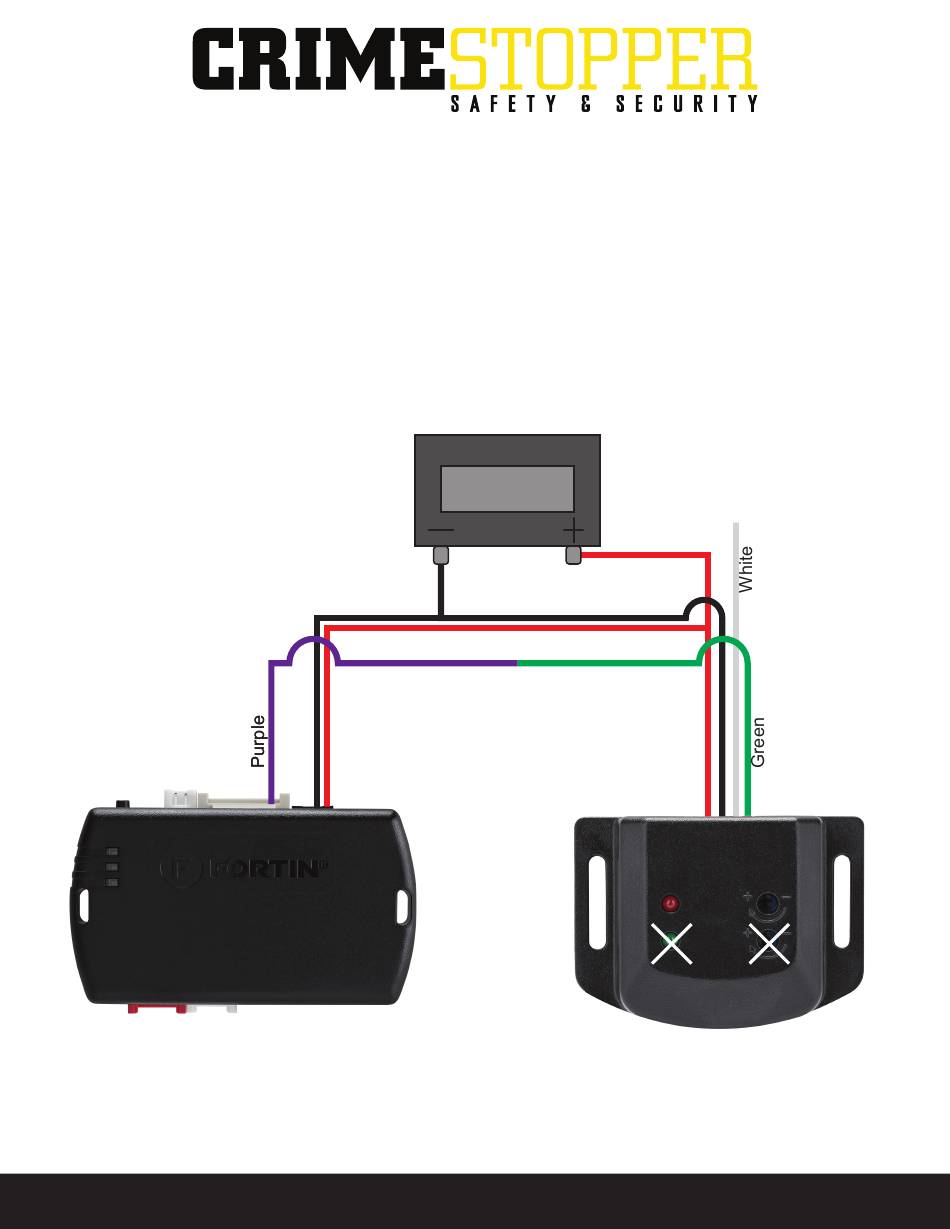

Following the diagram below will show you how to connect the
A-DS-101 to the EVO product.
EVO-ALL
RED Wire: 12 Volts Constant
Black Wire: Ground
Purple Wire: External Trigger Input
