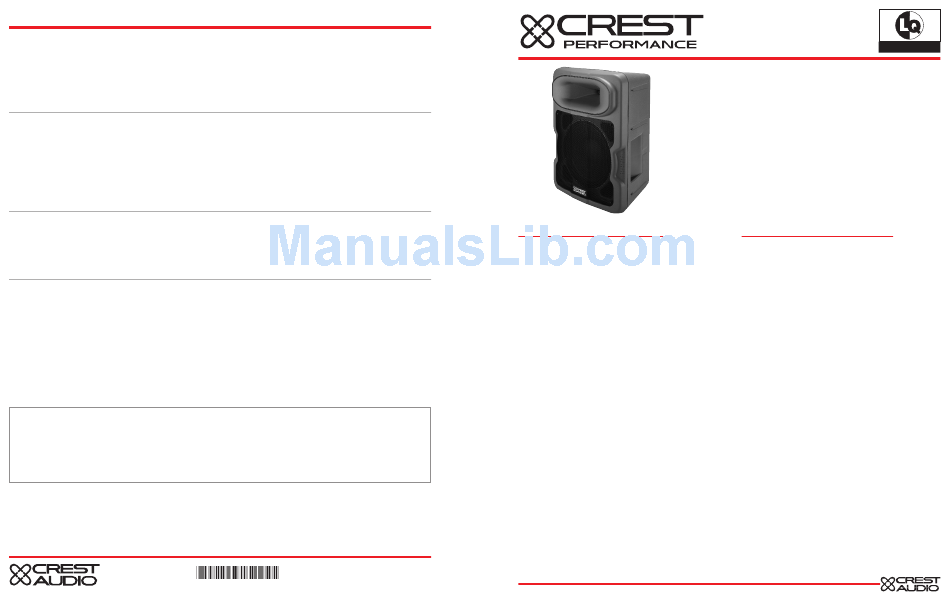

crest performance LQ12 LOUDSPEAKER Specifications

Specifications
LQ12 Loudspeaker
frequency response 76 Hz to 18 kHz ±3 dB
usable low frequency limit (-10 dB point) 54 Hz
power handling Full-range 500 W continuous 1,000 W program
High freq 60 W continuous 120 W program
sound pressure level Full range 99.0 dB SPL, (2.83 V input)
High freq 110.0 dB SPL, (2.83 V input)
maximum sound pressure level (1 meter) Full range 125.0 dB SPL continuous 134.0 dB SPL peak
High freq 127.0 dB SPL continuous 133.0 dB SPL peak
radiation angle measured 90 o horizontal X 45
transducer complement Low freq 1x 12" woofer, vented
High freq 0.875 in. exit/51 mm voice coil HF™2 compression driver on a CD horn
box tuning frequency Fbox 68 Hz
crossover frequency (internal passive) Low freq High freq 1800 Hz
recommended minimum active crossover Low freq High freq 1800 Hz at 12 dB/octave
time offset Low freq 0.00 ms High freq 0.00 ms horn spatially aligned
Full range nominal 8.0 Ω minimum 5.8 Ω
impedance (Z)
High freq nominal 8.0 Ω minimum 5.4 Ω
input connections 2x 1/4" phone jacks paralleled with
2x Neutrik® NL4 Speakon® for full-range inputs.
1x Neutrik NL4S switching Speakon for bi-amp inputs.
enclosure materials and finish Dark gray high-impact polypropylene 1/4" thick finished in molded textured finish
mounting provisions (8) 1/4"-20 threaded mounting points, four each top and bottom
dimensions (H x W x D) Front 23.65 in. x 17.75 in. x 14.00 in. 601 mm x 451 mm x 356 mm
Rear 22.25 in. x 10.00 in. x 14.00 in. 565 mm x 254 mm x 356 mm
net weight 45 lbs. (20.5 kg)
Architects' & Engineers' Specifications:
The loudspeaker system shall have an operating bandwidth of 76 Hz to 18 kHz. The nominal output level shall be 99 dB when
measured at a distance of one meter with an input of one Watt. The nominal impedance shall be 8 Ohms. The maximum
continuous power handling shall be 500 Watts, maximum program power of 1,000 Watts and a peak power input of at least 2,000
Watts, with a minimum amplifier headroom of 3 dB. The nominal radiation geometry shall be 90 degrees in the horizontal plane
and 45 degrees in the vertical plane. The outside dimensions shall be 23.65 inches high by 17.75 inches wide by 14.00 inches
deep. The weight shall be 45 pounds. The loudspeaker system shall be a Crest model LQ 12.
Crest Audio reserves the right to make improvements in manufacturing or design which may affect specifications.
8/21/01
v.1.5
LQ TM 12 Loudspeaker
o vertical
Crest Audio Inc.
16-00 Pollitt Dr. Fair Lawn, NJ 07410 USA
TEL: 201.909.8700 FAX: 201.909.8744
www.crestaudio.com
*80304797*
Power Handling
Full Range
LQ12
Other LQ series loudspeakers
LQ10
LQ15
Features
• Quadratic Throat Geometry horn
• 1000 W program, 2000 W peak
• 12" cast frame 4" VC woofer
• Crest HF™2 two-inch titanium compression driver
• DPS™ (Dynamic Protection System) tweeter protection
• Crossover EQ switch
• High power crossover components
• Top and bottom flying point inserts
• Multiple handles and 1-3/8" stand mount
• Available in White
LQ 12
TM
Loudspeaker
S E R I E S
Continuous
500W 2,000W
1,000W
250W
2,000W
500W
Description
The Crest LQ 12 is an injection-molded two-way speaker system,
engineered in the Crest tradition to provide superior performance
from a compact and durable package. The enclosure is made from
very high impact injection-molded polypropylene in a trapezoidal
shape, with extensive ribbing and bracing. The grille is comprised of
perforated metal protected by a high quality vinyl coating process.
The two-way system is comprised of a 12" cast frame premium
woofer with a 4" voice coil, and a water-resistant treated cone and
dust cap for superior environmental stability. Capable of over 500 W
of continuous power handling (AES Std 2-1984). The high frequen-
cies are handled by a Crest HF™2 two-inch titanium diaphragm com-
pression driver utilizing ferrofluid, coupled to a 1" Quadratic Throat
Geometry horn, molded integral to the cabinet. This horn provides
outstanding dispersion coupled with a well-controlled pattern, and a
smooth, even response. Utilizing Quadratic Throat Horn technology,
under US Patent 6,059,069, the horn has lower distortion than many
popular CD horn geometries. The Crest HF TM 2 driver utilizes the
Radialinear Planar Phase Correction System, under US Patent
6,064,745, which provides smoother and extended high frequency
response.
Input connection to the system is made via two 1/4" phone jacks, and
two 4-pin Neutrik® jacks all connected in parallel are provided for sig-
nal input and daisy chaining capability, while a 4-pin Neutrik switching
jack is provided for bi-amping flexibility while maintaining signal
integrity.
The internal passive crossover features the DPS™ Dynamic
Protection System tweeter protection circuit, and an advanced topol-
ogy with high performance components, to provide high power han-
dling and reliability. The crossover provides driver roll-off and protec-
tion, as well as driver EQ for the woofer and horn. The optimal inte-
gration of the crossover with the selected drivers results in a smooth
frequency response from 76 Hz to 18 kHz. An EQ contour switch is
provided enabling the user to select one of two EQ settings. One set-
ting will yield a nominally flat frequency responce, the other reduces
the upper mid range frequencies which can help in keeping bright
rooms from overloading, or to help achieve a mellower voicing for
those applications that prefer it, such as DJ use.
