Simple Deluxe HKSHLF36145404BV1 Installation

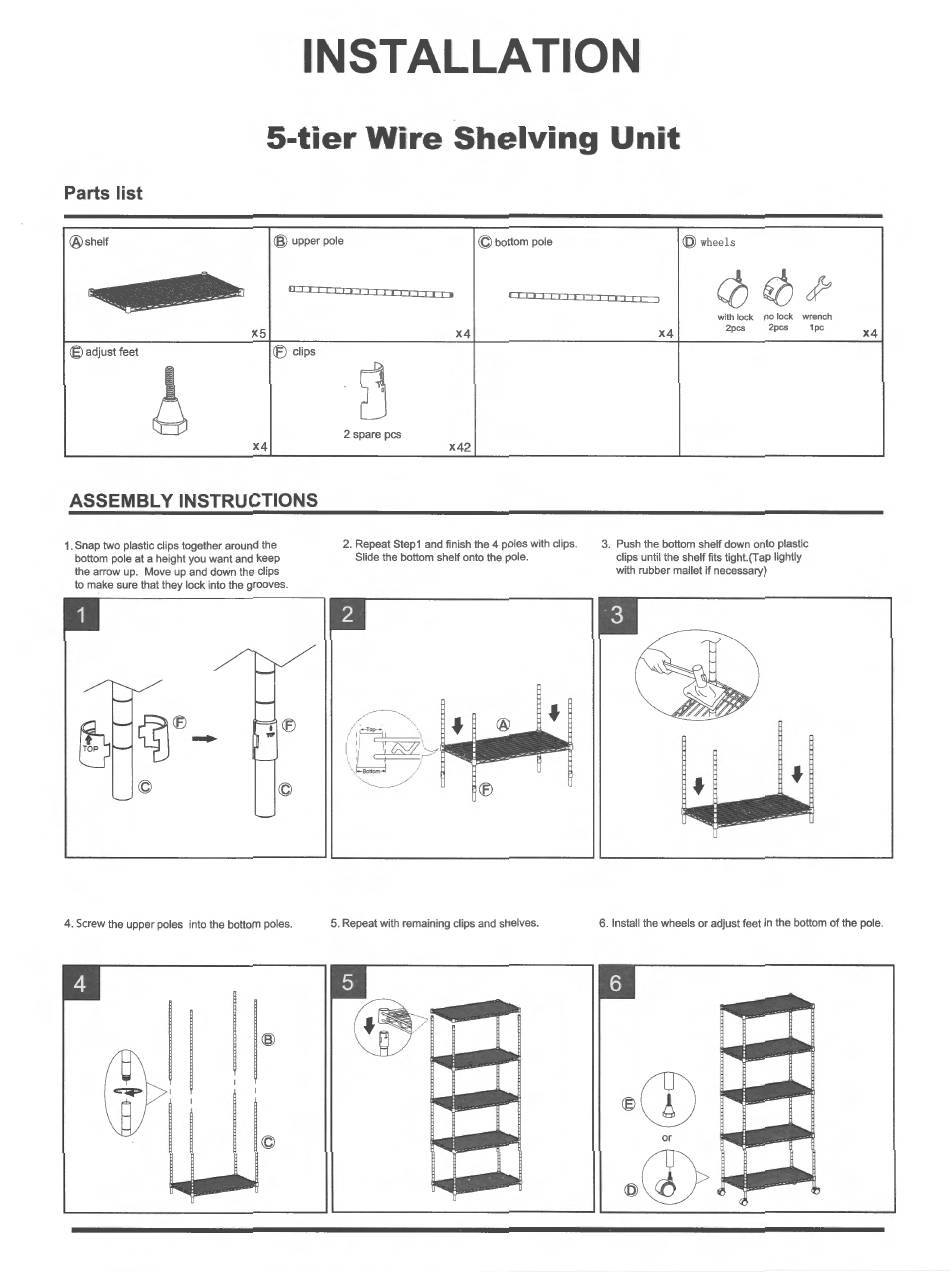

INSTALLATION
S-tier Wire Shelving Unit
Parts list
@shelf @upper pole
© bottom pole
@wheels
~
01 II
I I I I I I 1
I I I I I I I 1 J )
ch
fi O
t7
U I I I I I I I I I I I I I 1 1 1
I
xs
®adjust feet ® clips
~
X4
ASSEMBLY INSTRUCTIONS
1. Snap two plastic clips together around the
bottom pole at a height you want and keep
the arrow up. Move up and down the clips
to make sure that they lock into the grooves.
X4
~
2 spare pes
X42
2. Repeat Step1 and finish the 4 poles with clips.
Slide the bottom shelf onto the pole.
with lock no lock wrench
X4
2pcs 2pcs
3. Push the bottom shelf down onto plastic
clips until the shelf fits tight.(Tap lightly
with rubber mallet if necessary)
1pc
X4
4 . Screw the upper poles into the bottom poles.
5. Repeat with remaining clips and shelves . 6. Install the wheels or adjust feet in the bottom of the pole .
©
-
