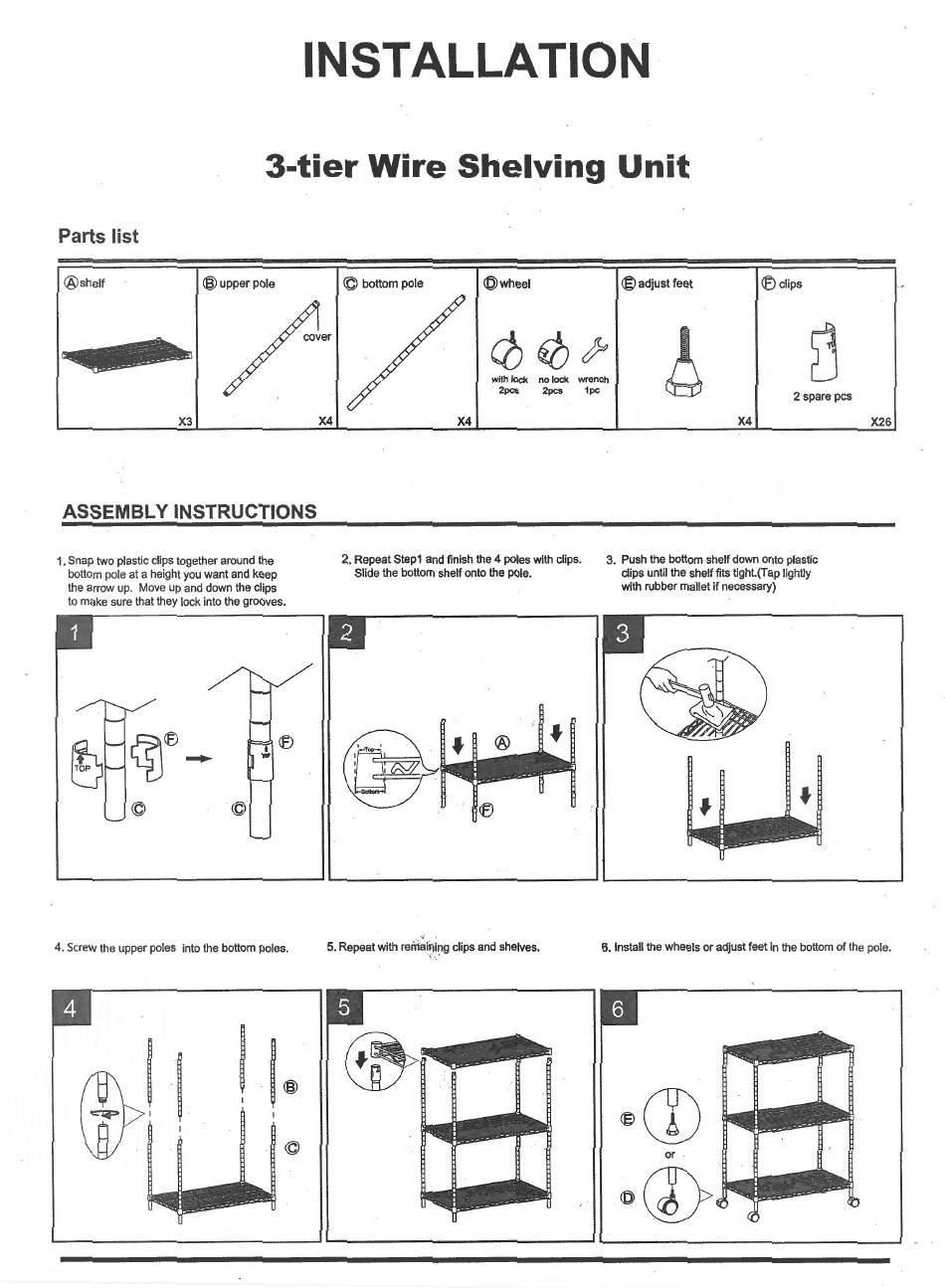

INSTALLATION
3-tier Wire Shelving Unit
Parts list
@shelf @upper pole
~
/-
X3
ASSEMBLY INSTRUCTIONS
1.
Snap two plastic clips together around the
bottom pole at a height you want and keep
the arrow up. Move up and down the clips
to make sure that they lock into the grooves.
X4
©
bottom pole @wheel ®adjust feet ®clips
c0€0~
~
~
with lock
no lock wrench
2pcs 2pcs 1pc
2 spare pes
X4 X4
2. Repeat Step1 and finish the 4 poles with clips. 3.
Push the bottom shelf down onto plastic
clips until the shelf fits tight.(Tap lightly
with rubber mallet if necessary)
Slide the bottom shelf onto the pole.
X26
4.
Screw the upper poles into the bottom poles.
5.
Repeat with remaining clips and shelves.
6.
Install the wheels or adjust feet in the bottom of the pole.
(&·
I
®
CD
®
©
or
©
(j}
