INSTRUCTIONS

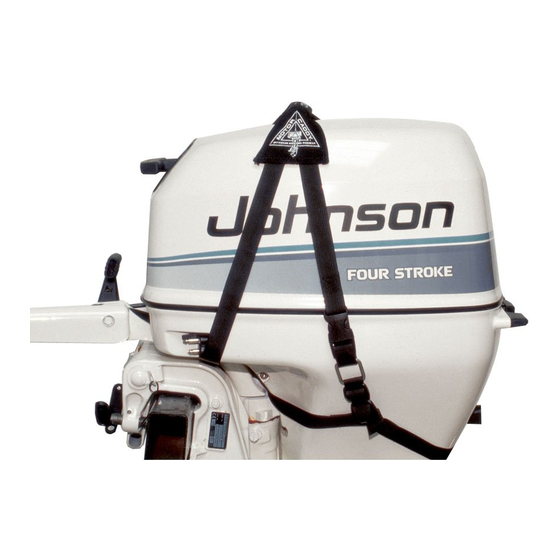

MOTOR CADDY™ Outboard Hoisting Harness is the safe and easy
way to move an outboard motor. Provides a balanced, secure handle for
easier carrying, hoisting or moving of heavy, cumbersome motors.
Fits 2-stroke and 4-stroke outboards up
to 15 h.p. Motor Caddy is sized to quick-
ly attach onto most outboards from 2–15
horsepower. (Not recommended for air
cooled motors).
Design features a long harness strap to
fit 4-stroke motors and a shorter security
strap for extra safety when used on
today's streamlined engine cases. Self-
centering handle serves as the lifting
point for lanyards and hoists or balanced
lifting by hand.
Made of UV resistant materials that will
endure the marine environment. Tough
enough to be left installed on a semi-
permanent basis. Glass filled Nexus
nylon buckles insure that Motor Caddy is
easy to install and remove, allowing
quick access to the motor.

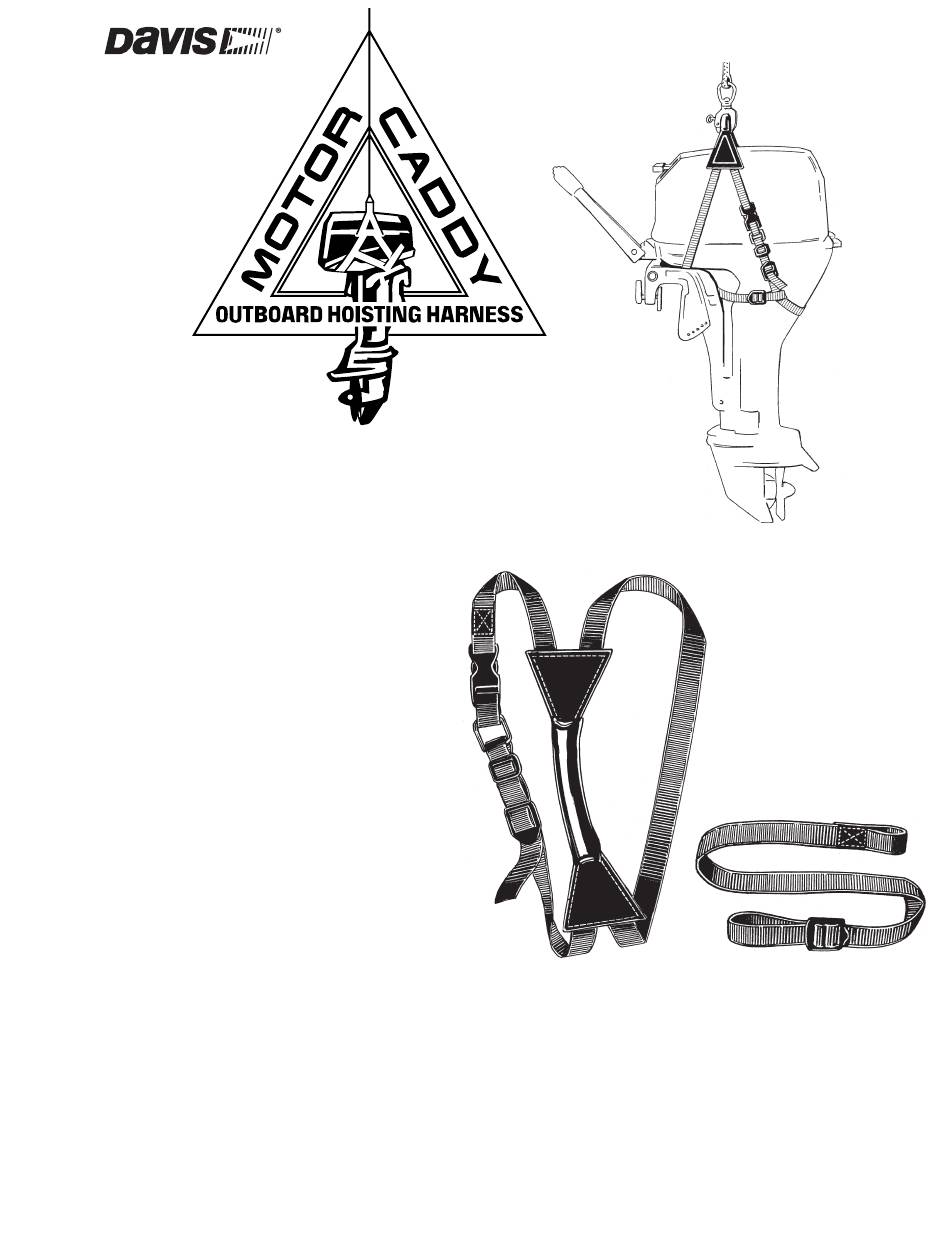

TM
BUCKLE
SIDE
Attachment
Buckle
Stainless
Ring
Loop
Tensioner
Adjustment
Buckle
®
HARNESS
LOOP
SIDE
Handle
#430
SECURITY STRAP
Note: On smaller motors,
it may be necessary to trim
excess webbing.
