JONATHAN Y PAT1001 Manual

Irving outdoor patio modern acacia wood adirondack chair for garden, lawn, backyard, pool, deck, beach, firepit
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

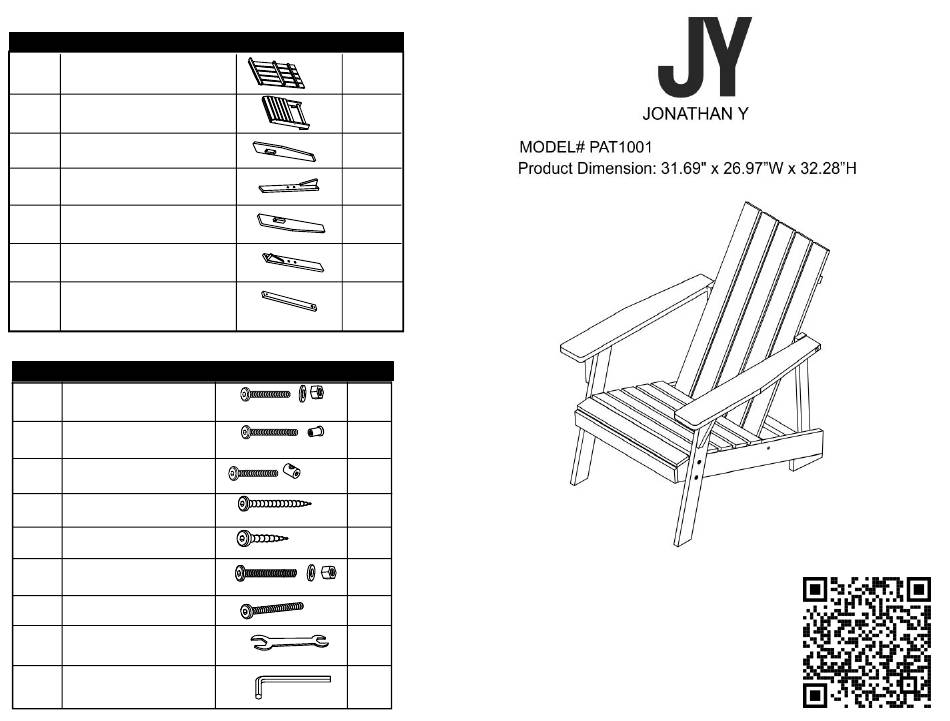

Part List
PIECE
DESCRIPTION
A
Back
B
Seat
C
Left Arm
D
Left Leg
E
Right Arm
F
Right Leg
Support Back
G
Hardware List
PIECE
DESCRIPTION
HW1
Bolt and nut
HW2
Bolt & Round nut
T Bolt & nut
HW3
HW4
Screw L
Screw S
HW5
HW6
Bolt and nut
HW7
Extra bolt
HW8
Wrench
Allen Key
HW9
QUANTITY
1x
1x
1x
1x
1x
1x
2x
QUANTITY
4x
M6x45
2x
M6x70
2x
M6x45
2x
M6x60
2x
M6x30
2x
M8x50
1x
M6x45
Scan the QR code on the right to view a video
1x
that shows how to assemble this product.
2x

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAT1001 and is the answer not in the manual?

Questions and answers

Summary of Contents for JONATHAN Y PAT1001

  • Page 1 Part List PIECE DESCRIPTION PICTURE QUANTITY Back Seat Left Arm Left Leg Right Arm Right Leg Support Back Hardware List PIECE DESCRIPTION PICTURE QUANTITY Bolt and nut M6x45 Bolt & Round nut M6x70 T Bolt & nut M6x45 Screw L M6x60 Screw S M6x30...
  • Page 2 PREPARATION Tool required for assembly (included): Allen Key. M6x45 M6x60 M6x30 Step 1: Attach the Back (A) ,support back (G) to the Seat (B) as shown in the picture (1) .Using Screw (HW4) to fix the Back (A) to the Seat (B)_pic (1) .After that use the T Bolt &...
  • Page 3 PREPARATION Tool required for assembly (included): Allen Key and Wrench. M6x45 Step 2: Attach the Left leg (D) to the Seat (B) as shown on the picture. Using the Bolt & nut (HW1) and tighten with the Allen key (HW9) and Wrench (HW8).
  • Page 4 PREPARATION Tool required for assembly (included): Allen Key and Wrench. M6x70 M8x50 Step 3: Attach the Left Arm (C) to the Left leg (D) as shown on the picture. Fix the Left arm (C) to the Support back (G) by using the Bolt & and round nut (HW2) , tighten it by using the Allen key (HW9) as show on the picture (1) .
  • Page 5 PREPARATION Tool required for assembly (included): Allen Key and Wrench. M6x45 Step 4: attach the Right leg (F) to the Seat (B) and using the Bolt & nut (HW1) and tighten it by the Wrench (HW8) and Allen key (HW9) as shown on the picture.
  • Page 6 PREPARATION Tool required for assembly (included): Allen Key and Wrench. M6x70 M8x50 Step 5: attach the Right arm (E) to the Right leg (F) and the Support (G) as shown on the picture. Using the Bolt & round nut (HW2) tighten it by the Allen key ( HW9 )- pic (1).
