Davis Instruments tiller-tamer 2205 Installation Instructions

Read instructions through before proceeding. Tiller-Tamer may be mounted on top or bottom of tiller.
FOR BOATS with OUTBOARD RUDDERS
1. Position tiller exactly amidships.

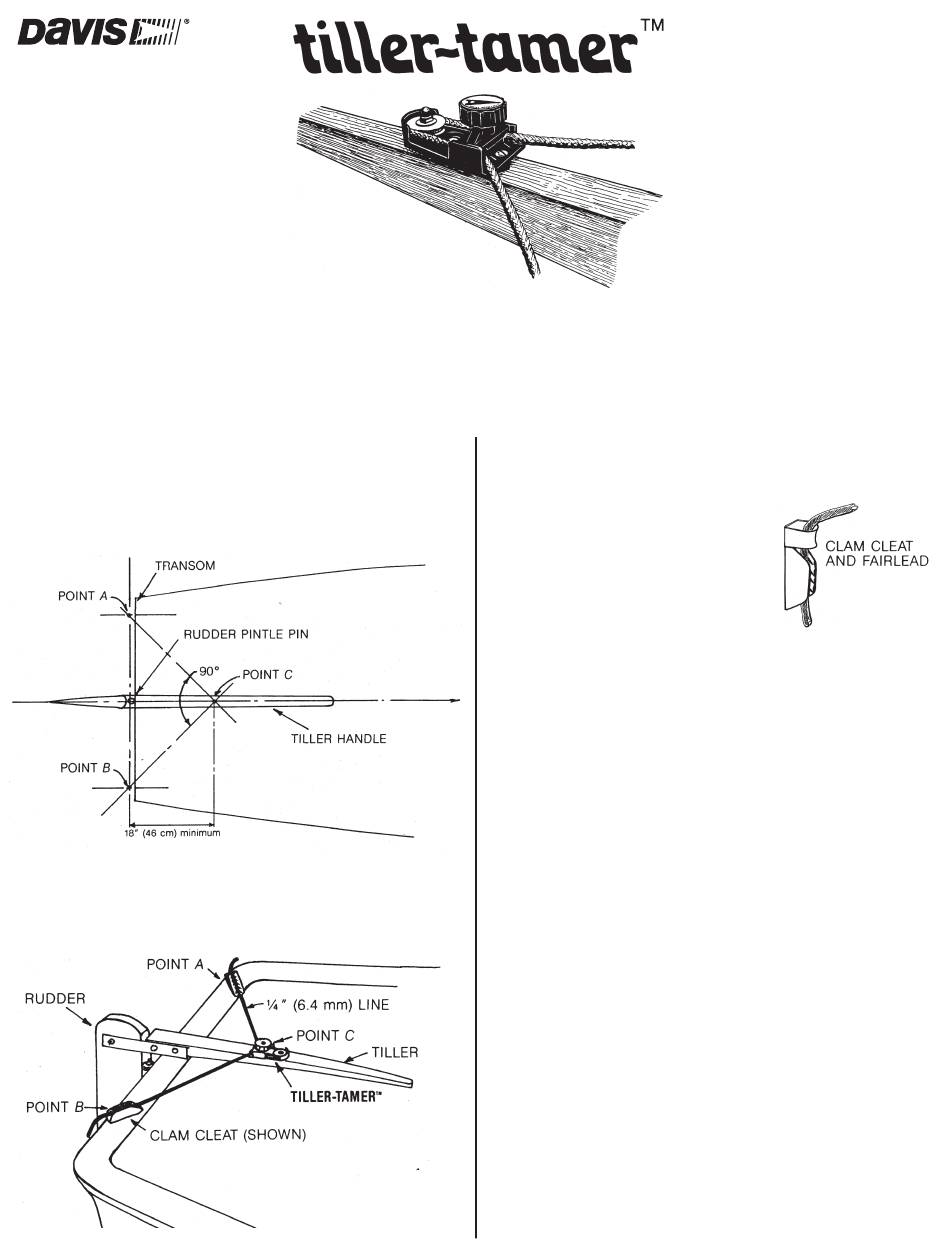

2. Estimate a right triangle, as shown below, between
point A, B and C on the transom and tiller handle. Mark
point C on the tiller handle. Allow at least 18" (46 cm)
between point C and rudder pivot point.
3. Assemble the Tiller-Tamer unit to the tiller handle by
positioning the knob over point C. Attach with two wood
screws provided. Release the knob and thread the 1/4"
(6.4 mm) line through as shown below.
INSTALLATION INSTRUCTIONS
4. Attach a cleat at points A and B. This may be a clam
5. Attach one end of 1/4" (6.4 mm) line. With tiller amid-
cleat or any other quick releasing device. CL201 is rec-
ommended, as shown in previous drawing..
Clam cleats with fairleads (CL203
or CL211) may be attached to the
vertical wall of the transom or cock-
pit, if desired, as shown at right.
ships, loosen clamp knob on Tiller-Tamer. Pull line
through to tension and attach to second clam cleat.
#2205
