RockJam RJ20WAR2 Instruction Manual

RJ20WAR2
Instruction manual

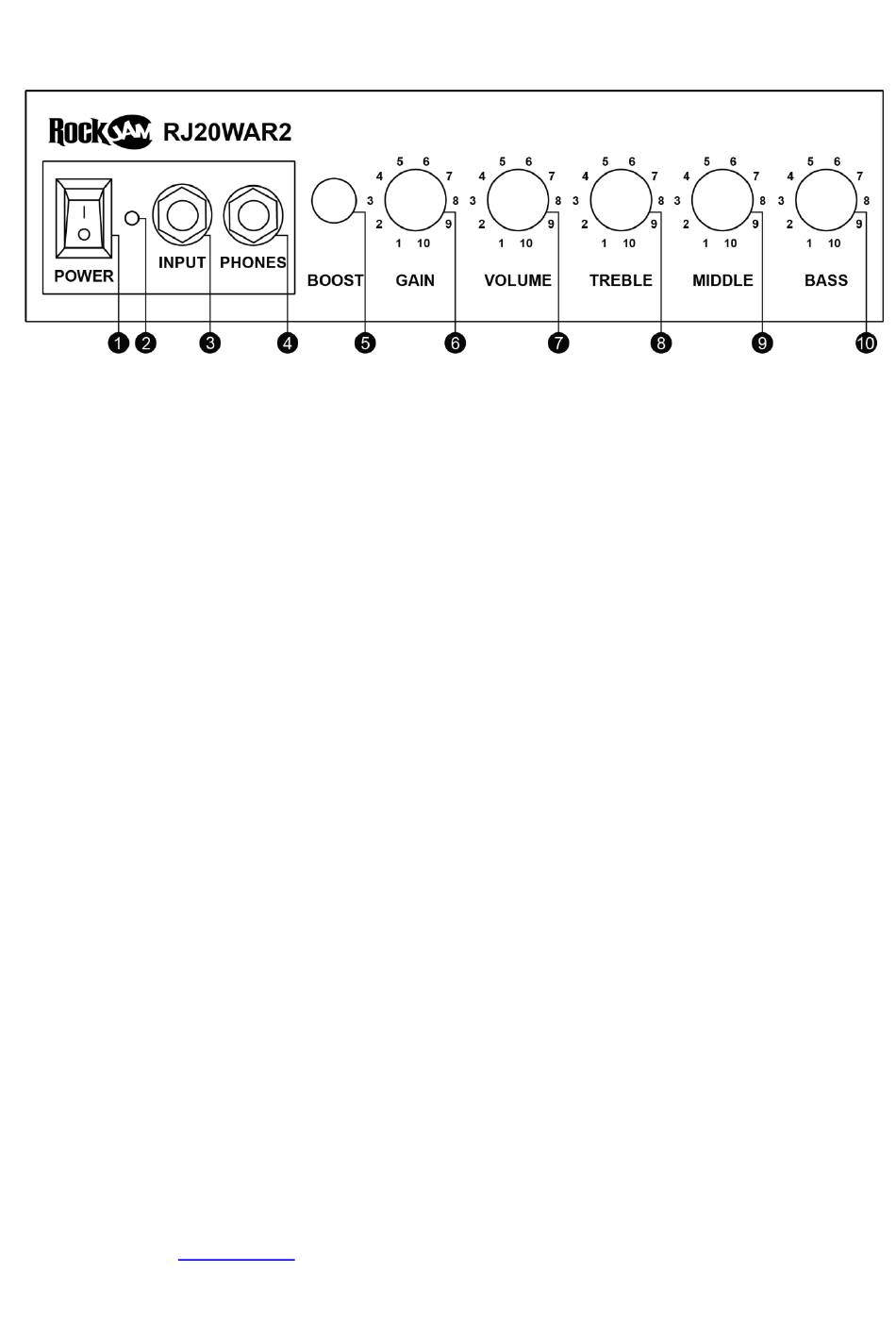

Functions:
1. POWER: Turns the unit On/Off
2. LED: Power indicator
3. INPUT: 1/4" connection for instrument
4. PHONES: Headphone output
5. BOOST: This switch selects the normal or
overdrive channel range
Specifications:
Power supply: 220-240 V AC, 50 Hz
Frequency response: 40 Hz to 20 kHz
Internal fuse: T600 mA
Rated power: 20 Watts RMS, 1% THD into 4 ohms
Cable length: 1.5 metres
Dimensions: 235(W) x 290(H) x 150(D) mm
Caution:
To reduce the risk of fire, replace the fuse only with the same type and rating.
To reduce the risk of electric shock do not expose to rain or moisture.
This amplifier must be earth grounded.
We trust you are completely satisfied with this RockJam product, however, please feel free to contact us if you
experience any difficulties, or if you would like to express your views regarding our products. Please write to:
PDT Ltd.
Unit 4B, Greengate Industrial Estate,
White Moss View,
Middleton,
Manchester, M24 1UN
United Kingdom / info@pdtuk.com
6. GAIN: Intensity control for the overdrive channel
7. VOLUME: Control for the overall output level
8. TREBLE: Control for the high frequency range
9. MIDDLE: Control for the middle frequency range
10. BASS: Control for the low frequency range
