Summary of Contents for iBike B0CMZ1D9J1
- Page 2 FULLY CHARGE BATTERIES BEFORE FIRST USE- Batteries should be fully charged immediately when they are received and immediately after each use for the recommended charge times (see below). .LiHon (Lithium lon) batteries 4-6 hours (2-3 hours for Via Urbano) We recommend that you consult a bicycle specialist if you have doubts or concerns as to your experience or ability to properly assembly, repair, or maintain your bicycle.
- Page 3 HEMES CORRE CTFITT- MAKE SUREYOUR HELMECOVERSYOURFOREHEAD. LWESI · AWAYS WEAB A PBOPEBIY HITTED MELMET WHEM YOU RIDE YOUB BICYCIE · DO MOT IDE ATMIGHL · CPSC BECOBDS SHOW TAAT ABOUT 35% OF BICYCLE BELATED IEATHS OCCUR AFTEB DABK · AVOID ROING IM WET CONDITTIONS INCORRECT FITTING.
- Page 4 Battery Status Electric Power Assist (5 Shifts) Riding Mode Pure Electric (5 shifts) Pure Human Riding peed CRUISE CONTROL SYSTEM: Speed Grade Pure electric riding mode, during riding process (turn rotatable grip + long press - button for 5 seconds) to enters cruise mode (instrument display Cruise sign).Brake cancels cruise.
- Page 5 Model：SJT-125E GIORRAD Terrain Electric Fat Bike Open the Carton The Carton of the E-bike. Remove the packing EPE pearl cotton Take the bike and accessories out...
- Page 6 Turn the stem forward. Do not turn the whole fork. The fork brace should be facing forward. Remove the 1 bolts...
- Page 7 Fit the stem and handlebar together Tighten the 1 bolts...
- Page 8 Tighten the bolts Handlebar installation completed Install the lights and front fender...
- Page 9 Align the fender and light together Prepare the lights and mudguards Tighten the 1 bolts Insert the bolt into both holes simultaneously...
- Page 10 Turn the bike upside down The fork spacer and brake caliper spacer Remove the fork spacer. ( it is not a part of the Put the front wheel on the fork bike)
- Page 11 The axle of the motor goes into the groove of the fork.
- Page 12 Put the washers in the right places Tighten the nuts on both sides...
- Page 13 The pedal with letter L should be fixed on the left Turn spanner counter-clockwise to fix the pedal L The pedal with letter R should be fixed on the right Turn the spanner clockwise to fix the pedal R...

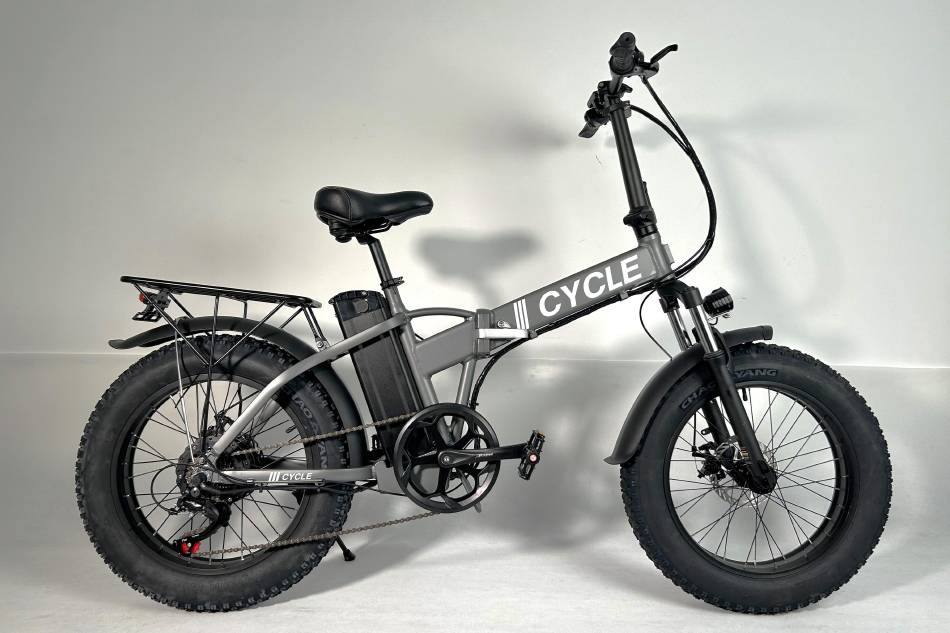

- Page 14 Put the battery on the battery base Push the battery downward and lock it Side view of the completed e-bike...
- Page 15 Turn on the Starter Key Press button M for 3 seconds to turn on display Battery, Status Speed Acceleratin Decele ration ON/OFF Speed Grade Odograph Press button A or v can change speed grade.
- Page 16 The power assisted mode match with the gear shift to achieve the riding experience of labor-saving and power saving. In the setting of power assist riding, on few slopes and good road conditions, it is recommended to match with variable gears, 7-6 high-speed gears, with the best power-saving effect and speed ratio.
- Page 17 Maintenance method. A,When the temperature is low in winter, the battery should be placed indoors, and the charging should also be carried out indoors. After the battery is fully charged, the charging time should be extended for another two hours. B,In summer, avoid the sun exposure of batteries.
