Warning:
Risk of personal injury or property damage.
• Do not exceed tire carrier weight limit.
• Do not use on bumpers that are not rated to carry the combined weight of the tire
carrier and tire.
Weight Limit: 60 lbs.

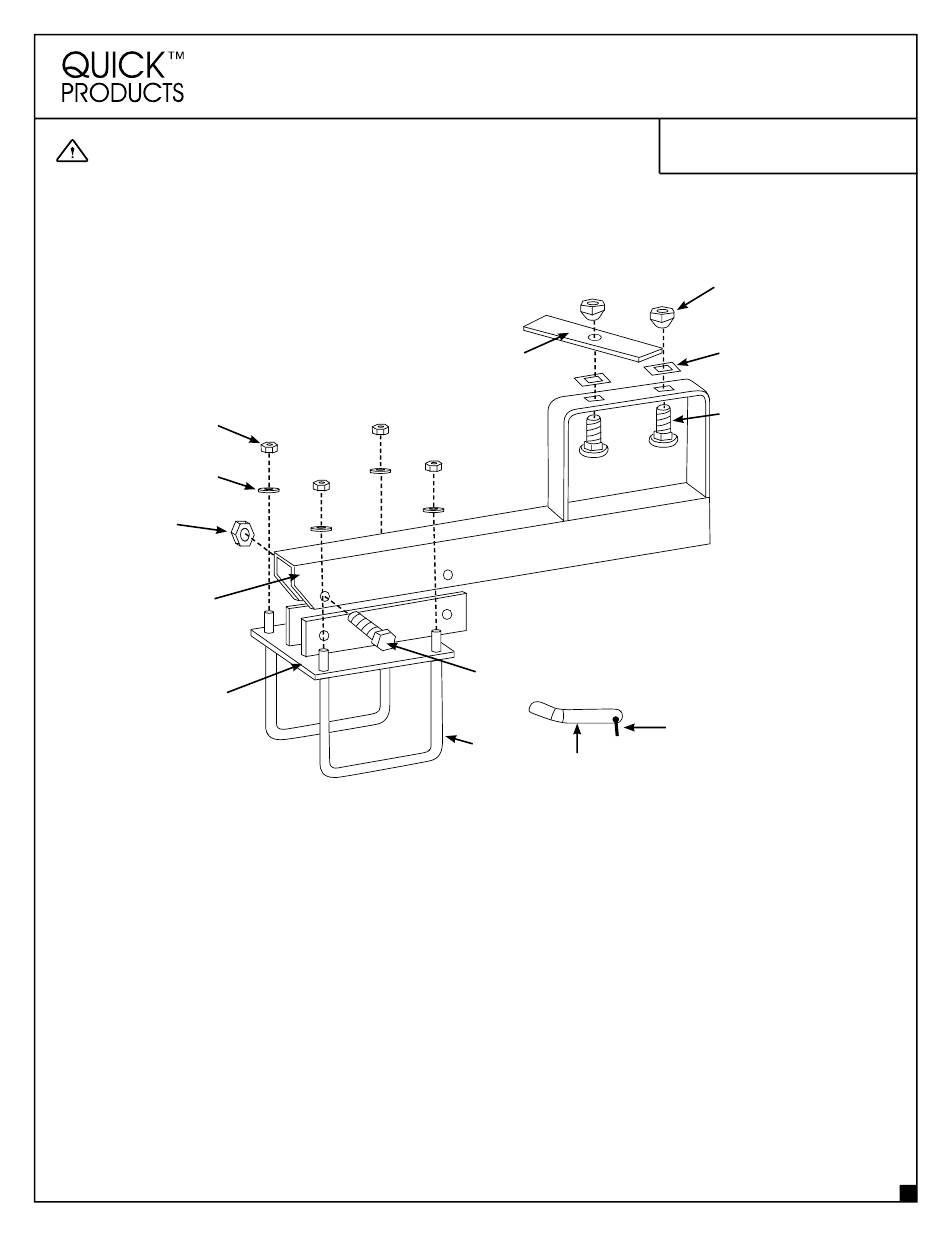

A
B
C
D
E
Ref.
A
B
C
D
E
F
G
H
I
J
K
L
M
RV Spare Tire Carrier Instructions
Description
3/8" - 16 Zinc Nuts
3/8" Lock Washers
1/2" - 13 Lock Nuts
Column
Base
3/8" - 16 x 4-3/4" U-Bolts
1/2" x 3" Clevis Pin
Cotter Hairpin
1/2" - 13 x 2-3/4" Hex Bolt
1/2" - 13 x 1-1/2" Carriage Bolts
Spring Clips
1/2" - 13 Lug Nuts
Lug Plate
service@quickproducts1.com • QuickProducts1.com
M
I
F
G
JQ-HHD-1005
L
K
J
H
Qty.
4
4
1
1
1
2
1
1
1
2
2
2
1
1
2398qp0715
Advertisement
Summary of Contents for Quick Products JQ-HHD-1005
- Page 1 RV Spare Tire Carrier Instructions JQ-HHD-1005 Warning: Risk of personal injury or property damage. • Do not exceed tire carrier weight limit. • Do not use on bumpers that are not rated to carry the combined weight of the tire carrier and tire.
- Page 2 FOLD-OUT CARRIER ASSEMBLY & INSTALLATION Assemble Base 1) Thread hex bolt (I) through bottom hole of column (D) and base (E). (See figure 2.1.) 2) Secure with lock nut (C). 3) Torque nut to 30 ft. lbs. 4) Insert clevis pin (G) through top holes of column and base. (See figures 2.1 and 2.2.) 5) Secure clevis pin with cotter hairpin (H).
- Page 3 SPARE TIRE MOUNTING 1) Insert 1-1/2” carriage bolts (M) through the holes in the carrier loop (Q) as shown in Figure 4. 2) Hold the carriage bolts in place by forcing spring clips (N) onto the bolt threads as shown in Figure 4. 3) Mount tire rim onto top carriage bolt (M) as shown in Figure 5.
- Page 4 RV Spare Tire Carrier Instructions JQ-HHD-1005 Avertissement: Risque de blessures ou de dommages matériels. • Ne pas dépasser la limite de support de poids de traction. • Ne pas utiliser sur les pare-chocs qui ne sont pas notés à porter le poids combiné du support de traction et tirer.
- Page 5 BASCULABLE CARRIER ASSEMBLAGE ET INSTALLATION Assemblez base 1) boulon à tête hexagonale de discussion (I) dans le trou en bas de la colonne (D) et la base (E). (Voir la figure 2.1.) 2) Fixer avec l’écrou de blocage (C). 3) Couple écrou à 30 pi. Lbs. 4) Insérez l’axe de chape (G) à...
- Page 6 ROUE DE SECOURS MONTAGE 1) Introduire 1-1 / 2 “boulons de chariot (M) à travers les trous de la boucle de porteuse (Q), comme illustré sur la figure 4. 2) Maintenez les boulons en place en forçant clips à ressort (N) sur les filets des boulons comme montré dans la figure 4.
