Moen GLYDE T2842EP Series Manual

DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes showerhead, arm, flange and diverter tub spout
OPERATION
• Handle operates counterclockwise through a 270° arc with off at 6
o'clock and maximum hot at the 9 o'clock position. Shut off in clockwise
direction
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• EP suffix models are limited to 2.0 gpm (7.6 L/min) at 80 psi
CARTRIDGE
• 1222 cartridge design
• Accommodates back to back installations
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein
• EP suffix models are third party certified to WaterSense®
• ADA for lever handle
WARRANTY
• Limited lifetime warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations

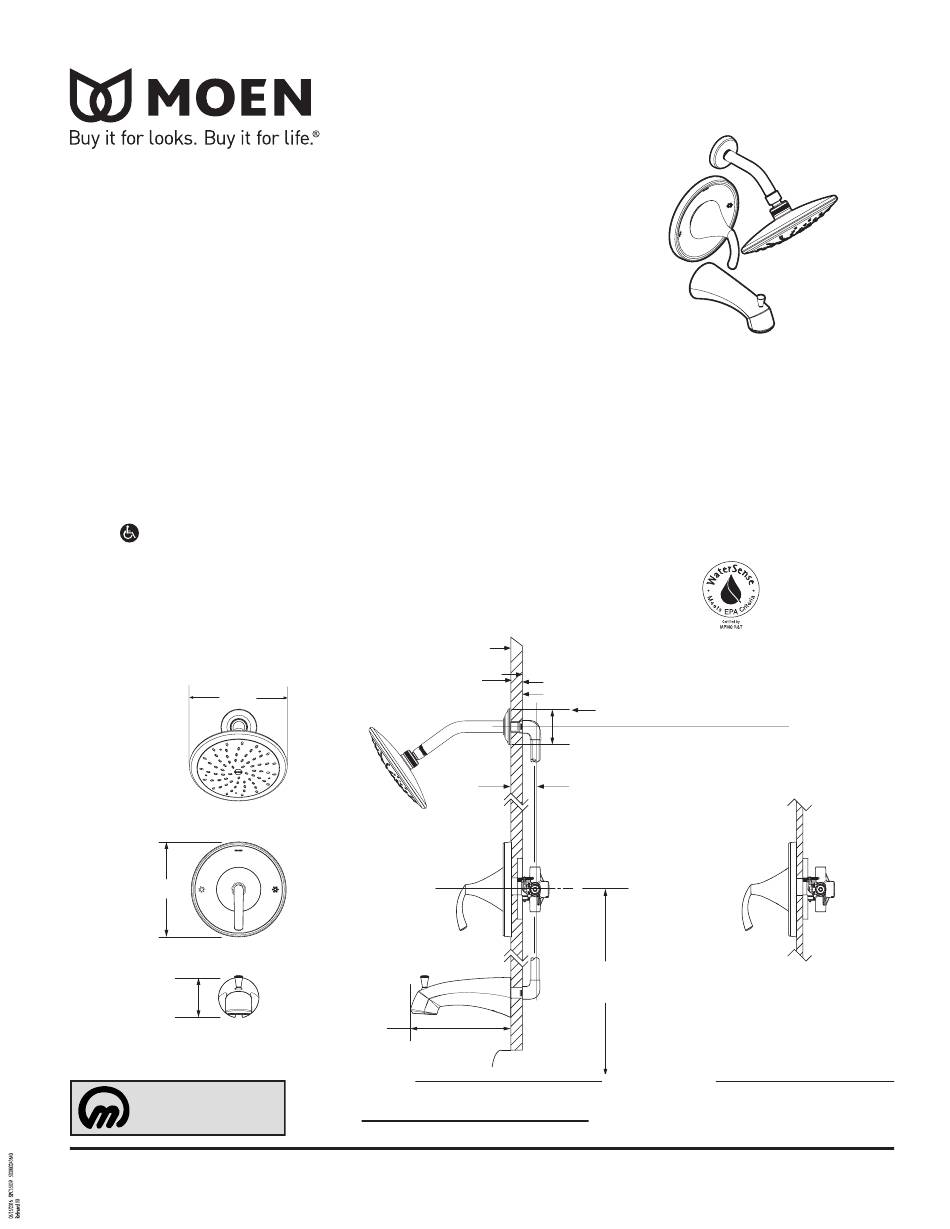

8"
(203mm)
3-1/2"
(89 mm)
2-15/16"
(75 mm)
M•pact System
5/16
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
7-9/16"
(189 mm)
THICK WALL APPLICATION
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
Specifications
GLYDE™
Single-Handle Tub/Shower Trim Kit
with Rainshower
Models: T2842EP series - shower trim only
T2843EP series - tub/shower trim
Valves:
62300 series
2500 series
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-5/8"
(66 mm)
2-1/2" MAX. (63mm)
L C
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB ONLY
or TUB/SHOWER
THIN WALL APPLICATION
www.moen.com
