DuBOIS 51023 Instruction Sheet

INSTRUCTION SHEET
Model No. 51023
3" Fence Flip Stop with 1/4" T-Bolt
Model No. 51034
3" Fence Flip Stop with 1/4" Hex Bolt
QUESTION...
1•847•780•6120
PACKAGING CONTENTS
Fence Flip Stop (one set)
TO USE
51023: This fence flip stop works with most brands of
Universal T-Tracks accepting 1/4" T-Bolts.
51034: This fence flip stop works with most brands of
1/4" T-Tracks accepting 1/4" hex bolts.
These Fence Flip Stops are extremely versatile and can
be used with or without a sacrificial board. In addition, the
flip arm can be moved from right to left to match your feed
direction requirements.

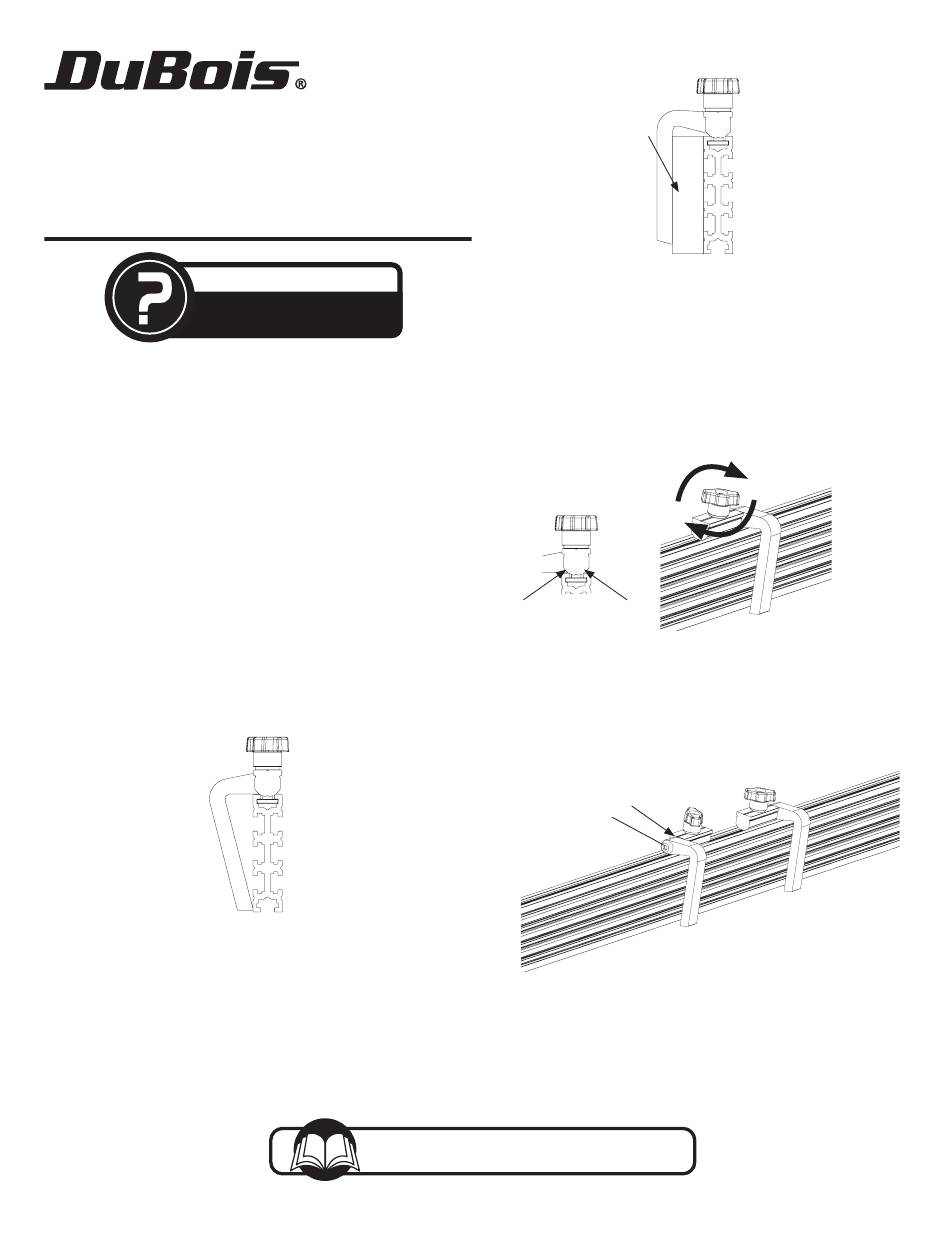

• When working with single wide multi track fences,
simply flip the arm down and use as an easily adjustable
stop. See Figure 1.
Figure 1
• When working with wider fences or using a sacrificial
board, the angle of the specially designed arm
accommodates for the extra 3/4" width and flips down.
No conversion or adjustment is required. See Figure 2.
Visit us on the web at www.
Put these instructions and the original sales invoice in a safe,
dry place for future reference.
Southern Technologies, LLC
Chicago, IL 60606
Figure 2
Sacrificial Wood Boards
Assembly
Slide the T-Bolt (51023) or hex bolt (51034) into the slot
on the top of the fence. Position the arm as needed and
tighten the knob. When clamped, the unique cylindrical
shape of the body wedges into the top of the T-Track.
This allows these flip stops to work with different size of
T-Tracks and eliminates slack or movement.
Figure 3
To Move the Flip Arm
Use a 5 mm hex wrench to remove the bolt and reposition
the flip arm assembly to the required side of the body.
Make sure nylon washer is between the flip arm and body
and replace bolt. See Figure 4.
Figure 4
Nylon Washer
Bolt
Flip Arm on
the Left
powertecproducts.com
Flip Arm on
the Right
22-0119
