Summary of Contents for MarineNow EX-4

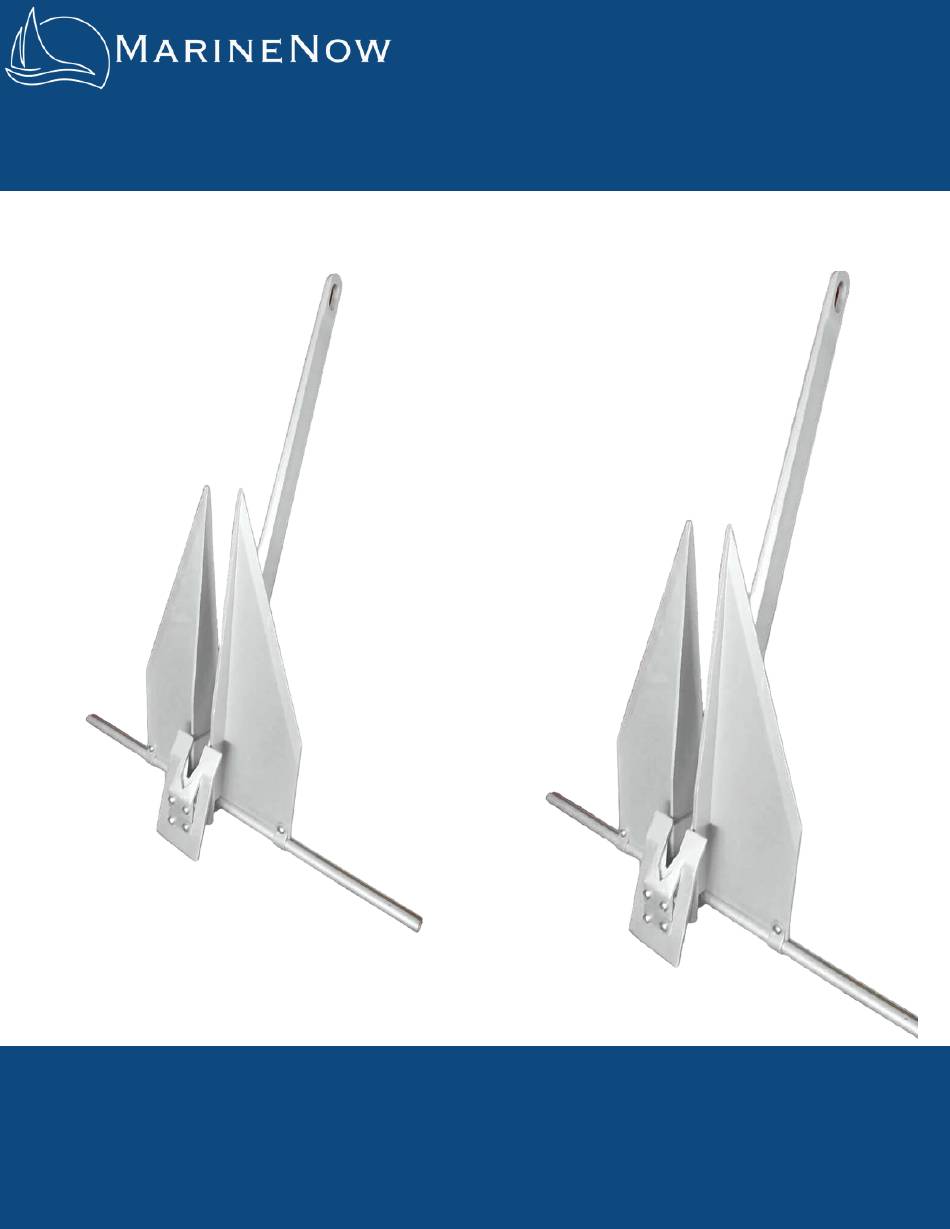

- Page 1 Aluminum Fluke Anchor EX-4 & EX-7 EX-4 EX-7 Assembly Instructions...
-
Page 2: Included Parts
EX-4 EX-7 Assembly Video Available on Amazon Listing Included Parts Crown (1) Stock (1) Fluke (2) Mud Palms (2) Shank (1) Nuts (8) Bolts (8) Tools Required: EX-4 EX-7 8 mm Wrench x 2 11 mm Wrench x 2 Phillips Head... - Page 3 Install mud palms on each side of the crown using the 8 nuts and bolts. Use 11 mm (EX-7) or 8 mm (EX-4) wrench to hold the nut for easier assembly. Step 2: Inserting the Shank Insert shank into the crown as shown.
- Page 4 Step 4:Loosen the Nuts on the Fluke Clips Loosen the nuts on the Fluke clips to make insertion of the stock easier. Step 5:Insert Stock Through the First Fluke Clip Insert stock through the First Fluke Clip as shown. Step 6 :Insert Stock through the Shank...
- Page 5 Step 6 :Insert Stock Through the Shank The MarineNow Fluke Anchor can be assembled with two different Fluke angles: 32 degrees or 45 degrees. 32° 45° Shank Angle of 32 degree is Shank Angle of 45 degrees ideal for sand and most...
- Page 6 Step 8: Center the Stock on the Crown and Flukes Center the stock on the crown and flukes. Step 9: Tighten the Fluke Clips to Secure the Stock. With an 11 mm (EX-7) or 8 mm (EX-4) wrench and screwdriver, tighten the Fluke clips to secure the stock.
