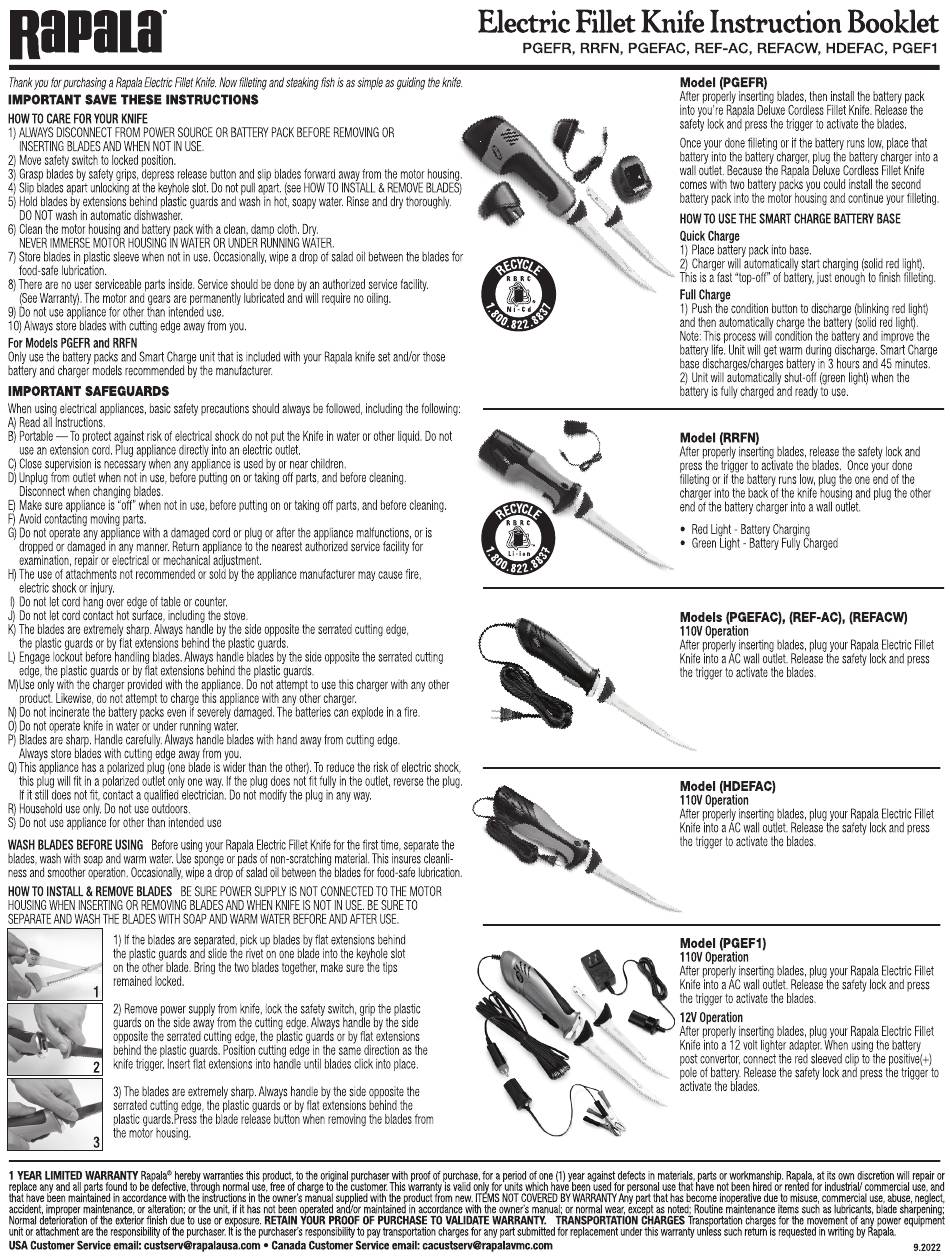

Rapala PGEFR Instruction Booklet

Rapma
Than k youforpurchasing a Rapala Electric Fillet K nife, Now filleting a nd steaking f ish isassimple a sguiding t heknife.
IMPORTANT SAVE THESE INSTRUCTIONS
HOWTO CARE FOR YOURKNIFE
1)ALWAY S DISCONNEC T FROM POWER S OURCE
INSERTING BLADESAND WHEN NOT IN USE
2)Move safety switch to ocked position
3)Grasp blades bysafety grips, d epress r elease b utton andslipblades forward away fromthemotor housing
4) Slipblades apart u nlocking atthekeyhole s lot.Donotpullapan(see HOW TOINSTALL & REMOVE BLADES)
5)Holdbadesbyextensions behind p asticguards andwash in hot,soapy waterRinse anddrythorough y .
DONO wash Inautomaticdishwasher.
6)Clean themotor housing a ndbattery packwitha clean, d ampclothDry
NEVERIMMERSEMOTORHOUSINGIN WATEROR UNDERRUNNING WATER
7)Store blades in plastic sleeve whennotInuseOccasionally,
food safe lubrication
8)There arenouserserviceab e partsinsideService should bedone byanauthorized service facility
(See Warranty). Themotor a ndgears arepermanently lubricated andWill r equire nooiling
9)Donotuseappliance forotherthanintended u se
10)Always store blades withcutting edge away fromyou
For Models PGEFRand RRFN
Only usethebattery packs andSmart C harge u nitthatis included w ithyourRapa a knifesetand/or t hose
battery andcharger m odels r ecommended
IMPORTANT SAFEGUARDS
When usingelectrical appliances, basic safety precautions shou d always befolowed, i ncluding t hefolowing:
A)Read allInstructions
B)Portable — Toprotect against r iskof electrical shockdonotputtheKnife inwaterorotherliquid. D onot
useanextension cord Plug appliance d irectly intoanelectric outlet.
C)Close supervision isnecessary whenanyappliance i s used byornearchildren
D)Unplug f romoutlet w hennotinuse,before putting onor taking offparts, a ndbefore cleaning
t Disconnec when changing b ades
E)Make sureappliance i s"off"whennotInuse,before putting on ortaking offparts, a ndbefore cleaning
F)Avoid contacting moving parts
G) Donotoperate anyappliance W ith a damaged c ordorplugor after theappliance m alfunctions, oris
dropped ordamaged I nanymanner R eturn appliance to thenearest authorized service f acility for
examination , repair o r electr'cal or mechanical adjustment
H)Theuseofattachments notrecommended
electric shock or injury
I)Donotletcordhang over e dge oftableor counter
J) Donotletcordcontact h otsurface, including t hestove
K)Theblades areextremely sharp. Always handle bythesideopposite t heserrated cutting edge,
theplastic guards or byflat extensions behind thepasticguards
L)Engage lockout before handling blades. Always handle b ades bythesideopposite t heserrated c utting
edge, t hep asticguards or byflatextensions behind theplastic guards.
M)Use o nlywiththecharger p rovided w iththeappliance Donotattempt to usethischarger withanyother
productLikewise, donotattempt t ocharge thisappliance w ithanyother c harger.
N)Donotincinerate thebattery packs evenif severely damaged. Thebatteries canexplode i n a fire
O) Donotoperate knifeinwater or under running water.
P)BadesaresharpHandle careful y Always handle blades withhand away fromcutting edge
Always store blades With cutting edge away fromyou
Q) Thisappliance h asa polarized p lug(one blade iswider t hantheother)Toreduce t heriskof electric shock,
thisplugwillfit ina poarized outlet o nlyoneway.Ifthepug does notfit fuly intheoutlet, r everse t heplug
Ifit stilldoesnotfit,contact a qualified e lectrician Donotmodify theplugInanyway
R)Househol d useonlyDonotuseoutdoors
S)Donotuseappliance f orother t hanintended u se
WASH BLADES B EFORE USINGBefore u sing yourRapala E lectric F illet K nife forthefirsttime, s eparate t he
blades , wash withsoap andwarm water. Use sponge o rpads of nonscratching material. This insures c leanli-
ness andsmoother operation Occasionally, wipe a dropofsalad oilbetween t heblades f orfood-safe l ubrication
HOWTO INSTALL & REMOVE BLADES BE SUREPOWERSUPPLYIS NOT CONNECTED TO THEMOTOR
HOUSING WHEN INSERTING OR REMOVING BLADESAND WHEN KNIFEIS NOT IN USE BE SURETO
E SEPARAT ANDWASH THEBLADES WITH SOAP ANDWARMWATER BEFORE ANDAFTER USE.
1) Iftheblades areseparated, pickup blades byflatextensions behind
theplastic guards andslidetherivet o noneblade intothekeyho e slot
ontheotherbladeBring thetwoblades together, make surethetips
remained locked
2) Remove power s upp y fromknife,ockthesafety switch, griptheplastic
guards ontheSide away fromthecutting edgeAlways handle bytheSide
opposite t heserrated cutting edge, theplastic guards or byflatextensions
behind theplastic guardsPosition c utting edge in thesame direction a sthe
knife triggerInsert flat extensions intohandle until b lades clickintopace
2
3)Theb ades areextremely sharpAlways handle bythesideopposite t he
serrated c utting edge, t heplastic guards or byflat extensions behind the
plastic guards Press theblade release b utton whenremoving theblades from
themotor housing
3
1 YEARLIMITEDWARRANTY Rapalae h ereby warranties t hisproducttotheoriginal p urchaser withproof o f purchase, fora period of one(1)yearagainst d efects in materials, parts orworkmanship. Rapala, at itsowndiscretion willrepair or
replace anyandall partsfound to be defective, throughnormal use,freeofcharge to thecustomer. ThiswarranW is valid onlyforunitswhichhavebeenusedforpersonal usethathavenotbeen hiredorrented forindustrial/ commercial use,and
tlat have been maintained inaccordance with theinstructions
accidentimproper m aintenance, oralteration; ortheunit,if it hasnotbeen operated a nd/ormaintained i naccordance withtheowner's manual; or normal wear, e xcept a s noted; R outine maintenance itemssuchas lubricants, blade sharpening;
Normal d eterioration of theexterior f inishdueto useorexposure. RETAIN YOURPROOF OFPURCHASE T OVALIDATE WARRANTY.TRANSPORTATION
unitorattachment aretheresponsibility ofthepurchaser Itis thepurchaser's responsibility to paytransportation charges f oranypartsubmitted f orreplacement under thiswarranty unless suchreturn ISrequested i nwritingbyRapala.
USACustomer Service email: custserv@rapalausa.com• CanadaCustomer Service email: cacustserv@rapalavmc.com
ORBATTERY PACK BEFORE REMOVING
wipea drop of salad oilbetween t heblades for
bythemanufacturer
or soldbytheappliance m anufacturer maycause fire,
intheowner's manual supplied withtheproduct from new. I TEMS N OT C OVERED
Electric
PGEFR,
OR
*tcycze
*tcycze
R BRC
00.822.88
BY WARRANTY
Fillet Knife Instruction
RRFN, PGEFAC, REF-AC,
Model (PGEFR)
After properly Inserting b lades, thenInstal t hebattery pack
ntoyou're Rapala D eluxe Cordless Fillet K nifeRelease the
safetyockandpress thetrigger t oactivate theblades.
Once yourdone filleting orif thebattery runslow, p acethat
battery intothebattery charger, plug thebattery charger i ntoa
wal outletBecause theRapala D eluxe Cordless Fillet K nife
comes withtwobattery packs youcouldInstall thesecond
battery packintothemotor housing a ndcontinue y ourfilleting
HOWTO USETHE SMART CHARGEBATTERYBASE
QuickCharge
I) Place battery packintobase
2) Charger willautomatically startcharging ( solid redlight)
Thisisa fast"top-off" o fbattery, just enough t o finish filleting
FullCharge
1) Push thecondition b utton todischarge ( blinking r edlight)
andthenautomatically charge thebattery (solid redlight)
Note: Thisprocess W ill c ondition t hebattery and•mprove the
batteryIfe Unit w illgetwarm during discharge. Smart C harge
base discharges/charges
2) Unitwillautomatical y shut-off ( green light) w hen the
battery isfullycharged a ndready to use.
Model (RRFN)
After properly inserting b lades, release t hesafety ockand
press thetrigger t oactivate thebladesOnce yourdone
filleting or ifthebattery runsow,plugtheoneendofthe
charger i ntotheback oftheknife housing andplug theother
endofthebattery charger i ntoa wal outlet
• RedLight Battery Charging
• Green Light Battery Fully Charged
Models (PGEFAC), (REF-AC), (REFACW)
1IOVOperation
After properly Inserting b lades, plugyourRapala E lectric Fillet
Knife intoa ACwalloutletRelease thesafetyockandpress
thetrigger t oactivate theblades.
Model (HDEFAC)
1IOVOperation
After properly inserting b lades, plugyourRapala E lectric Fillet
Knife intoa ACwalloutletRelease thesafetyockandpress
thetrigger t oactivate theblades
Model (PGEFI)
1IOVOperation
After properly Inserting b lades, plugyourRapala E lectric Fillet
Knife intoa ACwalloutletRelease thesafetyockandpress
thetrigger t oactivate theblades.
12VOperation
After properly inserting b lades, plugyourRapala E lectric Fillet
Knife intoa 12 volt ighter a dapter W hen using thebattery
postconvertor, connect theredsleeved cliptothepositive(+)
pole of battery. Release thesafety lock andpress thetrigger t o
activate the blades
Anypart t hathas become inoperative
CHARGES Transportation charges f orthemovement ofany power e quipment
Booklet
REFACW, HDEFAC, PGEFI
battery in 3 hours and45 minutes
due tomisuse, commercial use, abuse, neglect,
9.2022
